GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS136 ; (9110- )GS130,LS136,YS130..DLX,DLXA,STD

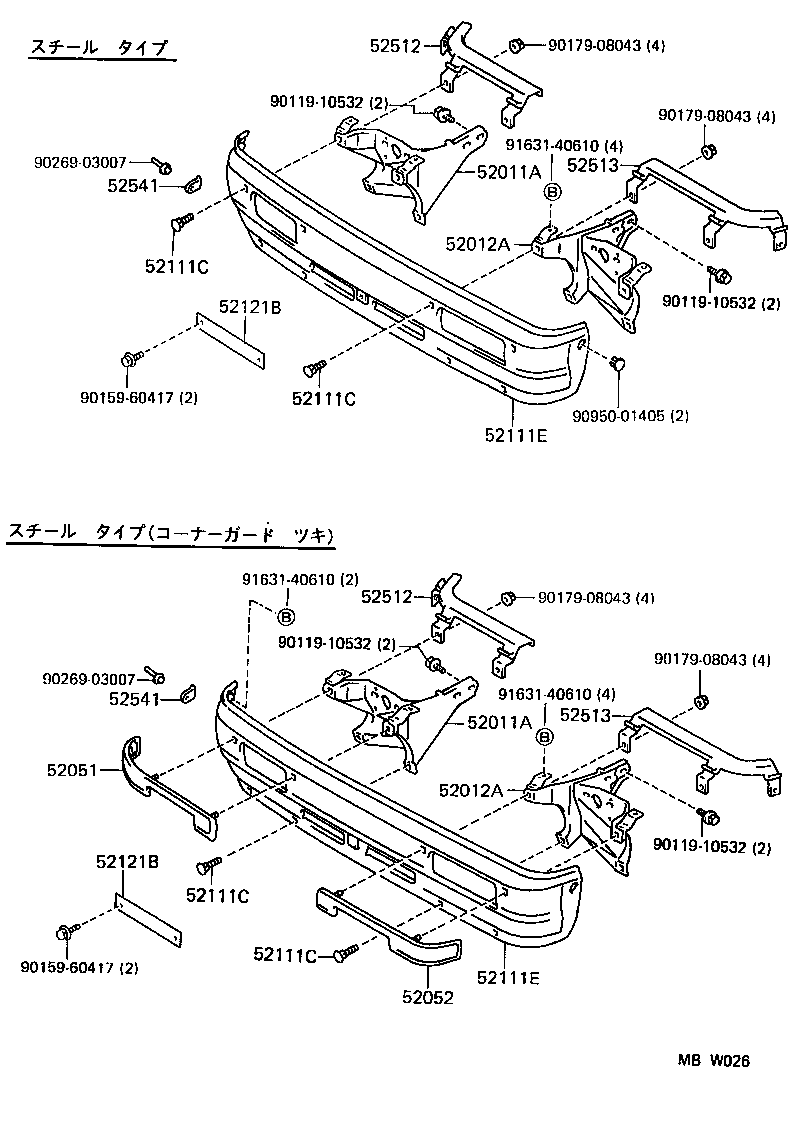

Click highlighted areas on diagram

diagram 52011A 52011A 52012A 52012A 52051 52052 52111C 52111C 52111C 52111C 52111E 52111E 52121B 52121B 52512 52512 52513 52513 52541 52541 9011910532 9011910532 9011910532 9011910532 9015960417 9015960417 9017908043 9017908043 9017908043 9017908043 9026903007 9026903007 9095001405 9163140610 9163140610 9163140610
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30150

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52011-30150

GS136;GS130,LS136..DLX,STD

 1
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30150

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52011-30150

GS136;GS130,LS136..DLX,STD

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30160

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52012-30160

GS136;GS130,LS136..DLX,STD

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30160

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52012-30160

GS136;GS130,LS136..DLX,STD

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

GS130,136..STD

 8
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

GS130,136..STD

 8
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

GS130,136..STD

 8
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

GS130,136..STD

 8
52111E - BAR, FRONT BUMPER
52111-30180

GS136;GS130,LS136..DLX,STD

 1
52111-30180

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52111E - BAR, FRONT BUMPER
52111-30180

GS136;GS130,LS136..DLX,STD

 1
52111-30180

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-30080

GS136;GS130,LS136..DLX,STD

 1
52121-30080

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-30080

GS136;GS130,LS136..DLX,STD

 1
52121-30080

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52512 - FILLER, FRONT BUMPER, RH
52512-30030

GS136;GS130,LS136..DLX,STD

 1
52512-30030

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52512 - FILLER, FRONT BUMPER, RH
52512-30030

GS136;GS130,LS136..DLX,STD

 1
52512-30030

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52513 - FILLER, FRONT BUMPER, LH
52513-30030

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52513-30030

GS136;GS130,LS136..DLX,STD

 1
52513 - FILLER, FRONT BUMPER, LH
52513-30030

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
52513-30030

GS136;GS130,LS136..DLX,STD

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30030

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 2
52541-30030

GS136;GS130,LS136..DLX,STD

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30030

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 2
52541-30030

GS136;GS130,LS136..DLX,STD

 2
Common parts
90119-10532
90159-60417
90179-08043
90269-03007
90950-01405
91631-40610
