GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

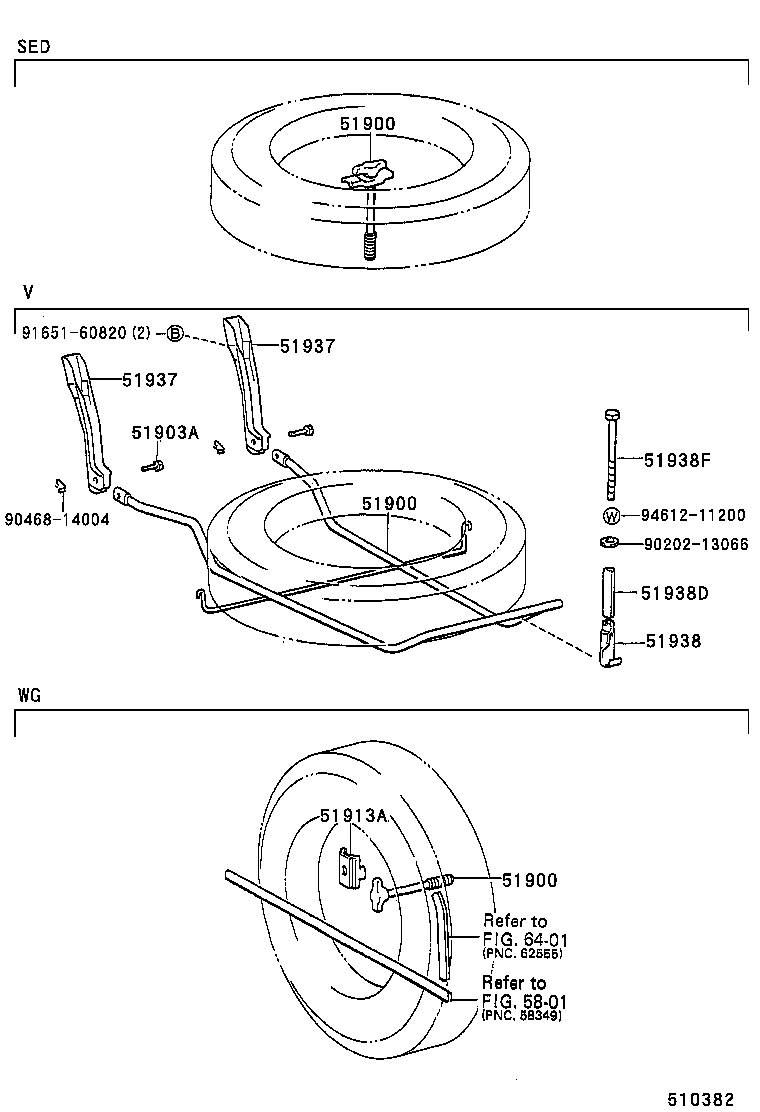

Click highlighted areas on diagram

diagram 51900 51900 51900 51903A 51913A 51937 51937 51938 51938D 51938F 9020213066 9046814004 9165160820 9461211200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-91706

GS136,LS136

 1
51900 - CARRIER ASSY, SPARE WHEEL
51903-91706

GS136,LS136

 1
51900 - CARRIER ASSY, SPARE WHEEL
51903-91706

GS136,LS136

 1
51903A - PIN, W/HOLE(FOR SPARE WHEEL CARRIER HANDLE HANGER SETTI
90240-06010

GS136,LS136

 2
51937 - STAY, SPARE WHEEL CARRIER HINGE
51904-91702

GS136,LS136

 2
51937 - STAY, SPARE WHEEL CARRIER HINGE
51904-91702

GS136,LS136

 2
51938 - LOCK, SPARE WHEEL CARRIER
51938-28030

GS136,LS136

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-16011

GS136,LS136

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90101-12108

GS136,LS136

 1
Common parts
90202-13066
90468-14004
91651-60820
94612-11200
