GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS136,LS136

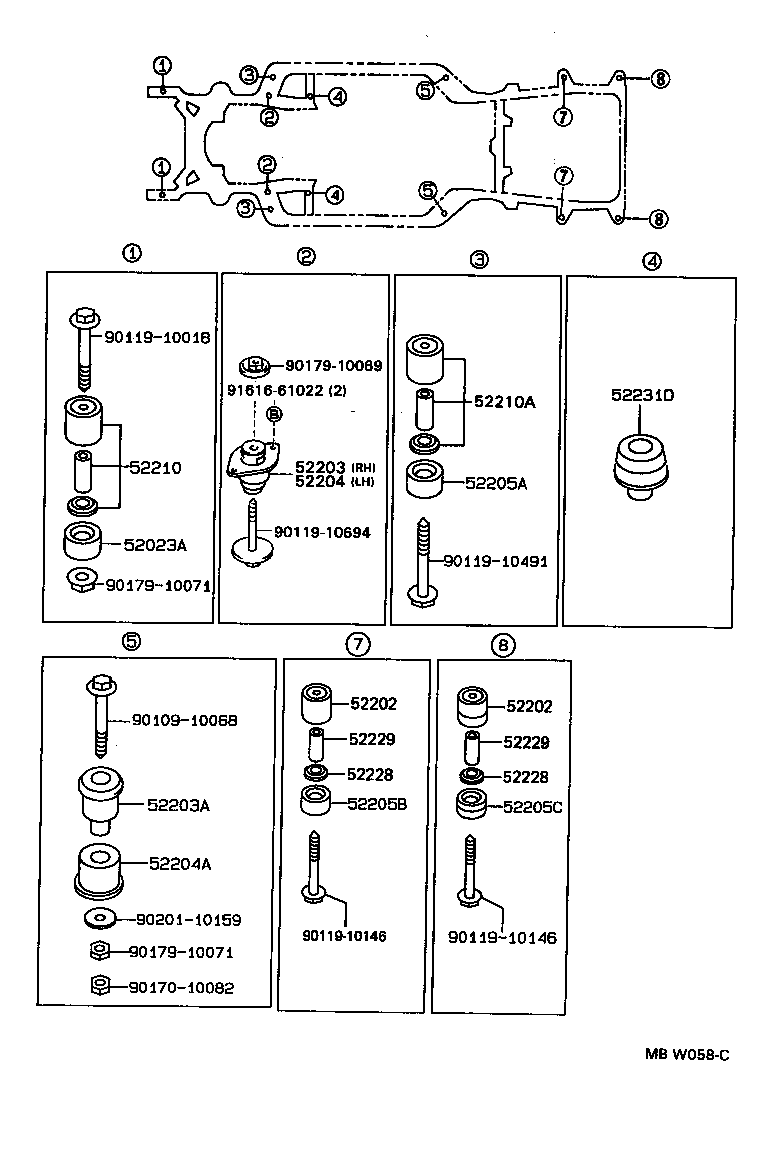

Click highlighted areas on diagram

diagram 52023A 52202 52202 52203 52203A 52204 52204A 52205A 52205B 52205C 52210 52210A 52228 52228 52229 52229 52231D 9010910068 9011910018 9011910146 9011910146 9011910491 9011910694 9017010082 9017910069 9017910071 9017910071 9020110159 9161661022
Part # Description Qty Price
52023A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER
52023-30030

GS13#,JZS13#,LS13#

 2
52023-30030

GS13#,JZS13#,LS13#,YS130

 2
52202 - CUSHION SUB-ASSY, BODY MOUNTING, UPPER
52202-91501

GS136,LS136

 4
52202 - CUSHION SUB-ASSY, BODY MOUNTING, UPPER
52202-91501

GS136,LS136

 4
52203 - CUSHION SUB-ASSY, REAR FRAME
52203-30060

GS13#,JZS13#,LS13#

 1
52203-30060

GS13#,JZS13#,LS13#,YS130

 1
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-91701

GS136,LS136

 2
52204 - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52204-30040

GS13#,JZS13#,LS13#,YS130

 1
52204-30040

GS13#,JZS13#,LS13#

 1
52204A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER
52204-91701

GS136,LS136

 2
52205A - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52023-30030

GS13#,JZS13#,LS13#,YS130

 2
52023-30030

GS13#,JZS13#,LS13#

 2
52205B - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-91702

GS136,LS136

 2
52205C - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-91702

GS136,LS136

 2
52210 - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30010

GS13#,JZS131,133,135,LS13#,YS130..SED,V

 2
52210A - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30020

GS13#,JZS13#,LS13#,YS130

 2
52210-30020

GS13#,JZS13#,LS13#

 2
52228 - HOLDER, BODY MOUNT BOLT SPACER, NO.2
52228-30020

GS136,LS136

 4
52228 - HOLDER, BODY MOUNT BOLT SPACER, NO.2
52228-30020

GS136,LS136

 4
52229 - SPACER, BODY MOUNTING
52229-91501

GS136,LS136

 4
52229 - SPACER, BODY MOUNTING
52229-91501

GS136,LS136

 4
52231D - CUSHION, BODY MOUNTING, REAR UPPER
52231-30040

GS13#,JZS13#,LS13#

 2
52231-30040

GS13#,JZS13#,LS13#,YS130

 2
Common parts
90109-10068
90119-10018
90119-10146
90119-10491
90119-10694
90170-10082
90179-10069
90179-10071
90201-10159
91616-61022
