GS136V-AXJRK (1991)
Toyota Crown
(9110- )GS136,LS136

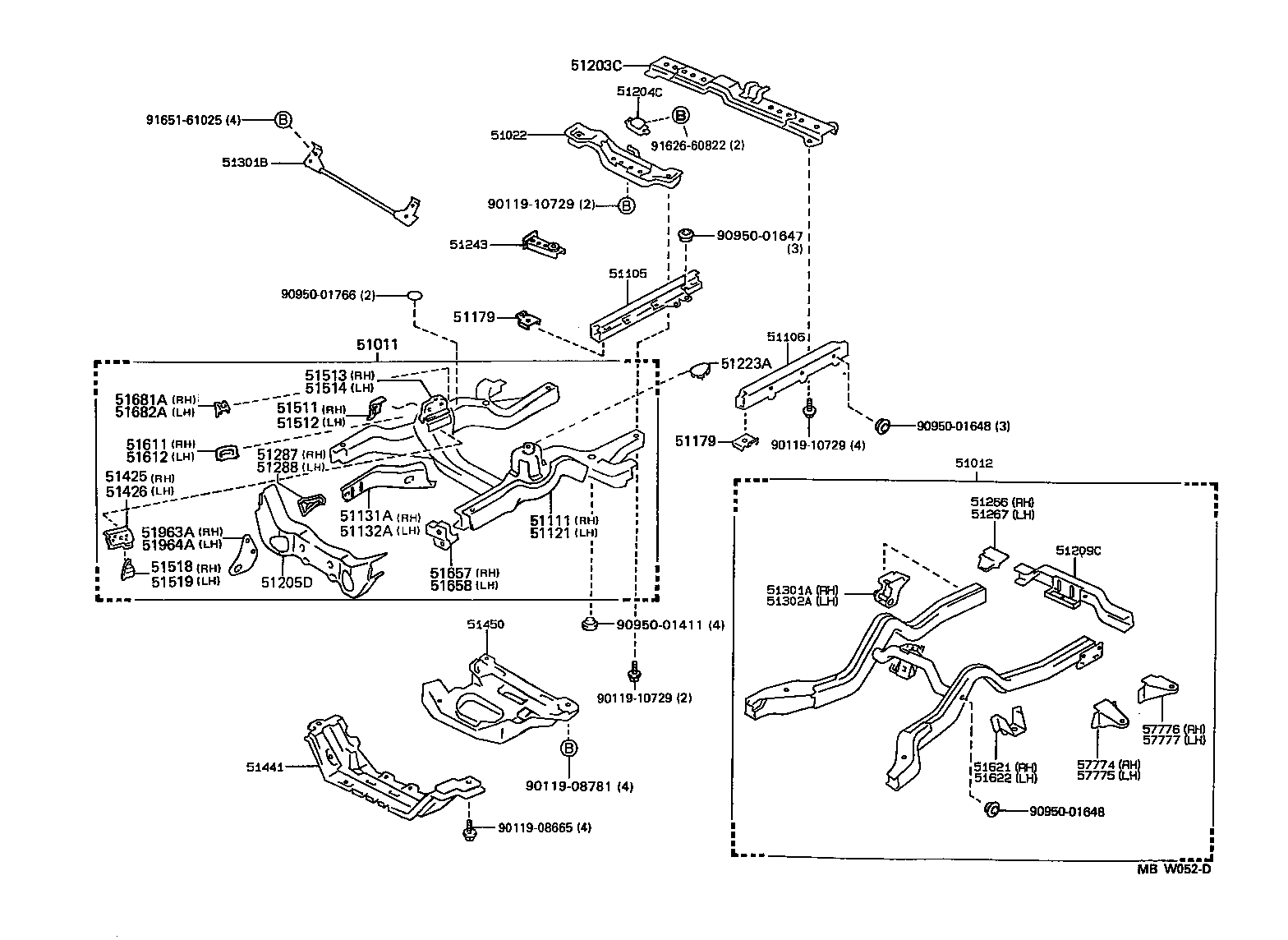

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51011 - RAIL SUB-ASSY, FRONT FRAME | ||||
| 51011-30440 |
GS13#,JZS130,131,133..HTWC,TWC |
1 | ||
| 51012 - RAIL SUB-ASSY, REAR FRAME | ||||
| 51012-91705 |
GS136,LS136 |
1 | ||
| 51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57255-30010 |
GS130,136..4H |
1 | ||
| 51105 - RAIL SUB-ASSY, CENTER FRAME, RH | ||||
| 51105-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51105-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 51106 - RAIL SUB-ASSY, CENTER FRAME, LH | ||||
| 51106-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 51106-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51111 - RAIL, FRONT FRAME, NO.1 RH | ||||
| 51111-30101 |
GS13#,JZS13#,LS13# |
1 | ||
| 51111-30101 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51121 - RAIL, FRONT FRAME, NO.1 LH | ||||
| 51121-30101 |
GS13#,JZS13#,LS13# |
1 | ||
| 51121-30101 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51131A - RAIL, FRONT FRAME, NO.5 RH | ||||
| 51131-30041 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51131-30041 |
GS13#,JZS13#,LS13# |
1 | ||
| 51132A - RAIL, FRONT FRAME, NO.5 LH | ||||
| 51132-30041 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51132-30041 |
GS13#,JZS13#,LS13# |
1 | ||
| 51179 - SUPPORT, JACK UP | ||||
| 51179-30010 |
GS136,LS136 |
2 | ||
| 51179 - SUPPORT, JACK UP | ||||
| 51179-30010 |
GS136,LS136 |
2 | ||
| 51203C - CROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT | ||||
| 51203-30090 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 51203-30090 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 51205D - SUPPORT SUB-ASSY, STRUT BAR | ||||
| 51205-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-30020 |
GS136,LS136 |
1 | ||
| 51223A - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-30010 |
LS130,136,YS130 |
2 | ||
| 51223-30010 |
LS130,136 |
2 | ||
| 51243 - MEMBER, ANTI SHAKE | ||||
| 51243-30030 |
GS13#,JZS13#,LS13# |
2 | ||
| 51243-30030 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 51266 - GUSSET, FRAME CROSSMEMBER, RH | ||||
| 51266-91503 |
GS136,LS136 |
1 | ||
| 51267 - GUSSET, FRAME CROSSMEMBER, LH | ||||
| 51267-91503 |
GS136,LS136 |
1 | ||
| 51287 - GUSSET, STRUT BAR BRACKET, LOWER RH | ||||
| 51287-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51287-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 51288 - GUSSET, STRUT BAR BRACKET, LOWER LH | ||||
| 51288-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 51288-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51301A - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 51301-31010 |
GS136,LS136 |
1 | ||
| 51301B - ROD SUB-ASSY, FRONT FRAME | ||||
| 51301-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 51302A - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 51302-31010 |
GS136,LS136 |
1 | ||
| 51425 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH | ||||
| 51425-30140 |
GS13#,JZS13#..HTWC,TWC |
1 | ||
| 51426 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH | ||||
| 51426-30140 |
GS13#,JZS13#..HTWC,TWC |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-30090 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 51441-30090 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 51511 - GUSSET, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51511-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51511-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 51512 - GUSSET, UPPER CONTROL ARM SUPPORT, LH | ||||
| 51512-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51512-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 51513 - SUPPORT, UPPER CONTROL ARM, RH | ||||
| 51513-30070 |
GS13#,JZS13#,LS13# |
1 | ||
| 51513-30070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51514 - SUPPORT, UPPER CONTROL ARM, LH | ||||
| 51514-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 51514-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51518 - BRACKET, LOWER ARM, RH | ||||
| 51518-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 51518-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51519 - BRACKET, LOWER ARM, LH | ||||
| 51519-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 51519-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51611 - STOPPER, FRONT SUSPENSION BOUND, RH | ||||
| 51611-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51611-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 51612 - STOPPER, FRONT SUSPENSION BOUND, LH | ||||
| 51612-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51621 - BRACKET, REAR BOUND STOPPER, RH | ||||
| 51621-31030 |
GS136,LS136 |
1 | ||
| 51622 - BRACKET, REAR BOUND STOPPER, LH | ||||
| 51622-31030 |
GS136,LS136 |
1 | ||
| 51657 - BRACKET, FRONT BUMPER ARM, RH | ||||
| 51657-30011 |
GS13#,JZS13#,LS13# |
1 | ||
| 51657-30011 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51658 - BRACKET, FRONT BUMPER ARM, LH | ||||
| 51658-30011 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51658-30011 |
GS13#,JZS13#,LS13# |
1 | ||
| 51681A - BRACKET, FLEXIBLE HOSE | ||||
| 51681-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51681-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 51682A - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 51682-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51963A - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 51963-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 51964A - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 51964-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57774 - BRACKET, REAR FRAME REAR BODY MOUNTING, NO.7 RH | ||||
| 57774-31010 |
GS136,LS136 |
1 | ||
| 57775 - BRACKET, REAR FRAME REAR BODY MOUNTING, NO.7 LH | ||||
| 57775-31010 |
GS136,LS136 |
1 | ||
| 57776 - BRACKET, REAR FRAME REAR BODY MOUNTING, NO.8 RH | ||||
| 57776-91503 |
GS136,LS136 |
1 | ||
| 57777 - BRACKET, REAR FRAME REAR BODY MOUNTING, NO.8 LH | ||||
| 57777-91503 |
GS136,LS136 |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08781 | ||||
| 90119-10729 | ||||
| 90950-01411 | ||||
| 90950-01647 | ||||
| 90950-01648 | ||||
| 90950-01766 | ||||
| 91626-60822 | ||||
| 91651-61025 | ||||
