GS136V-AXJRK (1991)
Toyota Crown

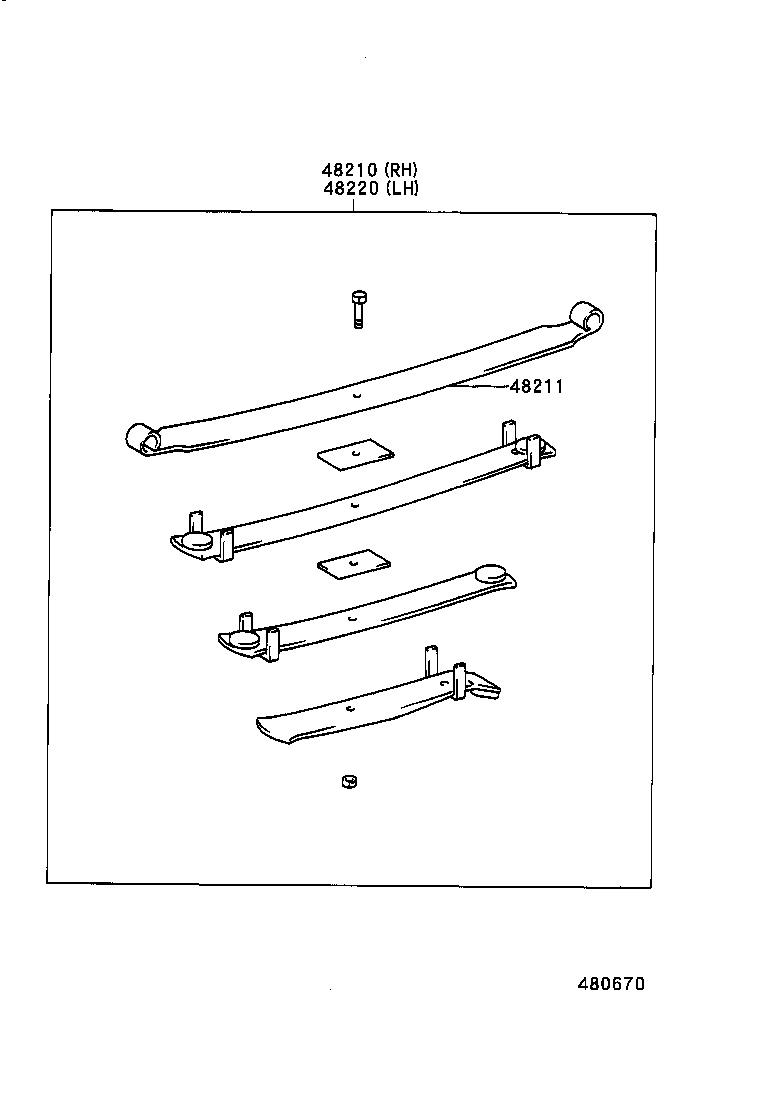

ILLUST NO. 2 OF 2(9110- )GS136,LS136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-31110 |
GS136,LS136 4枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-31110 |
GS136,LS136 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-31110 |
GS136,LS136 4枚ﾘｰﾌ |
1 | ||

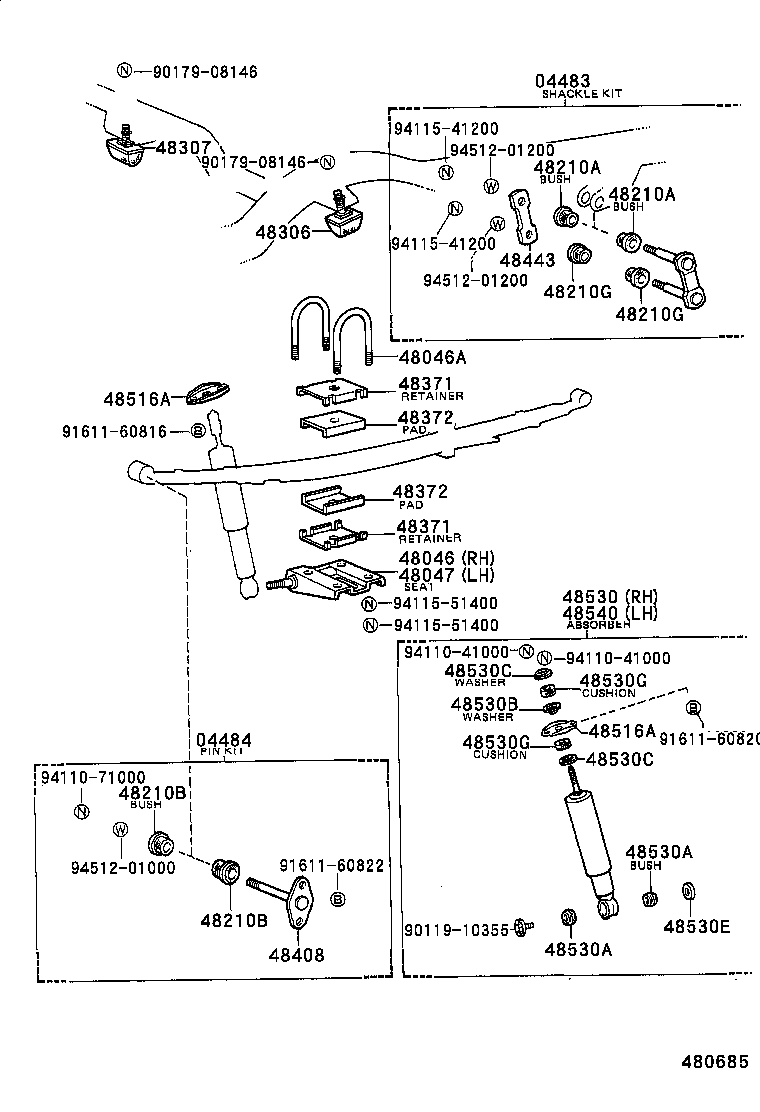

ILLUST NO. 1 OF 2(9110- )GS136,LS136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-30011 |
GS136,LS136 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-31010 |
GS136,LS136 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-30030 |
GS136,LS136 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14208 |
GS136,LS136 長さ=169 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-30030 |
GS136,LS136 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15039 |
GS136,LS136 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15039 |
GS136,LS136 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13032 |
GS136,LS136 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13032 |
GS136,LS136 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15039 |
GS136,LS136 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15039 |
GS136,LS136 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-30130 |
GS136,LS136 |
2 | ||
| 48307 - BUMPER SUB-ASSY, DIFFERENTIAL CARRIER | ||||
| 48307-30020 |
GS136,LS136 |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-30010 |
GS136,LS136 |
4 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-30010 |
GS136,LS136 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-30010 |
GS136,LS136 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-30010 |
GS136,LS136 |
4 | ||
| 48408 - PIN SUB-ASSY, SPRING BRACKET | ||||
| 48408-31010 |
GS136,LS136 |
2 | ||
| 48443 - PLATE, SPRING SHACKLE, OUTER | ||||
| 48443-30010 |
GS136,LS136 |
2 | ||
| 48516A - BRACKET, REAR SHOCK ABSORBER, UPPER | ||||
| 48516-30040 |
GS136,LS136 |
2 | ||
| 48516A - BRACKET, REAR SHOCK ABSORBER, UPPER | ||||
| 48516-30040 |
GS136,LS136 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80166 |
GS136,LS136 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
GS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
GS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 90948-02007 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
GS130,136,JZS130,LS130,136 |
4 | ||
| 90948-02002 |
GS130,136,JZS130,LS130,136,YS130 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
GS130,136,JZS130,LS130,136 |
4 | ||
| 90948-02002 |
GS130,136,JZS130,LS130,136,YS130 |
4 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
GS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
GS136,LS130,136 下側 |
2 | ||
| 90948-01003 |
GS136,LS130,136 上側 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
GS136,LS130,136 下側 |
2 | ||
| 90948-01003 |
GS136,LS130,136 上側 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80166 |
GS136,LS136 |
1 | ||
| Common parts | ||||
| 90119-10355 | ||||
| 90179-08146 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 94110-41000 | ||||
| 94110-71000 | ||||
| 94115-41200 | ||||
| 94115-51400 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
