GS136V-AXJRK (1991)
Toyota Crown

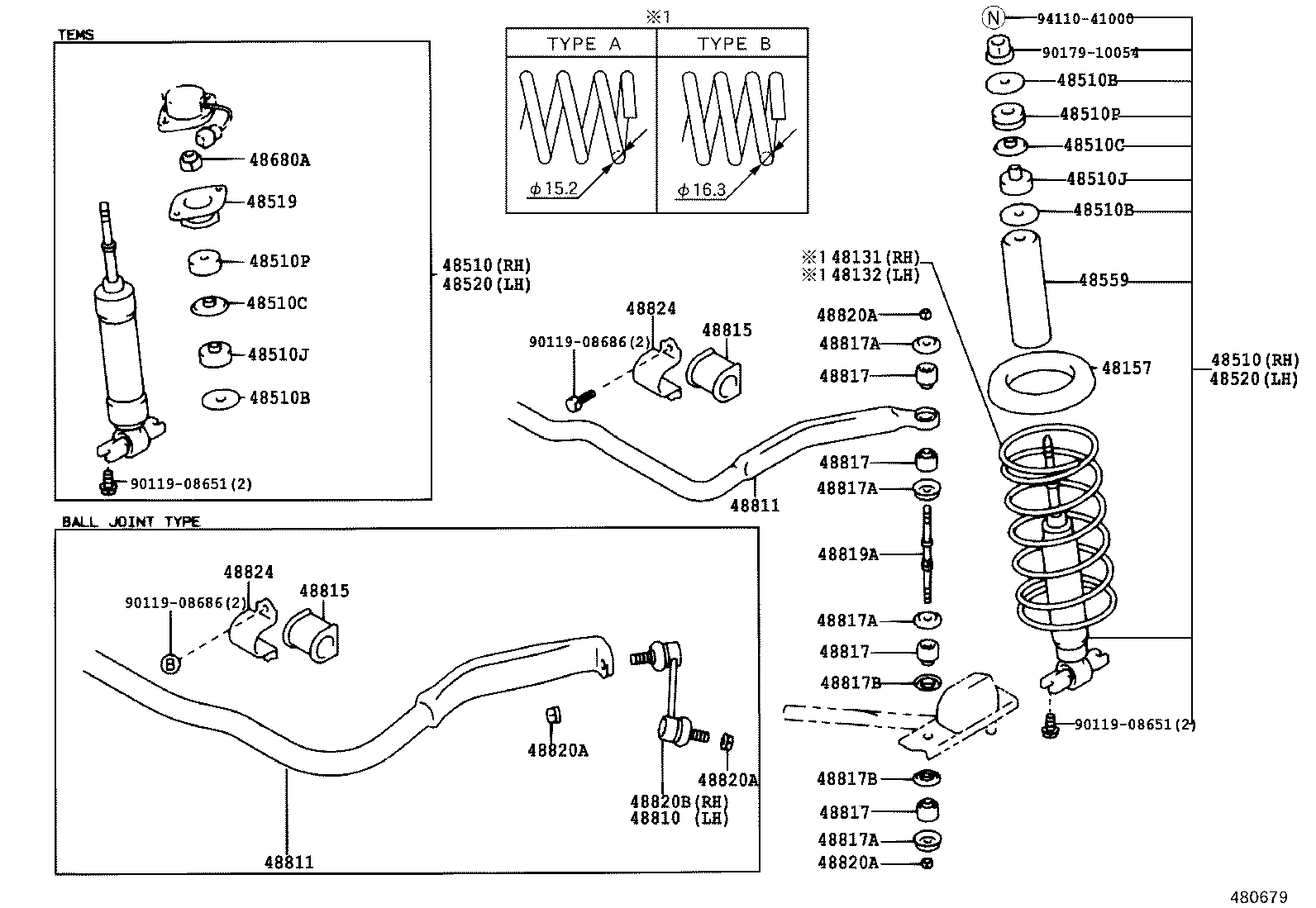

ILLUST NO. 1 OF 2(9110- )GS13#,JZS130,131,133,LS13#,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-30610 |
GS13#..HTWC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-30610 |
GS13#..HTWC |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-30030 |
GS13#,JZS130,131,133,LS13# |
2 | ||
| 48157-30030 |
GS13#,JZS130,131,133,LS13#,YS130 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39065 |
GS136,LS136 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39065 |
GS136,LS136 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02072 |
GS13#,JZS130,131,133,LS13# 下側 |
2 | ||
| 90948-02116 |
GS13#,JZS130,131,133,LS13# 上側 |
2 | ||
| 90948-02072 |
GS13#,JZS130,131,133,LS13#,YS130 下側 |
2 | ||
| 90948-02116 |
GS13#,JZS130,131,133,LS13#,YS130 上側 |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02072 |
GS13#,JZS130,131,133,LS13# 下側 |
2 | ||
| 90948-02116 |
GS13#,JZS130,131,133,LS13# 上側 |
2 | ||
| 90948-02072 |
GS13#,JZS130,131,133,LS13#,YS130 下側 |
2 | ||
| 90948-02116 |
GS13#,JZS130,131,133,LS13#,YS130 上側 |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02072 |
GS13#,JZS130,131,133,LS13# 下側 |
2 | ||
| 90948-02116 |
GS13#,JZS130,131,133,LS13# 上側 |
2 | ||
| 90948-02072 |
GS13#,JZS130,131,133,LS13#,YS130 下側 |
2 | ||
| 90948-02116 |
GS13#,JZS130,131,133,LS13#,YS130 上側 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02092 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 90948-02092 |
GS13#,JZS13#,LS13# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02092 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 90948-02092 |
GS13#,JZS13#,LS13# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01038 |
GS13#,JZS130,131,133,LS13#,YS130 |
2 | ||
| 90948-01038 |
GS13#,JZS130,131,133,LS13# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01038 |
GS13#,JZS130,131,133,LS13#,YS130 |
2 | ||
| 90948-01038 |
GS13#,JZS130,131,133,LS13# |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90948-01037 |
GS13#,JZS130,131,133,LS13#,YS130 |
2 | ||
| 90948-01037 |
GS13#,JZS130,131,133,LS13# |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90948-01037 |
GS13#,JZS130,131,133,LS13#,YS130 |
2 | ||
| 90948-01037 |
GS13#,JZS130,131,133,LS13# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39065 |
GS136,LS136 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39065 |
GS136,LS136 |
1 | ||
| 48559 - COVER, SHOCK ABSORBER, DUST | ||||
| 48559-30020 |
GS13#,JZS130,131,133,LS13#,YS130 |
2 | ||
| 48559-30020 |
GS13#,JZS130,131,133,LS13# |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30030 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30240 |
GS136,LS136,YS130;GS130..SDX..TWLPG |
1 | ||
| 48811-30270 |
GS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48811-30240 |
GS136,LS136 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30240 |
GS136,LS136,YS130;GS130..SDX..TWLPG |
1 | ||
| 48811-30270 |
GS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48811-30240 |
GS136,LS136 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30250 |
GS136,LS136 |
2 | ||
| 48815-30250 |
GS136,LS136,YS130;GS130..SDX..TWLPG |
2 | ||
| 48815-30280 |
GS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30250 |
GS136,LS136 |
2 | ||
| 48815-30250 |
GS136,LS136,YS130;GS130..SDX..TWLPG |
2 | ||
| 48815-30280 |
GS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
GS136,LS136 |
8 | ||
| 48817-30020 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
GS136,LS136 |
8 | ||
| 48817-30020 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
GS136,LS136 |
8 | ||
| 48817-30020 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
GS136,LS136 |
8 | ||
| 48817-30020 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 90948-02032 |
GS136,LS136 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 90948-02032 |
GS136,LS136 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 90948-02032 |
GS136,LS136 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
8 | ||
| 90948-02032 |
GS136,LS136 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
4 | ||
| 90948-02015 |
GS136,LS136 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
4 | ||
| 90948-02015 |
GS136,LS136 |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-30020 |
GS136,LS136 |
2 | ||
| 48819-30020 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-08034 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
4 | ||
| 90179-08034 |
GS136,LS136 |
4 | ||
| 90179-12047 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-08034 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
4 | ||
| 90179-08034 |
GS136,LS136 |
4 | ||
| 90179-12047 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-08034 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
4 | ||
| 90179-08034 |
GS136,LS136 |
4 | ||
| 90179-12047 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-08034 |
GS136;GS130,LS136,YS130..DSL,LPEFI,TWLPG |
4 | ||
| 90179-08034 |
GS136,LS136 |
4 | ||
| 90179-12047 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30050 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30070 |
GS13#,JZS13#,LS13# |
2 | ||
| 48824-30070 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30070 |
GS13#,JZS13#,LS13# |
2 | ||
| 48824-30070 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| Common parts | ||||
| 90119-08651 | ||||
| 90119-08686 | ||||
| 90179-10054 | ||||
| 94110-41000 | ||||
ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-30080 |
GS136,LS136 |
1 | ||
| 48660-30130 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-30130 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48670-30080 |
GS136,LS136 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30070 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾌﾛﾝﾄ |
2 | ||
| 48674-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾘﾔ |
2 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30070 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾌﾛﾝﾄ |
2 | ||
| 48674-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾘﾔ |
2 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-18013 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
2 | ||
| Common parts | ||||
| 90179-12051 | ||||
| 90179-18012 | ||||
