GS136V-AXJRK (1991)
Toyota Crown
(9110- )GS13#,JZS130,131,133,LS13#,YS130

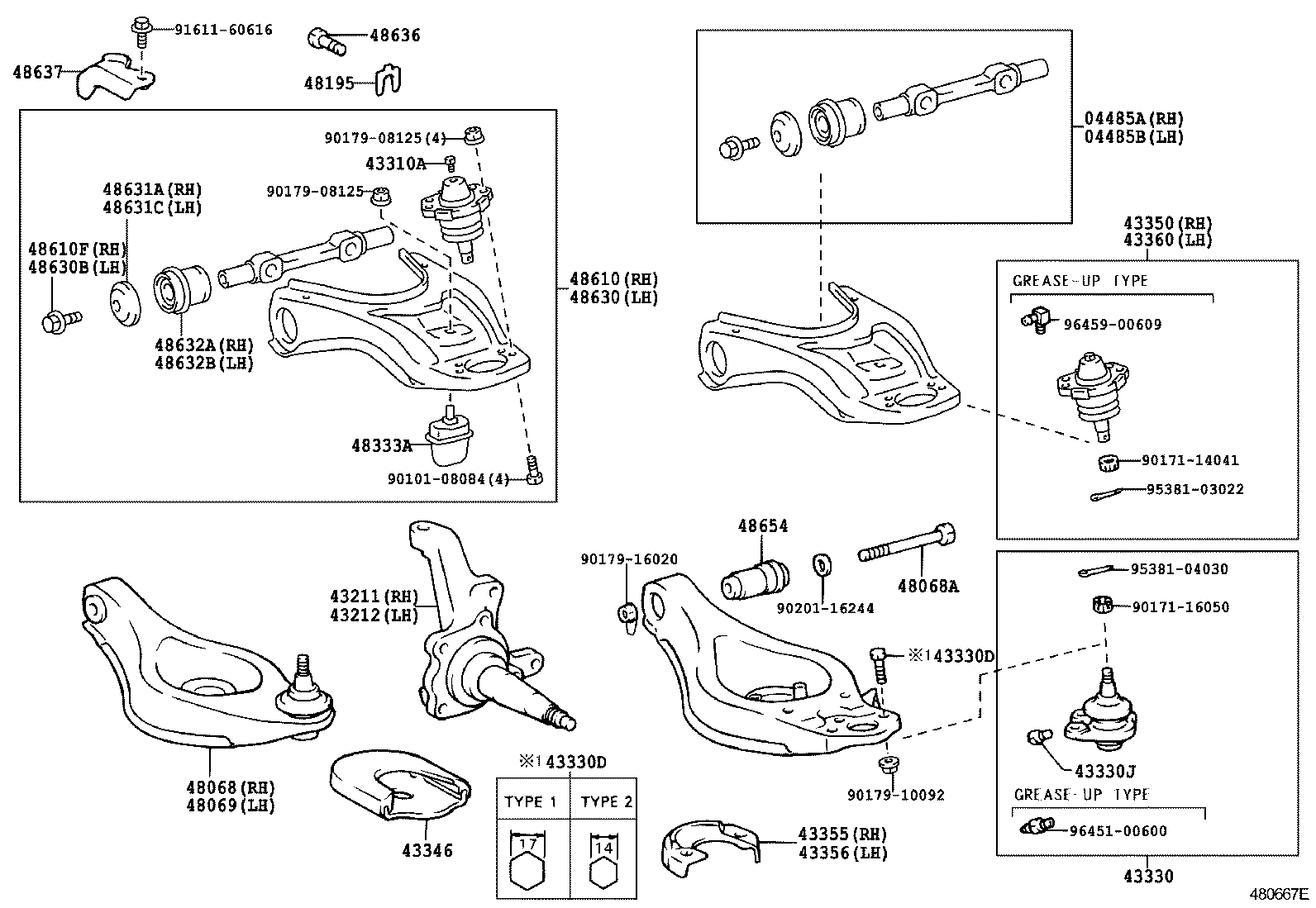

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485A - SHAFT KIT, FRONT SUSPENSION UPPER ARM, RH | ||||
| 04485-30060 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04485-30050 |
GS136,LS136 |
1 | ||
| 04485B - SHAFT KIT, FRONT SUSPENSION UPPER ARM, LH | ||||
| 04485-30050 |
GS136,LS136 |
1 | ||
| 04485-30060 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30140 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 43211-30120 |
GS136,LS136 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30090 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 43212-30060 |
GS136,LS136 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
GS13#,LS13#..DSL,HTWC,TDEC |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43340-39205 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC 左側 |
1 | ||
| 43330-39225 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC 右側 |
1 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90101-10188 |
GS13#,JZS13#,LS13# ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 1 |
1 | ||
| 90105-10360 |
GS13#,JZS13#,LS13# ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 2 |
2 | ||
| 90105-10360 |
GS13#,JZS13#,LS13# |
3 | ||
| 90101-10188 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 1 |
1 | ||
| 90105-10360 |
GS13#,JZS13#,LS13#,YS130 |
3 | ||
| 90105-10360 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 2 |
2 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90101-10188 |
GS13#,JZS13#,LS13# ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 1 |
1 | ||
| 90105-10360 |
GS13#,JZS13#,LS13# ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 2 |
2 | ||
| 90105-10360 |
GS13#,JZS13#,LS13# |
3 | ||
| 90101-10188 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 1 |
1 | ||
| 90105-10360 |
GS13#,JZS13#,LS13#,YS130 |
3 | ||
| 90105-10360 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ),TYPE 2 |
2 | ||
| 43330J - PLUG (FOR LOWER BALL JOINT) | ||||
| 90345-06014 |
GS13#,JZS135,LS13#..DSL,HTWC,TDEC,TWC |
2 | ||
| 43346 - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-30010 |
GS13#,JZS13#,LS13# ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ) |
1 | ||
| 43346-30010 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞｲﾌﾚｸﾀ) |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-39065 |
GS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-30040 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 43355-30050 |
GS136,LS136 |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43356-30030 |
GS136,LS136 |
1 | ||
| 43356-30040 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43350-39065 |
GS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-30230 |
GS136,LS136 |
1 | ||
| 48068-30150 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90101-16024 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 90101-16024 |
GS13#,JZS13#,LS13# |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-30150 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48069-30230 |
GS136,LS136 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-15017 |
GS13#,JZS13#,LS13# 厚さ=1.0 |
1 | ||
| 90565-15017 |
GS13#,JZS13#,LS13#,YS130 厚さ=1.0 |
1 | ||
| 90565-15018 |
GS13#,JZS13#,LS13#,YS130 厚さ=2.0 |
1 | ||
| 90565-15018 |
GS13#,JZS13#,LS13# 厚さ=2.0 |
1 | ||
| 90565-15016 |
GS13#,JZS13#,LS13# 厚さ=1.6 |
1 | ||
| 90565-15016 |
GS13#,JZS13#,LS13#,YS130 厚さ=1.6 |
1 | ||
| 48333A - SUPPORT, BUMPER, FRONT UPPER SUSPENSION ARM | ||||
| 48333-30040 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 48333-30021 |
GS136,LS136 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-30130 |
GS136,LS136 |
1 | ||
| 48610-30110 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90105-12017 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 90105-12017 |
GS13#,JZS13#,LS13# |
2 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-30110 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 48630-30130 |
GS136,LS136 |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90105-12017 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 90105-12017 |
GS13#,JZS13#,LS13# |
2 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-02020 |
GS13#,JZS13#,LS13# |
2 | ||
| 90948-02020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-02020 |
GS13#,JZS13#,LS13# |
2 | ||
| 90948-02020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-30040 |
GS136,LS136 |
2 | ||
| 48632-30070 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-30070 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 48632-30040 |
GS136,LS136 |
2 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 90105-14062 |
GS13#,JZS13#,LS13# |
4 | ||
| 90105-14062 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30030 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 48654-30040 |
GS136,LS136 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| Common parts | ||||
| 90101-08084 | ||||
| 90171-14041 | ||||
| 90171-16050 | ||||
| 90179-08125 | ||||
| 90179-10092 | ||||
| 90179-16020 | ||||
| 90201-16244 | ||||
| 91611-60616 | ||||
| 95381-03022 | ||||
| 95381-04030 | ||||
| 96451-00600 | ||||
| 96459-00609 | ||||
