GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

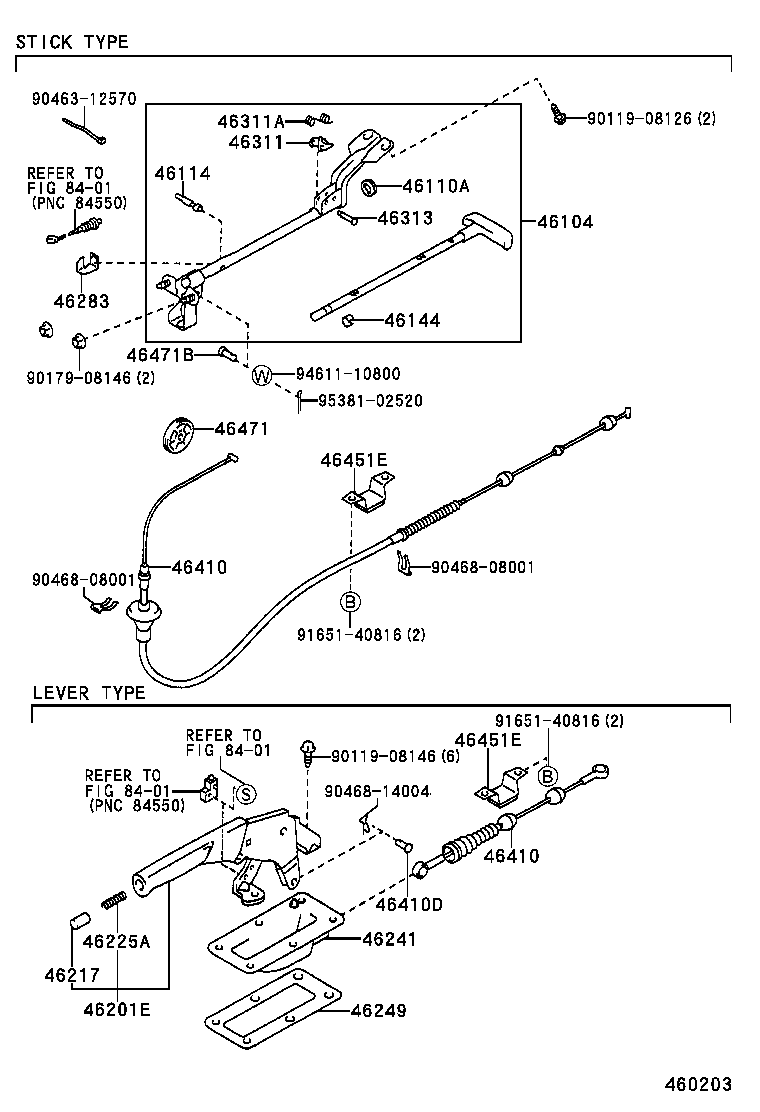

ILLUST NO. 1 OF 3(9110- )GS130..MTM ; (9110- )GS136,LS136,YS130

Click highlighted areas on diagram

diagram 46104 46110A 46114 46144 46201E 46217 46225A 46241 46249 46283 46311 46311A 46313 46410 46410 46410D 46451E 46451E 46471 46471B 8401 8401 8401 9011908126 9011908146 9017908146 9046312570 9046808001 9046808001 9046814004 9165140816 9165140816 9461110800 9538102520
Part # Description Qty Price
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-30110

GS130,136..4H

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

GS130,136..4H

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

GS130,136..4H

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

GS130,136..4H

 1
46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH
46283-30020

GS130,136..4H

 1
46311 - PAWL, PARKING BRAKE
46311-30041

GS130,136..4H

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

GS130,136..4H

 1
46313 - PIN, PARKING BRAKE PAWL
46313-40010

GS130,136..4H

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30610

GS130,136..4H

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30610

GS130,136..4H

 1
46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1
46451-30080

GS130,136,JZS130,LS130,136

 1
46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1
46451-30080

GS130,136,JZS130,LS130,136

 1
46471 - PULLEY, WIRE
46471-30010

GS130,136..4H

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08062

GS130,136..4H

 1
Common parts
90119-08126
90119-08146
90179-08146
90463-12570
90468-08001
90468-14004
91651-40816
94611-10800
95381-02520
Linked diagrams
8401

ILLUST NO. 2 OF 3(9110- )GS130,136,JZS130,LS130,136,YS130

Click highlighted areas on diagram

diagram 46301 46301 46301 46301C 46301C 46301C 46301E 46304B 46304B 46306 46306 46306 46339B 46341 46341 46353 46420 46420C 46441 46441 46441 46441A 46441A 46441A 46458 46459 46469 46479 9010906023 9010908102 9011908A78 9011908A78 9011908A78 9017906158 9017908146 9020608016 9046112019 9046808001 9046814004 9046814004 9161160614 9161160816 9161160816 9161160816 9165140816 9165160818 9411040600 9461110601
Part # Description Qty Price
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-30250

GS130,136..4H

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-30250

GS130,136..4H

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-30250

GS130,136..4H

 1
46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-21001

GS130..MTM;GS136,LS136

 1
46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-21001

GS130..MTM;GS136,LS136

 1
46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-21001

GS130..MTM;GS136,LS136

 1
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

GS130,136,JZS130,LS130,136

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

GS130,136,JZS130,LS130,136

 2
46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46306-30080

GS130,136..4H

 1
46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46306-30080

GS130,136..4H

 1
46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46306-30080

GS130,136..4H

 1
46341 - EQUALIZER, PARKING BRAKE
46341-30050

GS130,136,JZS130,LS130,136

 2
46341 - EQUALIZER, PARKING BRAKE
46341-30050

GS130,136,JZS130,LS130,136

 2
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30510

GS136..4H

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

GS130,136,JZS130,LS130,136

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

GS13#,JZS13#,LS13#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

GS13#,JZS13#,LS13#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

GS13#,JZS13#,LS13#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-30050

GS13#,JZS13#,LS13#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-30050

GS13#,JZS13#,LS13#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-30050

GS13#,JZS13#,LS13#

 1
46459 - GUIDE, CABLE
46459-30010

GS130,136,JZS130,LS130,136

 1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-31011

GS130,136,JZS130,LS130,136

 1
46479 - LEVER, CABLE GUIDE SAPPORT, NO.2
46479-30010

GS130,136,JZS130,LS130,136

 1
Common parts
90109-06023
90109-08102
90119-08A78
90179-06158
90179-08146
90206-08016
90461-12019
90468-08001
90468-14004
91611-60614
91611-60816
91651-40816
91651-60818
94110-40600
94611-10601
