GS136V-AXJRK (1991)
Toyota Crown
ILLUST NO. 1 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39155 |
GS136,LS136 |
1 | ||
| 45046-39195 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS13#,JZS13#,LS13# |
2 | ||
| 90171-12002 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39155 |
GS136,LS136 |
1 | ||
| 45046-39195 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39145 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39145 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90105-12105 |
GS13#,JZS13#,LS13# *12−1.25PX91.5−38,NO.1 |
1 | ||
| 90105-12105 |
GS13#,JZS13#,LS13#,YS130 *12−1.25PX91.5−38,NO.1 |
1 | ||
| 90105-12120 |
GS13#,JZS13#,LS13# *12−1.25PX104−44,NO.2 |
1 | ||
| 90105-12120 |
GS13#,JZS13#,LS13#,YS130 *12−1.25PX104−44,NO.2 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90105-12105 |
GS13#,JZS13#,LS13# *12−1.25PX91.5−38,NO.1 |
1 | ||
| 90105-12105 |
GS13#,JZS13#,LS13#,YS130 *12−1.25PX91.5−38,NO.1 |
1 | ||
| 90105-12120 |
GS13#,JZS13#,LS13# *12−1.25PX104−44,NO.2 |
1 | ||
| 90105-12120 |
GS13#,JZS13#,LS13#,YS130 *12−1.25PX104−44,NO.2 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-39055 |
GS136,LS136 |
1 | ||
| 45451-39035 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39275 |
GS136,LS136 |
1 | ||
| 45460-39265 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39275 |
GS136,LS136 |
1 | ||
| 45460-39265 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-30041 |
GS136,LS136 |
2 | ||
| 45465-30031 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22020 |
GS136,LS136 |
4 | ||
| 45466-22020 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),内側 |
2 | ||
| 45466-30030 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),外側 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22020 |
GS136,LS136 |
4 | ||
| 45466-22020 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),内側 |
2 | ||
| 45466-30030 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),外側 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39275 |
GS136,LS136 |
1 | ||
| 45470-39065 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39275 |
GS136,LS136 |
1 | ||
| 45470-39065 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39405 |
GS136,LS136 |
1 | ||
| 45490-39385 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-30121 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45611-30131 |
GS136,LS136 |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-12007 |
GS13#,JZS13#,LS13# |
1 | ||
| 90106-12007 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-30121 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45612-30131 |
GS136,LS136 |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-12007 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90106-12007 |
GS13#,JZS13#,LS13# |
1 | ||
| 45619C - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-36010 |
GS13#,JZS13#,LS13# |
1 | ||
| 45619-36010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45619D - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-36010 |
GS13#,JZS13#,LS13# |
1 | ||
| 45619-36010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| Common parts | ||||
| 90101-08131 | ||||
| 90179-12051 | ||||
| 90201-12059 | ||||
| 90468-16010 | ||||
| 90468-16017 | ||||
| 91515-61225 | ||||
| 94115-41200 | ||||
| 94130-00802 | ||||
| 94621-10800 | ||||
| 95381-03020 | ||||
| 95381-03025 | ||||
| Linked diagrams | ||||
| 4705 | ||||

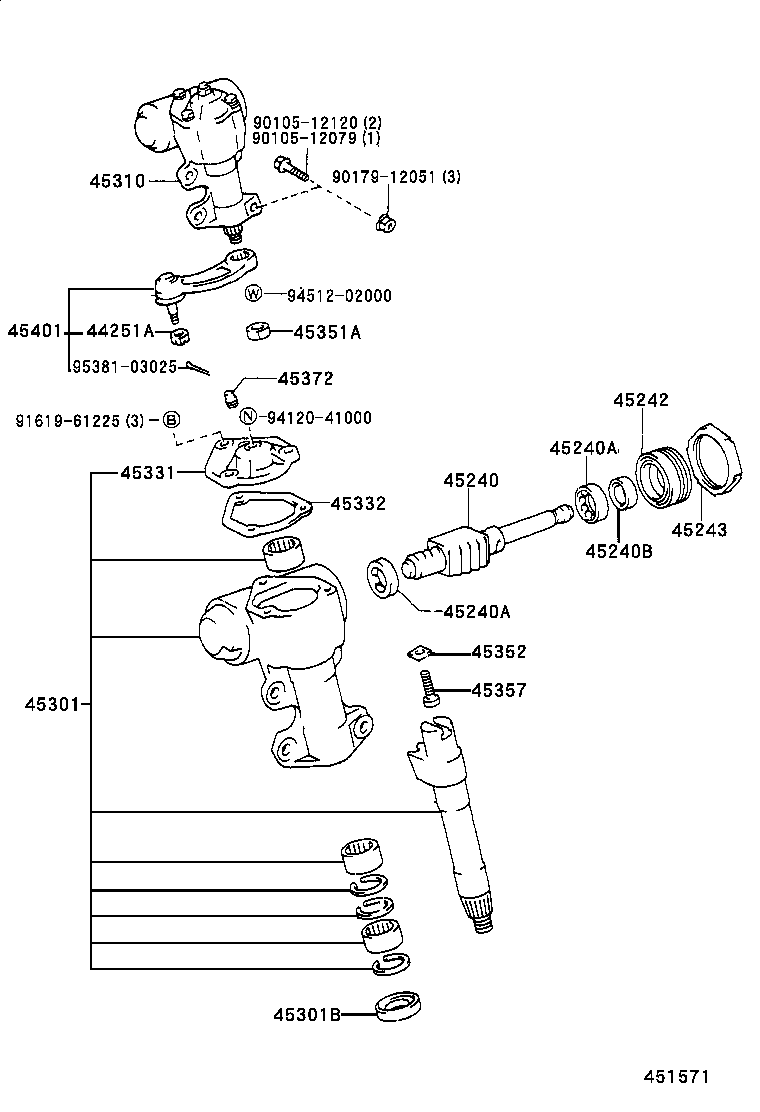

ILLUST NO. 2 OF 3(9110-9308)GS136,LS136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
GS13#,JZS13#,LS13# |
1 | ||
| 90171-14042 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-30080 |
GS136,LS136 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-44001 |
GS136,LS136 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-44001 |
GS136,LS136 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
GS136,LS136 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-30060 |
GS136,LS136 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
GS136,LS136 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-30120 |
GS136,LS136 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-34006 |
GS136,LS136 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-30140 |
GS136,LS136 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-30160 |
GS136,LS136 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-30090 |
GS136,LS136 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GS136,LS136 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14030 |
GS136,LS136 厚さ=2.08 |
1 | ||
| 45352-14020 |
GS136,LS136 厚さ=2.04 |
1 | ||
| 45352-14040 |
GS136,LS136 厚さ=2.12 |
1 | ||
| 45352-14060 |
GS136,LS136 厚さ=2.20 |
1 | ||
| 45352-14050 |
GS136,LS136 厚さ=2.16 |
1 | ||
| 45352-14010 |
GS136,LS136 厚さ=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
GS136,LS136 |
1 | ||
| 45357-60030 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
GS136,LS136 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39315 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45401-39275 |
GS136,LS136 |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12051 | ||||
| 91619-61225 | ||||
| 94120-41000 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
ILLUST NO. 2 OF 3(9110-9409)LS136 ; (9110- )GS130,136,LS130,YS130..DLX,DLXA,ROY,SDX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-30130 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD |
1 | ||
| 40110 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40110-30460 |
GS130,136,LS130,YS130..DLX,DLXA,ROY,SDX,STD TOYODA KOKI |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30460 |
GS130,136,LS130,YS130..DLX,DLXA,ROY,SDX,STD |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
GS13#,JZS13#,LS13# |
1 | ||
| 90171-14042 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39315 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45401-39275 |
GS136,LS136 |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12051 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
ILLUST NO. 3 OF 3(9110- )GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
GS13#,JZS130,131,LS13#,YS130 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
GS13#,JZS130,131,LS13#,YS130 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30240 |
GS130,136,JZS133,135,LS130,136,YS130..DLX,DLXA,ROY,ROYG,SDX,STD |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS13#,JZS13#,LS13#,YS130 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS13#,JZS13#,LS13#,YS130 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS13#,JZS13#,LS13#,YS130 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS13#,JZS13#,LS13#,YS130 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS13#,JZS13#,LS13#,YS130 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS13#,JZS13#,LS13#,YS130 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS13#,JZS13#,LS13#,YS130 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS13#,JZS13#,LS13#,YS130 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS13#,JZS13#,LS13#,YS130 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS13#,JZS13#,LS13#,YS130 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS13#,JZS13#,LS13#,YS130 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS13#,JZS13#,LS13#,YS130 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
GS13#,JZS13#,LS13#,YS130 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS13#,JZS13#,LS13#,YS130 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
GS13#,JZS13#,LS13#,YS130 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS13#,JZS13#,LS13#,YS130 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-71001 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-68002 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-30290 |
GS130,136,LS130,YS130..DLX,DLXA,ROY,SDX,STD |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-60020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
GS136,LS136 |
1 | ||
| 45357-60030 |
GS136,LS136 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| Common parts | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
