GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS130,136,LS136..MTM

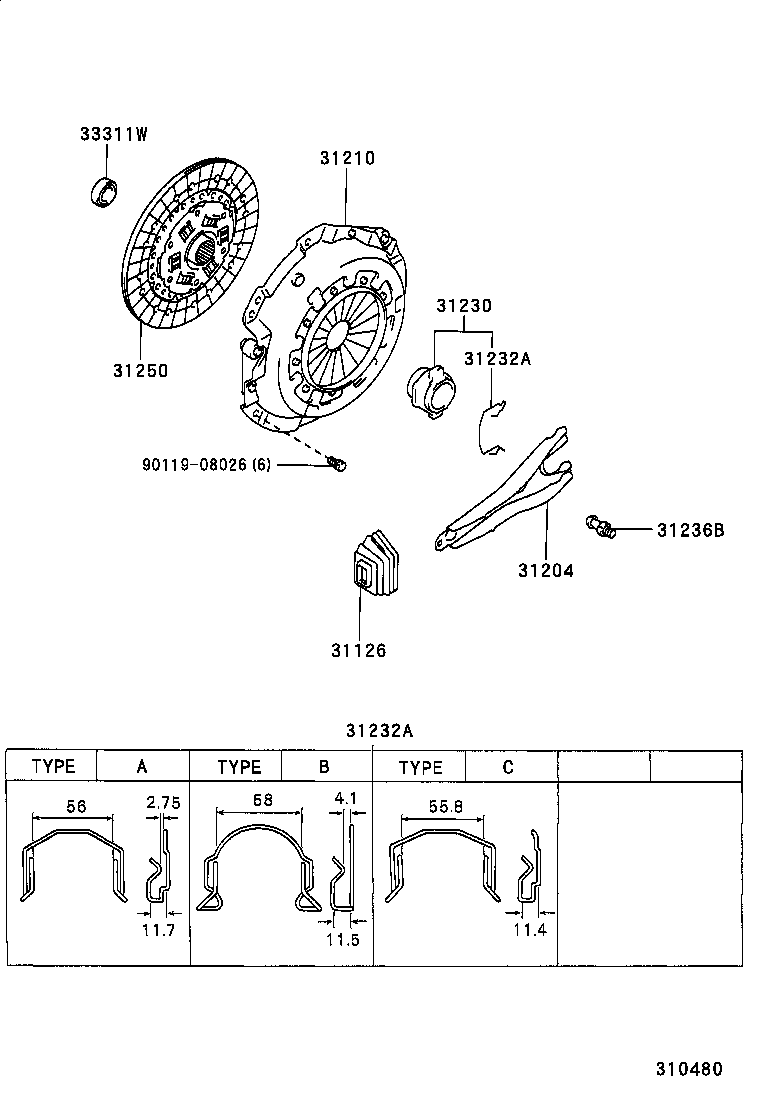

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

GS130,136,LS136..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050

GS130,136,LS136..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-22100

GS130,136..MTM..HTWC

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35090

GS130,136..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

GS130,136,LS136..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35040

GS130,136..MTM

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

GS130,136,LS136..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35040

GS130,136..MTM

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

GS130,136,LS136,YS130..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-22231

GS130,136..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

GS130,136..MTM

 1
Common parts
90119-08026
