GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE..GS136

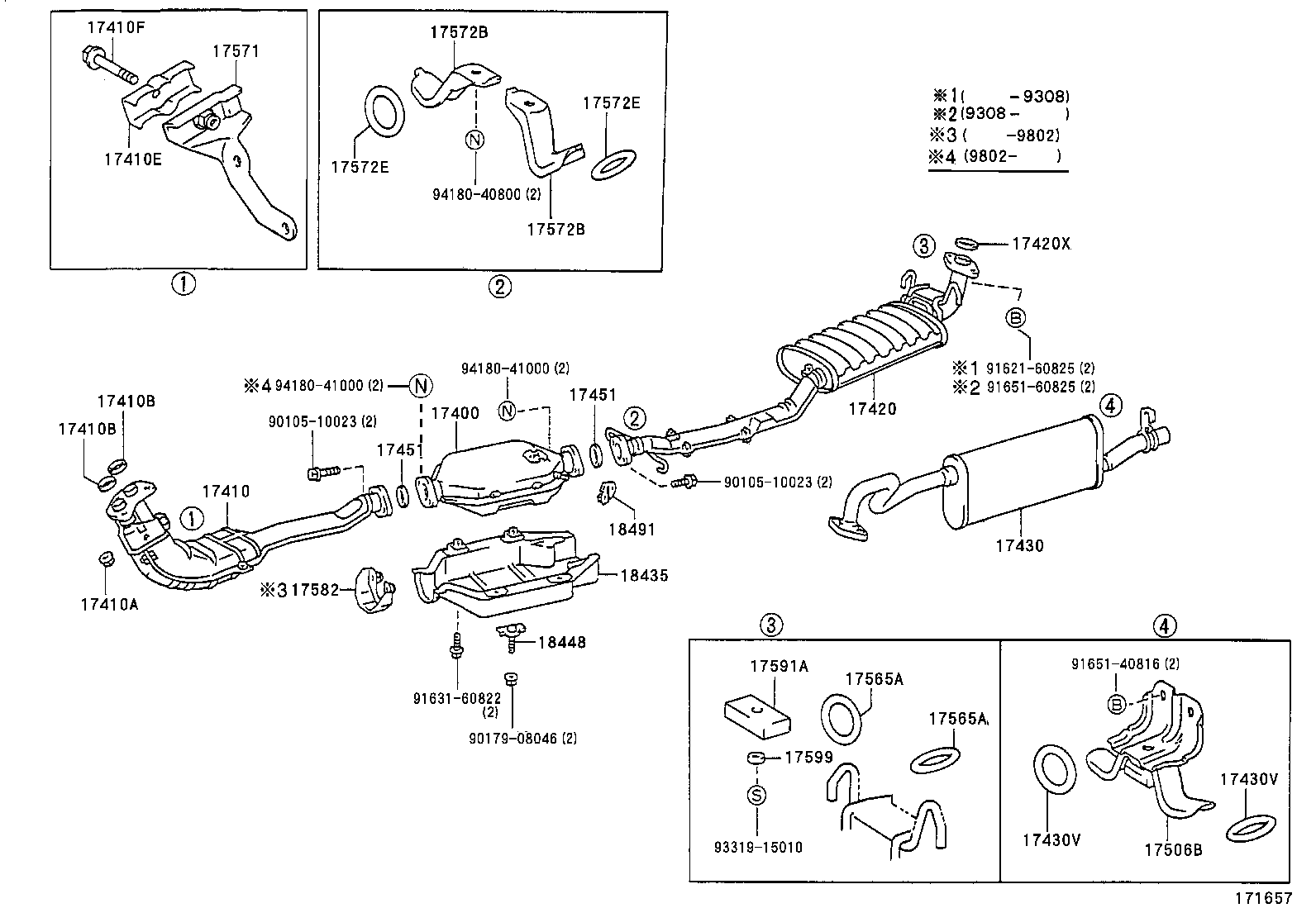

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410E 17410F 17420 17420X 17430 17430V 17430V 17451 17451 17506B 17565A 17565A 17571 17572B 17572B 17572E 17572E 17582 17591A 17599 18435 18448 18491 9010510023 9010510023 9017908046 9162160825 9163160822 9165140816 9165160825 9331915010 9418040800 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-70090

1GFE..GS13#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70150

1G#..GS13#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1G#,1JZGE,2LT#,2L..GS13#,JZS130,131,LS13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06039

1G#,1JZGE..GS13#,JZS130,131

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

1G#,1JZGE..GS13#,JZS130,131

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1G#,1JZGE..GS13#,JZS130,131

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10018

1G#,1JZGE..GS13#,JZS130,131

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-70240

1GFE..GS136

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

1GFE..GS136

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70291

1GFE..GS136

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-32006

1GFE..GS13#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-32006

1GFE..GS13#

 2
17451 - GASKET, EXHAUST PIPE
90917-06041

1G#..GS13#

ﾌﾛﾝﾄ

 1
90917-06045

1G#..GS13#

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06041

1G#..GS13#

ﾌﾛﾝﾄ

 1
90917-06045

1G#..GS13#

ﾘﾔ

 1
17506B - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17506-41060

1GFE,2L..GS136,LS136

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-70040

1GFE..GS130,136

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-70040

1GFE..GS130,136

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-70030

1G#..GS13#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-41030

1G#..GS13#

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36020

1GFE,2L..GS136,LS136

 1
17599 - HOLDER, EXHAUST PIPE SUPPORT STOPPER
17599-36010

1GFE,2L..GS136,LS136

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-42010

1G#,1JZGE..GS13#,JZS130,131

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1G#,1JZGE..GS13#,JZS130,131

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

1G#,1JZGE,2JZGE..GS13#,JZS13#

 1
Common parts
90105-10023
90179-08046
91621-60825
91631-60822
91651-40816
91651-60825
93319-15010
94180-40800
94180-41000
