GS136V-AXJRE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

Click highlighted areas on diagram

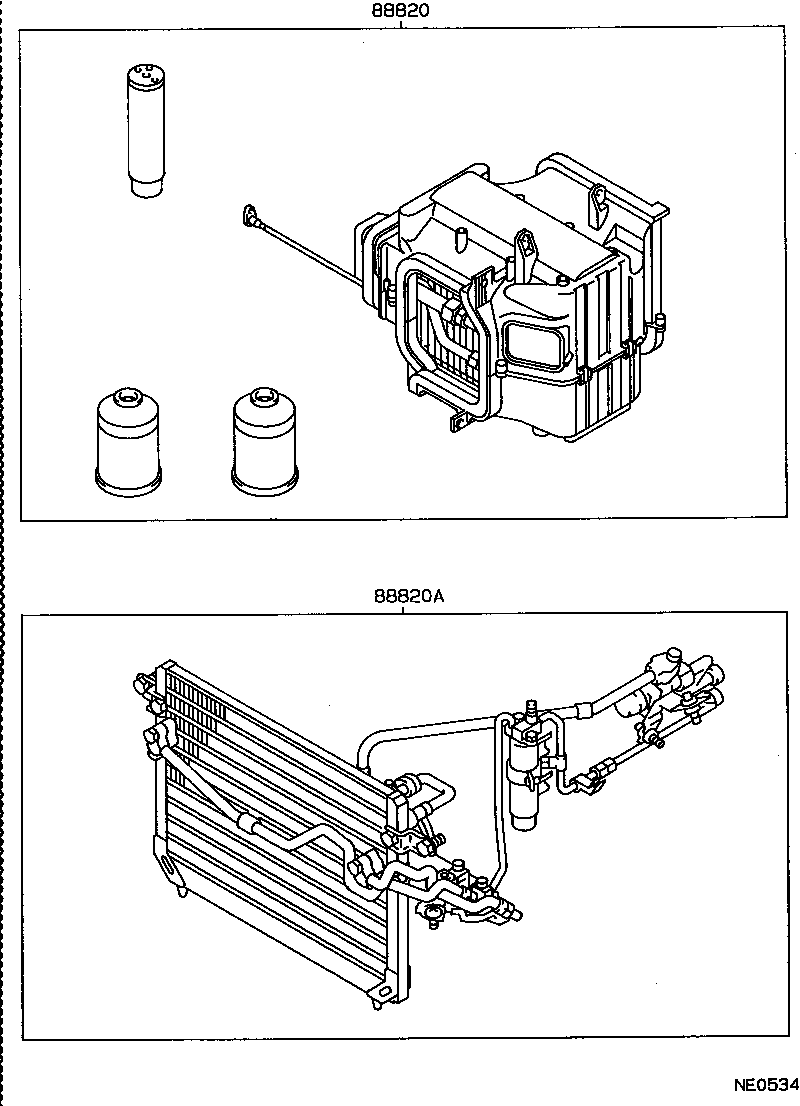

FRONT(DEALER OPT)

diagram 88820 88820A
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-30320

GS130,136..STD..EFI

 1
88820-30320

YS130;GS130,136,LS136..STD..(DSL,EFI)

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-30660

GS136..STD

 1

(8709- )

Click highlighted areas on diagram

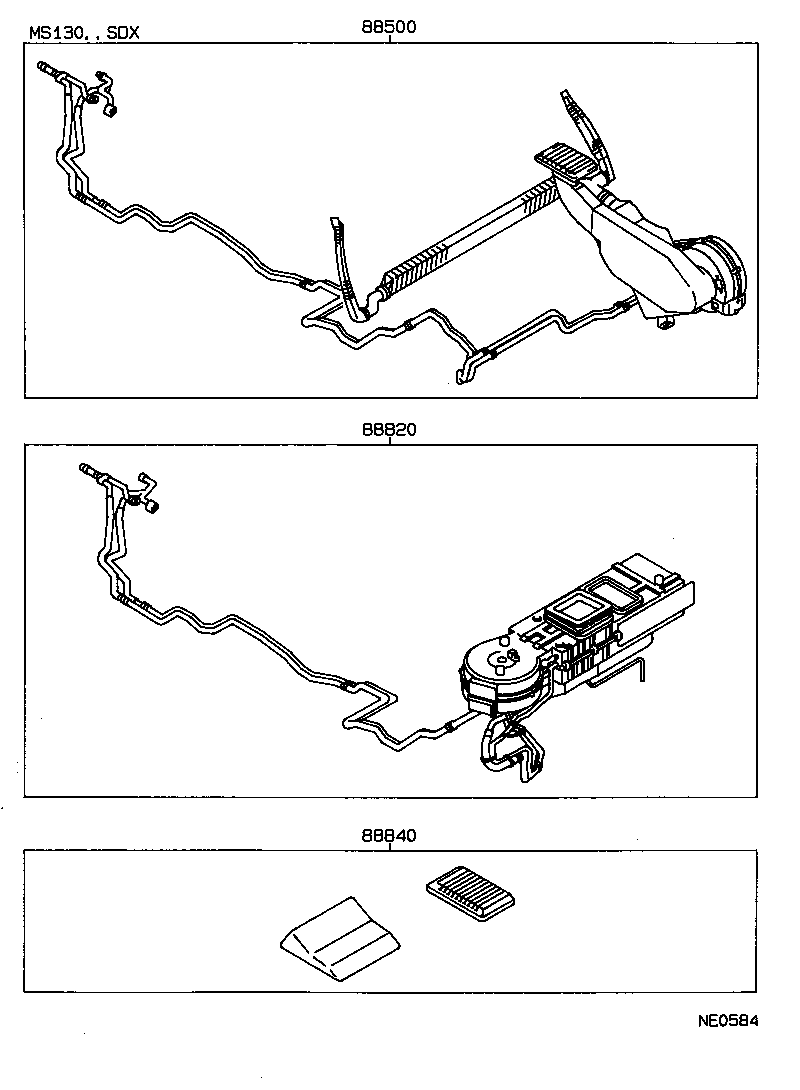

REAR(DEALER OPT)

diagram 88500 88820 88840
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-30320

GS130,136..STD..EFI

 1
88820-30320

YS130;GS130,136,LS136..STD..(DSL,EFI)

 1
