GS136V-AXJRE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)V,WG

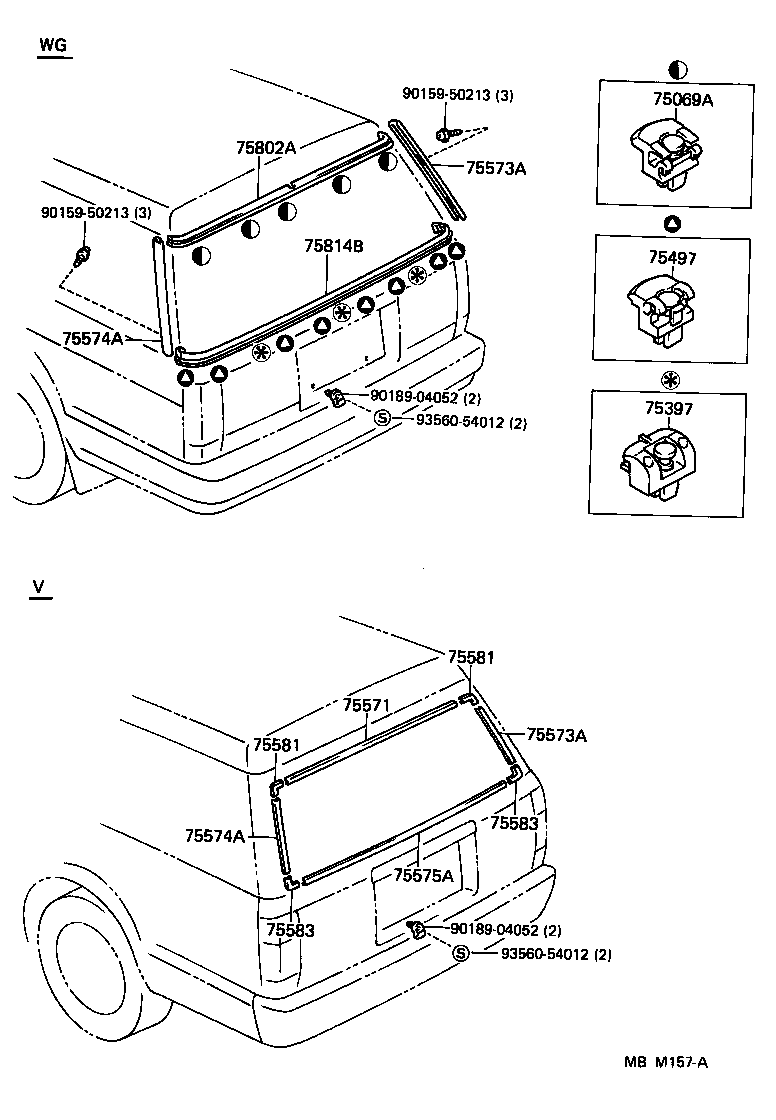

Click highlighted areas on diagram

diagram 75069A 75397 75497 75571 75573A 75573A 75574A 75574A 75575A 75581 75581 75583 75583 75802A 75814B 9015950213 9015950213 9018904052 9018904052 9356054012 9356054012
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-91704

GS136,LS136

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-91702

GS136,LS136

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-91702

GS136,LS136

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75573-91702

GS136,LS136

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75573-91702

GS136,LS136

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-91704

GS136,LS136

 1
75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER
75581-91701

GS136,LS136

 2
75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER
75581-91701

GS136,LS136

 2
75583 - COVER, BACK WINDOW MOULDING JOINT, LOWER
75583-91701

GS136,LS136

 2
75583 - COVER, BACK WINDOW MOULDING JOINT, LOWER
75583-91701

GS136,LS136

 2
Common parts
90159-50213
90189-04052
93560-54012
