Toyota Crown GS136 FLOOR PAN & LOWER BACK PANEL

Manufacturers Home
Toyota
JP
CROWN
GS136V-AXJRE (1987)
5801 - FLOOR PAN & LOWER BACK PANEL

GS136V-AXJRE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989

Engine 1GE

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

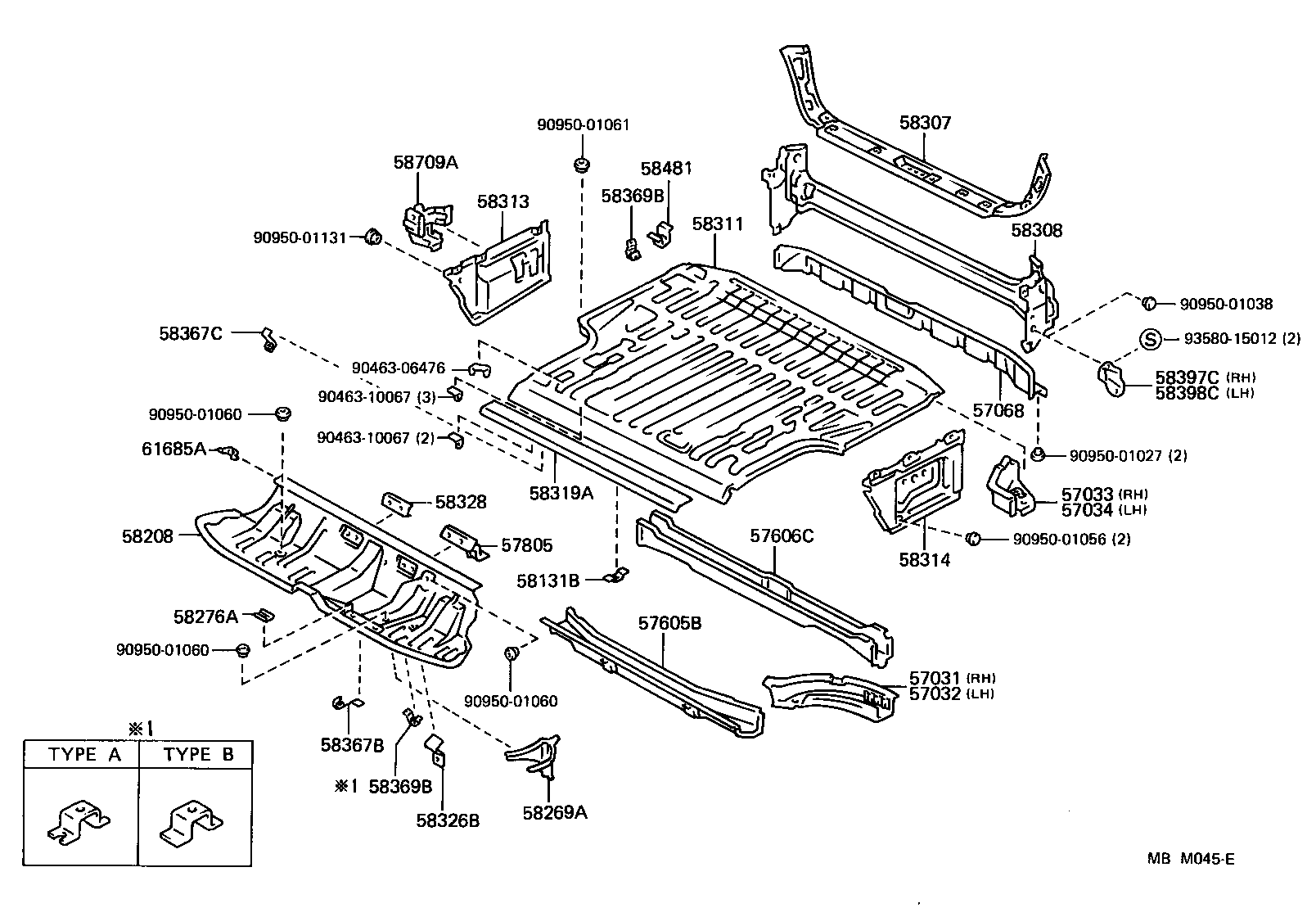

ILLUST NO. 2 OF 2(8709-8908)GS136,LS136

Click highlighted areas on diagram

Part #	Description	Period	Qty
57031 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH
57031-91705	GS136,LS136	09/1987 - 05/1991	1
57032 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH
57032-91706	GS136,LS136	09/1987 - 05/1991	1
57033 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, RH
57033-91706	GS136,LS136	09/1987 - 05/1991	1
57034 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, LH
57034-91706	GS136,LS136	09/1987 - 05/1991	1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57659-91703	GS136,LS136	09/1987 - 10/1991	1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-91704	GS136,LS136	09/1987 - 10/1991	1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-91704	GS136,LS136	09/1987 - 10/1991	1
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-91701	GS136,LS136	09/1987 - 08/1989	1
58131B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58131-14030	GS136,LS136..DSL,EFI	09/1987 - 12/1989	2
58208 - PAN, CENTER FLOOR
58211-91712	GS136,LS136	09/1987 - 10/1991	1
58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3
58269-91704	GS136,LS136..4H	09/1987 - 05/1991	1
58276A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 LH
58276-91701	GS136,LS136	09/1987 - 10/1991	2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-91707	GS136,LS136	09/1987 - 08/1989	1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-91705	GS136,LS136	09/1987 - 05/1991	1
58311 - PAN, REAR FLOOR
58311-91707	GS136,LS136	09/1987 - 05/1991	1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-91705	GS136,LS136	09/1987 - 10/1991	1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-91704	GS136,LS136	09/1987 - 05/1991	1
58319A - PLATE, REAR FLOOR PANEL, FRONT
58024-91702	GS136,LS136	09/1987 - 10/1991	1
58326B - BRACKET, FLEXIBLE HOSE MOUNTING
58326-91701	GS136,LS136	09/1987 - 05/1991	1
58328 - REINFORCEMENT, SAFETY BELT ANCHORAGE
58161-91702	GS136,LS136	09/1987 - 08/1990	1
58367B - BRACKET, FUEL TUBE
58367-91704	GS136,LS136 ｾﾝﾀ- ﾌﾛｱ	09/1987 - 05/1991	1
58367C - BRACKET, FUEL TUBE
58367-91702	GS136 ﾘﾔﾌﾛｱ	09/1987 - 08/1989	3
58369B - BRACKET, FUEL TUBE, NO.3
58369-30040	LS136..DLX;GS130,136,LS130,MS130,YS130 ﾀｲﾌﾟ A	09/1987 - 08/1989	2
58369-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A	09/1987 - 10/1991	1
58369B - BRACKET, FUEL TUBE, NO.3
58369-30040	LS136..DLX;GS130,136,LS130,MS130,YS130 ﾀｲﾌﾟ A	09/1987 - 08/1989	2
58369-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A	09/1987 - 10/1991	1
58397C - COVER, BODY LOWER BACK, RH
58397-91704	GS130,136,JZS130,LS130,136..V,WG	09/1987 - 05/1991	1
58398C - COVER, BODY LOWER BACK, LH
58398-91704	GS130,136,JZS130,LS130,136..V,WG	09/1987 - 05/1991	1
58481 - PLATE, BLEETHER TUBE CATCH
58481-91701	GS130,136,LS130,136..V,WG	09/1987 - 08/1990	1
58709A - CARRIER SUB-ASSY, JACK
58709-91703	GS136,LS136	09/1987 - 10/1991	1
61685A - BRACKET, REAR SEAT BACK MOUNTING
61685-91602	GS130,136,LS136..(V,WG)..(DLX,SDX,STD)	09/1987 - 10/1991	2
Common parts
90463-06476
90463-10067
90950-01027
90950-01038
90950-01056
90950-01060
90950-01061
90950-01131
93580-15012

ILLUST NO. 1 OF 2(8709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-30050	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-30050	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57421A - PLATE, FLOOR SIDE RAIL, RH
57421-30030	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57422 - PLATE, FLOOR SIDE RAIL, LH
57422-30030	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57445 - REINFORCEMENT, NO.5 BODY MOUNTING, RH
57445-30010	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57446 - REINFORCEMENT, NO.5 BODY MOUNTING, LH
57446-30010	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57455A - BRACKET, FRONT FLOOR CROSSMEMBER
57455-30010	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57457-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57458-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57459 - MEMBER, FRONT FLOOR CROSS, NO.2
57459-91702	GS136,LS136	09/1987 - 10/1991	1
57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57467-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-30050	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
57478A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH
57478-91702	GS136,LS136	09/1987 - 10/1991	1
57479A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH
57479-91703	GS136,LS136	09/1987 - 10/1991	1
57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57505-30020	GS130,136,JZS130,LS130,136,MS130,YS130	09/1987 - 10/1991	1
58111 - PAN, FRONT FLOOR
58111-30270	GS131..HT..4HC;GS131,136..(SED,V)..(4H,4HC)..(EFI,SPC);GS130,LS130,136,MS13#,YS130..(4H,4HC)..(DSL,EFI,HTWC,LPG,TWC)	09/1987 - 01/1990	1
58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-14030	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	5
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-30070	LS136..STD;GS130,136,JZS130,LS130,MS130,YS130..4FC,4H,4HC	09/1987 - 10/1991	1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-30020	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
58212C - PAN, CENTER FLOOR, FRONT
58212-30031	GS130,136,LS136..(V,WG)..(DLX,SDX,STD)	09/1987 - 08/1989	1
58241D - GUSSET, WHEELHOUSE INNER, FRONT RH
58241-30030	GS13#,LS13#,MS13#,YS130	09/1987 - 01/1988	1
58241-30030	GS136,LS136	01/1988 - 05/1989	1
58242D - GUSSET, WHEELHOUSE INNER, FRONT LH
58242-30040	GS13#,LS13#,MS13#,YS130	09/1987 - 01/1988	1
58242-30040	GS136,LS136	01/1988 - 05/1989	1
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-91705	GS130,136,LS136..(V,WG)..(DLX,SDX,STD)	09/1987 - 10/1991	1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-91705	GS130,136,LS136..(V,WG)..(DLX,SDX,STD)	09/1987 - 10/1991	1
58253D - BRACKET, PARKING BRAKE CABLE
58253-30050	YS130..4H,4HC;GS130,136,LS130,136,MS130..4H	09/1987 - 10/1991	1
58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2
58265-30030	GS131,LS131..5F;GS130,136,JZS130,LS130,136,MS130,YS130	09/1987 - 10/1991	1
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-30070	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4
58272-30070	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
58368B - BRACKET, FUEL TUBE, NO.2
58368-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
58369B - BRACKET, FUEL TUBE, NO.3
58369-30040	LS136..DLX;GS130,136,LS130,MS130,YS130 ﾀｲﾌﾟ A	09/1987 - 08/1989	2
58369-30040	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A	09/1987 - 10/1991	1
Common parts
83791-30101
90119-06352
90119-06353
90176-05007
90176-05013
90463-12020
90467-10070
90950-01005
90950-01167
90950-01241
90950-01269
90950-01311
90950-01370
90950-01453
90950-01611
90950-01612
90959-01117
91651-40614
91666-40618
