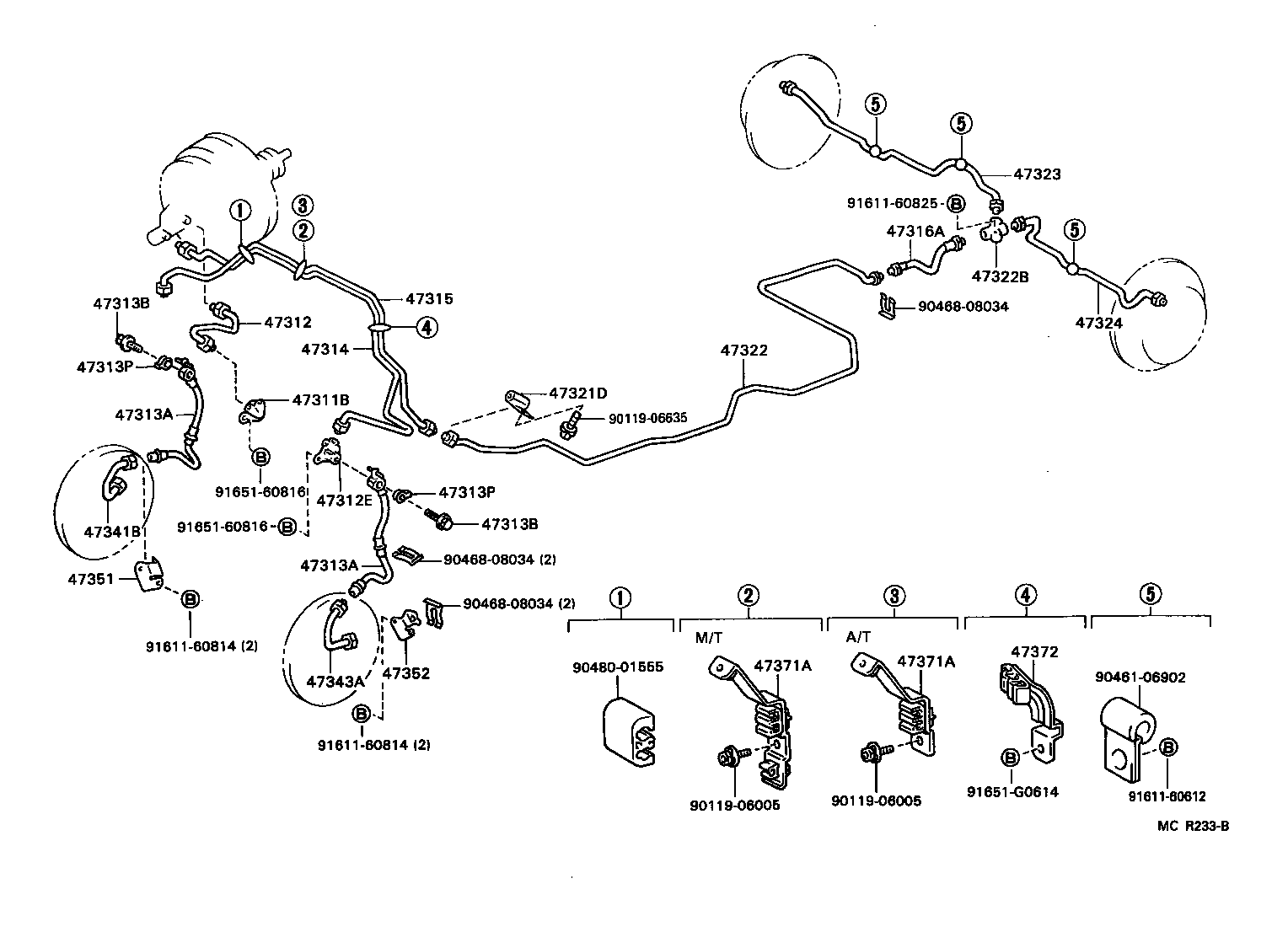

GS136V-AXJDK (1991)
Toyota Crown
(9110- )GS136,LS136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10211 |
GS13#,JZS130,131,133,LS13#,YS130 ﾅｼ(ABS) |
1 | ||
| 90413-10211 |
GS13#,JZS130,131,133,LS13# ﾅｼ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30310 |
GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾅｼ(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10146 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90412-10146 |
GS13#,JZS13#,LS13# |
1 | ||
| 90412-10146 |
JZS135..4FC;GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS13#,JZS13#,LS13# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS13#,JZS13#,LS13# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13# |
2 | ||
| 90401-10015 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13# |
2 | ||
| 90401-10015 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13# |
4 | ||
| 47389-30010 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13# |
4 | ||
| 47389-30010 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30260 |
GS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾅｼ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30460 |
GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾅｼ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33555 |
GS136,LS136 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90412-10144 |
GS13#,JZS13#,LS13# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30120 |
GS136,LS136 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10156 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 90413-10156 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30150 |
GS136,LS136 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30110 |
GS136,LS136 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47341-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 47343-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30210 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47351-30210 |
GS13#,JZS13#,LS13# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30090 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47352-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30150 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30150 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30120 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47371-30120 |
JZS135..4FC;GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 47371-30120 |
GS13#,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06635 | ||||
| 90461-06902 | ||||
| 90468-08034 | ||||
| 90480-01555 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91651-60816 | ||||
| 91651-G0614 | ||||
