GS136V-AXJDK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

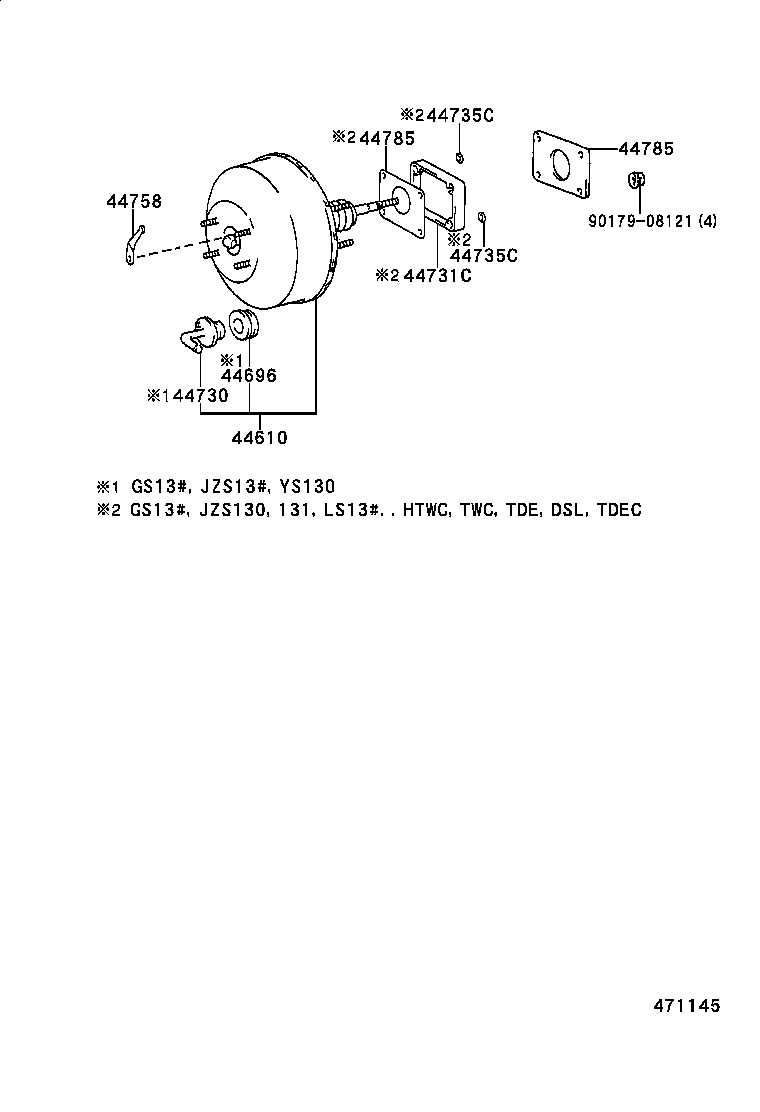

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

diagram 44610 44696 44730 44731C 44735C 44735C 44758 44785 44785 9017908121
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-30881

GS136

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GS13#,JZS130,131

 1
90480-24439

GS13#,JZS130,131,YS130

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

GS13#,JZS130,131

 1
44730-14050

GS13#,JZS130,131,YS130

 1
44731C - BRACKET, BRAKE BOOSTER
44731-20080

GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC

 2
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC

 2
44758 - BRACKET, VACUUM CHECK VALVE
44758-30150

GS13#,JZS13#..HTWC,TWC

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC

ﾌﾛﾝﾄ

 1
44785-30030

GS13#,JZS13#,LS13#,YS130

ﾘﾔ

 1
44785-30030

GS13#,JZS13#,LS13#

ﾘﾔ

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC

ﾌﾛﾝﾄ

 1
44785-30030

GS13#,JZS13#,LS13#,YS130

ﾘﾔ

 1
44785-30030

GS13#,JZS13#,LS13#

ﾘﾔ

 1
Common parts
90179-08121

ILLUST NO. 2 OF 2(9110- )GS13#

Click highlighted areas on diagram

diagram 44730F 44730F 44777 44777 44778 44778 44779 44779 9011906005 9011906005 9046400298 9046400298 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GS13#,JZS130,131

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GS13#,JZS130,131

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30180

JZS133,135..4FC;GS13#,JZS130,131..HTWC,TWC

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30210

JZS133,135..4FC;GS13#,JZS130,131..HTWC,TWC

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30180

JZS133,135..4FC;GS13#,JZS130,131..HTWC,TWC

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30210

JZS133,135..4FC;GS13#,JZS130,131..HTWC,TWC

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-30140

GS13#,JZS13#..HTWC,TWC

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-30140

GS13#,JZS13#..HTWC,TWC

 1
44779 - HOSE, UNION TO CONNECTOR
44779-30310

GS13#..HTWC

 1
44779 - HOSE, UNION TO CONNECTOR
44779-30310

GS13#..HTWC

 1
Common parts
90119-06005
90464-00298
90467-16002
