GS131H-AEPJK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS130,JZS130,131,133,LS130,131

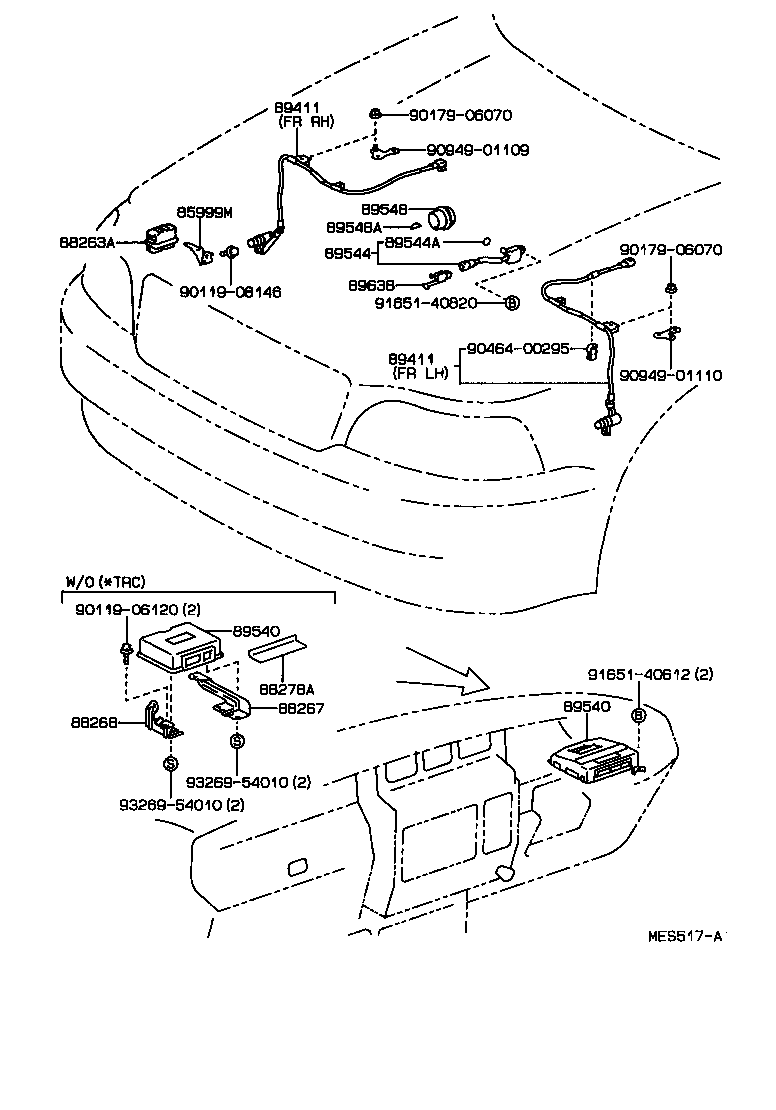

Click highlighted areas on diagram

diagram 85999M 88263A 88267 88268 88278A 89411 89411 89540 89540 89544 89544A 89548 89548A 89638 9011906120 9011908146 9017906070 9017906070 9046400295 9094901109 9094901110 9165140612 9165140820 9326954010 9326954010
Part # Description Qty Price
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-30150

JZS130,131,133,LS131

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-30140

JZS130,131,133,LS131

 1
88278A - CUSHION, SKID CONTROL COMPUTER
88278-30150

JZS130,131,133,LS131

 1
89411 - SENSOR, SPEED
89543-30140

JZS130,131,133,LS131

FRONT LH

 1
89542-30140

JZS130,131,133,LS131

FRONT RH

 1
89411 - SENSOR, SPEED
89543-30140

JZS130,131,133,LS131

FRONT LH

 1
89542-30140

JZS130,131,133,LS131

FRONT RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-30060

JZS130,131,133,LS131

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-30060

JZS130,131,133,LS131

 1
Common parts
90119-06120
90119-08146
90179-06070
90464-00295
90949-01109
90949-01110
91651-40612
91651-40820
93269-54010
