GS131H-AEPJK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9110- )1GFE

Click highlighted areas on diagram

diagram 22203 22210 22270 22271 23250 23250B 23250C 23270 23270B 23270B 23271F 23280 23280E 23291 23300P 23300T 23300T 23300U 23300V 23801G 23801H 23801H 23801P 23802B 23803C 23803D 23803D 23807 23809F 23809F 8404 9009050605 9009050622 9011906114 9011906200 9011908730 9011908730 9017908150 9033911001 9056108009 9165160816 9331514010 9331534010 9411540500 9411540530 9676124040
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70080

1GFE..GS13#

 1
22210 - BODY ASSY, THROTTLE
22210-70340

1GFE..GS13#

 1
22210-70341

1GFE..GS13#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70120

1GFE..GS13#

 1
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS13#

 1
23250 - INJECTOR ASSY, FUEL
23209-70100

1GFE..GS13#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GFE..GS13#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GFE..GS13#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE..GS13#

NO.1

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE..GS13#

 2
90430-12026

1GFE..GS13#

DELIVERY PIPE SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE..GS13#

 2
90430-12026

1GFE..GS13#

DELIVERY PIPE SIDE

 1
23271F - HOSE, FUEL
23271-70060

1GFE..GS13#

 1
23271-70040

1GFE..GS13#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70100

1GFE..GS13#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GFE..GS13#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GFE..GS13#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-79015

1GFE..GS13#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE..GS13#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE..GS13#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12029

1GFE..GS13#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01346

1GFE..GS13#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

1GFE..GS13#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

1GFE..GS13#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

1GFE..GS13#

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70060

1GFE..GS13#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-70050

1GFE..GS13#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-10038

1GFE..GS13#

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-10012

1GFE..GS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-10012

1GFE..GS13#

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70060

1GFE..GS13#

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13065

1GFE..GS13#

ｴﾝｼﾞﾝ側

 1
90467-13001

1GFE..GS13#

RETURN TUBE SIDE

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13065

1GFE..GS13#

ｴﾝｼﾞﾝ側

 1
90467-13001

1GFE..GS13#

RETURN TUBE SIDE

 1
Common parts
90090-50605
90090-50622
90119-06114
90119-06200
90119-08730
90179-08150
90339-11001
90561-08009
91651-60816
93315-14010
93315-34010
94115-40500
94115-40530
96761-24040
Linked diagrams
8404

ILLUST NO. 2 OF 2(9110- )1GFE..GS130,131..SALEX

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9098004047 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price

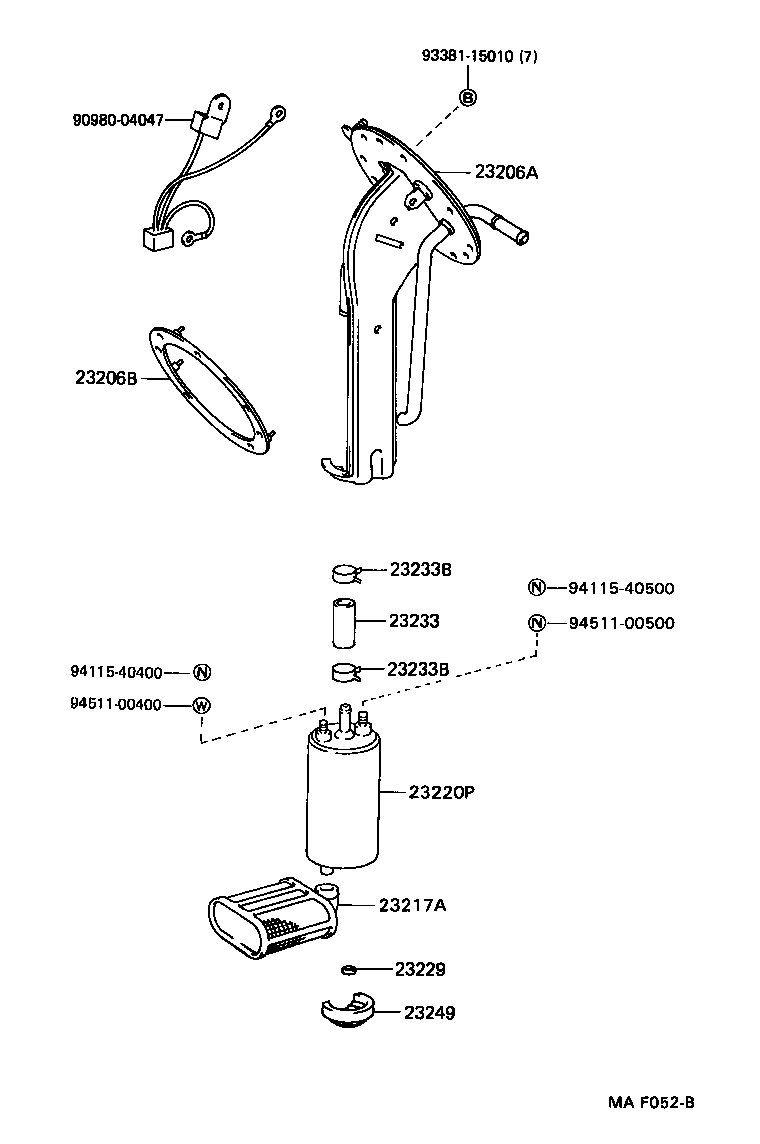

23206A - BRACKET, FUEL PUMP
23206-46081

1GFE..GS131

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

1GFE..GS130,131..SED

 1
23217A - FILTER, FUEL PUMP
23217-50020

1GFE..GS130,131..SED

 1
23220P - PUMP ASSY, FUEL
23220-43070

1GFE..GS130,131..SED

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1GFE..GS130,131..SED

 1
23233 - HOSE, FUEL PUMP
23239-16010

1GFE..GS130,131..SED

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1GFE..GS130,131..SED

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1GFE..GS130,131..SED

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

1GFE..GS130,131..SED

 1
Common parts
90980-04047
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500
