Toyota Crown GS131 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CROWN
GS131-ATSQR (1987)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GS131-ATSQR (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 1GGZE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

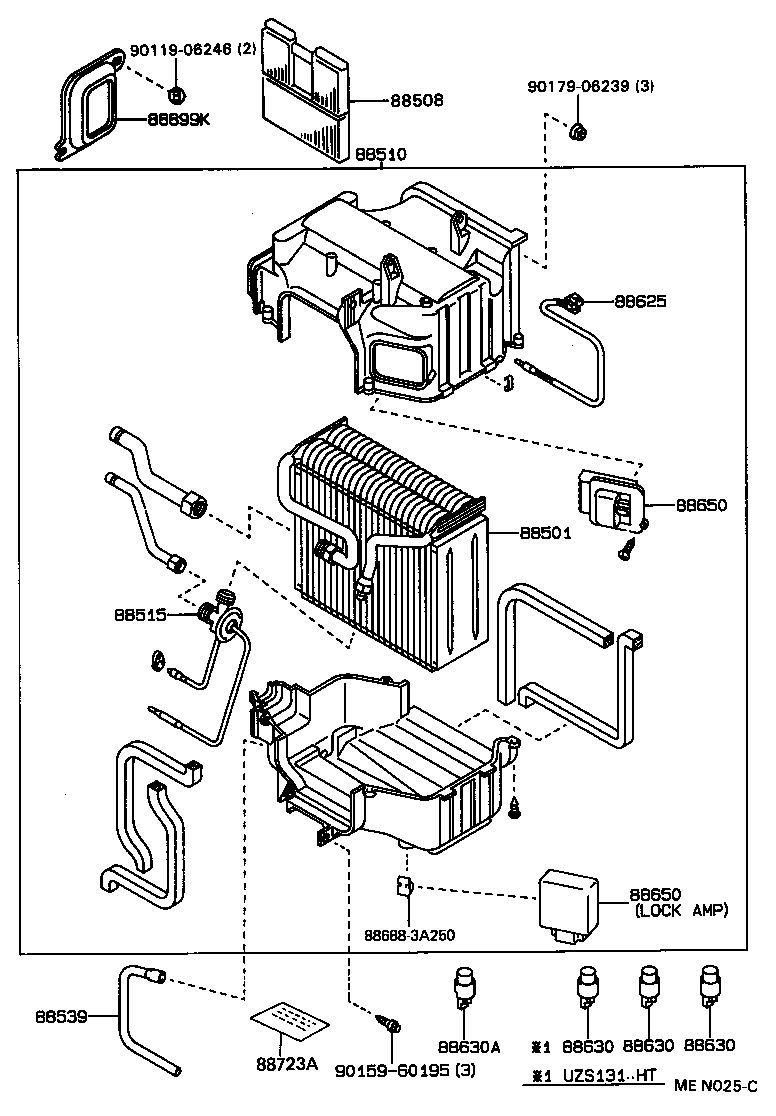

(8709- )SPC ; (8908- )UZS131

Click highlighted areas on diagram

FRONT(MEAKER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS131,JZS131,LS131,MS135 REAR	09/1987 - 01/1991	1
88501-30630	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88501-30620	GS131..HT..4HC REAR	01/1991 - 10/1991	1
88501-30670	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-30010	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 10/1991	1
88510 - UNIT ASSY, COOLER
88510-3A200	GS130,131..ROY..SPC FRONT	09/1987 - 08/1989	1
88510-3A200	GS130,131..SPC FRONT	08/1989 - 08/1990	1
88510-3A180	GS131..ROY..SPC;JZS131,MS135..ROY REAR	09/1987 - 10/1991	1
88510-3A390	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88510-3A191	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1990 - 10/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30331	GS130,131,MS135,137..ROY,ROYG FRONT	11/1988 - 01/1989	1
88515-30330	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 11/1988	1
88515-30310	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..SED..(4H,4HC)..SDX;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC,TWLPG) REAR	01/1991 - 10/1991	1
88515-30332	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL FRONT	08/1989 - 10/1991	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88515-30332	GS130,131,MS135,137..ROY,ROYG FRONT	01/1989 - 08/1989	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88539-30610	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88539-30630	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL) REAR	01/1991 - 10/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-30750	MS130..SDX;LS130..SALEX;LS130..HT..TD;GS130,YS130..EFI,LPG,SPC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..ROY,ROYG,SALEX,SSL,STD	09/1987 - 08/1989	1
88625-30750	GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
90987-02004	GS130,131,MS135..ROY	09/1987 - 08/1989	2
90987-02004	GS130..WG..SDX;GS131..5F..TWC;GS131..SED..(4HC,5F);GS130..DLX,SALEX,STD;GS131..SED..4FC..ROY;GS130..SED..(4H,4HC)..SDX;GS131..HT..ATM..(ROY,SALEX);GS136,JZS131,LS131,MS13#,UZS131,YS130;GS130,131,LS130..(4FC,5F)..(SALEX,SDX,SSL)..(DSL,SPC,TD,TDE,TWLPG)	01/1991 - 10/1991	1
90987-02004	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135	08/1989 - 10/1991	2
90987-02004	GS131,LS130..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,136,JZS131,LS131,MS13#,UZS131,YS130..HTWC,LPEFI,TD,TDE,TWC,TWLPG	08/1989 - 01/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
90987-02004	GS130,131,MS135..ROY	09/1987 - 08/1989	2
90987-02004	GS130..WG..SDX;GS131..5F..TWC;GS131..SED..(4HC,5F);GS130..DLX,SALEX,STD;GS131..SED..4FC..ROY;GS130..SED..(4H,4HC)..SDX;GS131..HT..ATM..(ROY,SALEX);GS136,JZS131,LS131,MS13#,UZS131,YS130;GS130,131,LS130..(4FC,5F)..(SALEX,SDX,SSL)..(DSL,SPC,TD,TDE,TWLPG)	01/1991 - 10/1991	1
90987-02004	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135	08/1989 - 10/1991	2
90987-02004	GS131,LS130..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,136,JZS131,LS131,MS13#,UZS131,YS130..HTWC,LPEFI,TD,TDE,TWC,TWLPG	08/1989 - 01/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
90987-02004	GS130,131,MS135..ROY	09/1987 - 08/1989	2
90987-02004	GS130..WG..SDX;GS131..5F..TWC;GS131..SED..(4HC,5F);GS130..DLX,SALEX,STD;GS131..SED..4FC..ROY;GS130..SED..(4H,4HC)..SDX;GS131..HT..ATM..(ROY,SALEX);GS136,JZS131,LS131,MS13#,UZS131,YS130;GS130,131,LS130..(4FC,5F)..(SALEX,SDX,SSL)..(DSL,SPC,TD,TDE,TWLPG)	01/1991 - 10/1991	1
90987-02004	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135	08/1989 - 10/1991	2
90987-02004	GS131,LS130..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,136,JZS131,LS131,MS13#,UZS131,YS130..HTWC,LPEFI,TD,TDE,TWC,TWLPG	08/1989 - 01/1991	1
88630A - RELAY ASSY, COOLER
88630-87010	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30590	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 08/1989	1
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88650-30590	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1989 - 10/1991	1
88650-30580	GS130,131..SPC..NOB FRONT(LOCK AMP)	09/1987 - 08/1990	1
88650-30540	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135 REAR	08/1990 - 10/1991	1
88650-30580	GS130,131..SPC FRONT(LOCK AMP)	08/1990 - 10/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30590	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 08/1989	1
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88650-30590	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1989 - 10/1991	1
88650-30580	GS130,131..SPC..NOB FRONT(LOCK AMP)	09/1987 - 08/1990	1
88650-30540	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135 REAR	08/1990 - 10/1991	1
88650-30580	GS130,131..SPC FRONT(LOCK AMP)	08/1990 - 10/1991	1
88723A - LABEL, COOLER SERVICE CAUTION
88723-30020	GS131..ROY..SPC;GS130,JZS13#,MS13#,UZS131..ROY,ROYG	08/1989 - 10/1991	1
88899K - PLATE, COVER
88899-30660	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88899-30660	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130	08/1989 - 10/1991	1
Common parts
88688-3A250
90119-06246
90159-60195
90179-06239

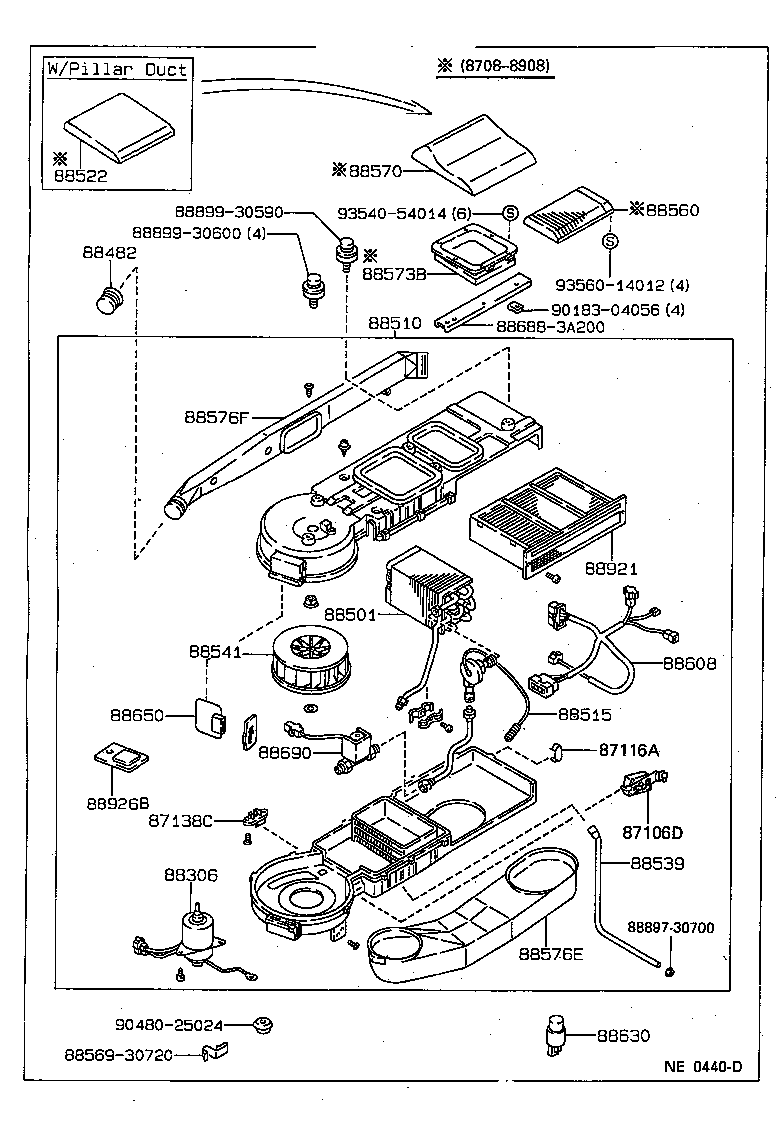

(8709- )GS131..ROY..SPC ; (8709- )JZS131,MS135,137,UZS131..ROY,ROYG

Click highlighted areas on diagram

REAR(MEAKER OPT)

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-30290	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..SED..(4H,4HC)..SDX;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC,TWLPG)	01/1991 - 10/1991	1
87138-30290	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	09/1987 - 01/1991	1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30330	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88550-30330	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88482 - CAP, COOLER
88482-30260	GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB	09/1987 - 10/1991	2
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS131,JZS131,LS131,MS135 REAR	09/1987 - 01/1991	1
88501-30630	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88501-30620	GS131..HT..4HC REAR	01/1991 - 10/1991	1
88501-30670	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88510 - UNIT ASSY, COOLER
88510-3A200	GS130,131..ROY..SPC FRONT	09/1987 - 08/1989	1
88510-3A200	GS130,131..SPC FRONT	08/1989 - 08/1990	1
88510-3A180	GS131..ROY..SPC;JZS131,MS135..ROY REAR	09/1987 - 10/1991	1
88510-3A390	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88510-3A191	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1990 - 10/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30331	GS130,131,MS135,137..ROY,ROYG FRONT	11/1988 - 01/1989	1
88515-30330	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 11/1988	1
88515-30310	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..SED..(4H,4HC)..SDX;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC,TWLPG) REAR	01/1991 - 10/1991	1
88515-30332	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL FRONT	08/1989 - 10/1991	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88515-30332	GS130,131,MS135,137..ROY,ROYG FRONT	01/1989 - 08/1989	1
88522 - DOOR, COOLING UNIT
88522-3045004	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BLUE,TRIM8#	09/1987 - 08/1989	1
88522-3045006	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 08/1989	1
88522-3045002	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88539-30610	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88539-30630	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL) REAR	01/1991 - 10/1991	1
88541 - FAN, BLOWER
88541-30280	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88541-30280	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88560 - GRILLE ASSY, COOLER AIR INLET
88561-3032006	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 08/1989	1
88561-3032002	GS130,131,LS130,MS13#..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
88561-3032004	GS130,131,LS130,MS13#..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLUE,TRIM8#	09/1987 - 08/1989	1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-3065004	MS135,137..WIB;GS131..HT..ROY..SPC;GS130,LS130..SED..SDX BLUE,TRIM8#	09/1987 - 08/1989	1
88570-3065002	MS135,137..WIB;GS131..HT..ROY..SPC;GS130,LS130..SED..SDX MAROON,TRIM3#	09/1987 - 08/1989	1
88573B - BASE, GRILLE
88573-30510	MS135,137..WIB;GS131..HT..ROY..SPC ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/1987 - 08/1989	1
88573-30500	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)	09/1987 - 08/1989	1
88576E - DUCT, COOLER AIR, NO.1
88576-30770	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88576-30770	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88576F - DUCT, COOLER AIR, NO.2
88576-30780	GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)	09/1987 - 01/1991	1
88576-30780	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);JZS131,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX)	01/1991 - 10/1991	1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470	GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)	09/1987 - 01/1991	1
88608-30470	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS135..(HT,SED)..(ROY,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
90987-02004	GS130,131,MS135..ROY	09/1987 - 08/1989	2
90987-02004	GS130..WG..SDX;GS131..5F..TWC;GS131..SED..(4HC,5F);GS130..DLX,SALEX,STD;GS131..SED..4FC..ROY;GS130..SED..(4H,4HC)..SDX;GS131..HT..ATM..(ROY,SALEX);GS136,JZS131,LS131,MS13#,UZS131,YS130;GS130,131,LS130..(4FC,5F)..(SALEX,SDX,SSL)..(DSL,SPC,TD,TDE,TWLPG)	01/1991 - 10/1991	1
90987-02004	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135	08/1989 - 10/1991	2
90987-02004	GS131,LS130..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,136,JZS131,LS131,MS13#,UZS131,YS130..HTWC,LPEFI,TD,TDE,TWC,TWLPG	08/1989 - 01/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30590	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 08/1989	1
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88650-30590	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1989 - 10/1991	1
88650-30580	GS130,131..SPC..NOB FRONT(LOCK AMP)	09/1987 - 08/1990	1
88650-30540	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135 REAR	08/1990 - 10/1991	1
88650-30580	GS130,131..SPC FRONT(LOCK AMP)	08/1990 - 10/1991	1
88690 - VALVE ASSY, COOLER MAGNET
88691-30510	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88691-30510	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88921 - FILTER, AIR PURIFIER, NO.1
88926-30100	MS135,137;GS131..ROY..SPC	09/1987 - 08/1989	1
88926-30100	GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG	08/1989 - 10/1989	1
88926-30101	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG	10/1989 - 10/1991	1
88926B - FILTER, AIR PURIFIER
88926-30120	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG	09/1987 - 10/1991	1
Common parts
88569-30720
88688-3A200
88897-30700
88899-30590
88899-30600
90183-04056
90480-25024
93540-54014
93560-14012

(8709- )

Click highlighted areas on diagram

FRONT(DEALER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS131,JZS131,LS131,MS135 REAR	09/1987 - 01/1991	1
88501-30630	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88501-30620	GS131..HT..4HC REAR	01/1991 - 10/1991	1
88501-30670	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-30010	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 10/1991	1
88510 - UNIT ASSY, COOLER
88510-3A200	GS130,131..ROY..SPC FRONT	09/1987 - 08/1989	1
88510-3A200	GS130,131..SPC FRONT	08/1989 - 08/1990	1
88510-3A180	GS131..ROY..SPC;JZS131,MS135..ROY REAR	09/1987 - 10/1991	1
88510-3A390	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88510-3A191	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1990 - 10/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30331	GS130,131,MS135,137..ROY,ROYG FRONT	11/1988 - 01/1989	1
88515-30330	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 11/1988	1
88515-30310	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..SED..(4H,4HC)..SDX;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC,TWLPG) REAR	01/1991 - 10/1991	1
88515-30332	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL FRONT	08/1989 - 10/1991	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88515-30332	GS130,131,MS135,137..ROY,ROYG FRONT	01/1989 - 08/1989	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88539-30610	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88539-30630	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL) REAR	01/1991 - 10/1991	1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470	GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)	09/1987 - 01/1991	1
88608-30470	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS135..(HT,SED)..(ROY,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-30750	MS130..SDX;LS130..SALEX;LS130..HT..TD;GS130,YS130..EFI,LPG,SPC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..ROY,ROYG,SALEX,SSL,STD	09/1987 - 08/1989	1
88625-30750	GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
90987-02004	GS130,131,MS135..ROY	09/1987 - 08/1989	2
90987-02004	GS130..WG..SDX;GS131..5F..TWC;GS131..SED..(4HC,5F);GS130..DLX,SALEX,STD;GS131..SED..4FC..ROY;GS130..SED..(4H,4HC)..SDX;GS131..HT..ATM..(ROY,SALEX);GS136,JZS131,LS131,MS13#,UZS131,YS130;GS130,131,LS130..(4FC,5F)..(SALEX,SDX,SSL)..(DSL,SPC,TD,TDE,TWLPG)	01/1991 - 10/1991	1
90987-02004	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135	08/1989 - 10/1991	2
90987-02004	GS131,LS130..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,136,JZS131,LS131,MS13#,UZS131,YS130..HTWC,LPEFI,TD,TDE,TWC,TWLPG	08/1989 - 01/1991	1
88630A - RELAY ASSY, COOLER
88630-87010	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30590	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 08/1989	1
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88650-30590	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1989 - 10/1991	1
88650-30580	GS130,131..SPC..NOB FRONT(LOCK AMP)	09/1987 - 08/1990	1
88650-30540	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135 REAR	08/1990 - 10/1991	1
88650-30580	GS130,131..SPC FRONT(LOCK AMP)	08/1990 - 10/1991	1
88899K - PLATE, COVER
88899-30660	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
88899-30660	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130	08/1989 - 10/1991	1
Common parts
88569-30880
88688-3A070
88688-3A080
88899-95A14
90094-90405
90179-08123
93540-14010

(8709- )GS130,131,JZS131,LS130

Click highlighted areas on diagram

REAR(DEALER OPT)

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-30290	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..SED..(4H,4HC)..SDX;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC,TWLPG)	01/1991 - 10/1991	1
87138-30290	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	09/1987 - 01/1991	1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30330	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88550-30330	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88482 - CAP, COOLER
88482-30260	GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB	09/1987 - 10/1991	2
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30620	GS131,JZS131,LS131,MS135 REAR	09/1987 - 01/1991	1
88501-30630	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88501-30620	GS131..HT..4HC REAR	01/1991 - 10/1991	1
88501-30670	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88501-30630	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88510 - UNIT ASSY, COOLER
88510-3A200	GS130,131..ROY..SPC FRONT	09/1987 - 08/1989	1
88510-3A200	GS130,131..SPC FRONT	08/1989 - 08/1990	1
88510-3A180	GS131..ROY..SPC;JZS131,MS135..ROY REAR	09/1987 - 10/1991	1
88510-3A390	GS130..SPC;GS131,JZS130,LS131..NOB;GS130,JZS131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SSL) ｶﾝﾚｲﾁｼﾖｳ,FRONT	08/1990 - 10/1991	1
88510-3A191	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1990 - 10/1991	1
88515 - VALVE, COOLER EXPANSION
88515-30331	GS130,131,MS135,137..ROY,ROYG FRONT	11/1988 - 01/1989	1
88515-30330	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 11/1988	1
88515-30310	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..SED..(4H,4HC)..SDX;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC,TWLPG) REAR	01/1991 - 10/1991	1
88515-30332	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL FRONT	08/1989 - 10/1991	1
88515-30310	GS130..SPC;GS130,LS130..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL);GS131,JZS13#,LS131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 01/1991	1
88515-30332	GS130,131,MS135,137..ROY,ROYG FRONT	01/1989 - 08/1989	1
88522 - DOOR, COOLING UNIT
88522-3045004	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BLUE,TRIM8#	09/1987 - 08/1989	1
88522-3045006	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 08/1989	1
88522-3045002	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610	LS136..STD;LS130..SALEX;GS130..EFI,SPC;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC FRONT	09/1987 - 08/1989	1
88539-30630	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) REAR	09/1987 - 01/1991	1
88539-30610	LS130..SALEX,SDX;GS13#,JZS13#,LS131,MS13#,UZS131,YS130 FRONT	08/1989 - 10/1991	1
88539-30630	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL) REAR	01/1991 - 10/1991	1
88541 - FAN, BLOWER
88541-30280	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88541-30280	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88560 - GRILLE ASSY, COOLER AIR INLET
88561-3032006	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 08/1989	1
88561-3032002	GS130,131,LS130,MS13#..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
88561-3032004	GS130,131,LS130,MS13#..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLUE,TRIM8#	09/1987 - 08/1989	1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-3065004	MS135,137..WIB;GS131..HT..ROY..SPC;GS130,LS130..SED..SDX BLUE,TRIM8#	09/1987 - 08/1989	1
88570-3065002	MS135,137..WIB;GS131..HT..ROY..SPC;GS130,LS130..SED..SDX MAROON,TRIM3#	09/1987 - 08/1989	1
88573B - BASE, GRILLE
88573-30510	MS135,137..WIB;GS131..HT..ROY..SPC ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/1987 - 08/1989	1
88573-30500	GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)	09/1987 - 08/1989	1
88576E - DUCT, COOLER AIR, NO.1
88576-30770	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88576-30770	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88576F - DUCT, COOLER AIR, NO.2
88576-30780	GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)	09/1987 - 01/1991	1
88576-30780	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);JZS131,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX)	01/1991 - 10/1991	1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470	GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)	09/1987 - 01/1991	1
88608-30470	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS135..(HT,SED)..(ROY,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88630 - RELAY ASSY, COOLER
90987-02004	LS136..STD;GS130..EFI;LS130..SALEX;GS131,136,MS13#,YS130;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC	09/1987 - 08/1989	1
90987-02004	GS130,131,MS135..ROY	09/1987 - 08/1989	2
90987-02004	GS130..WG..SDX;GS131..5F..TWC;GS131..SED..(4HC,5F);GS130..DLX,SALEX,STD;GS131..SED..4FC..ROY;GS130..SED..(4H,4HC)..SDX;GS131..HT..ATM..(ROY,SALEX);GS136,JZS131,LS131,MS13#,UZS131,YS130;GS130,131,LS130..(4FC,5F)..(SALEX,SDX,SSL)..(DSL,SPC,TD,TDE,TWLPG)	01/1991 - 10/1991	1
90987-02004	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135	08/1989 - 10/1991	2
90987-02004	GS131,LS130..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,136,JZS131,LS131,MS13#,UZS131,YS130..HTWC,LPEFI,TD,TDE,TWC,TWLPG	08/1989 - 01/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30590	GS130,131,MS135,137..ROY,ROYG FRONT	09/1987 - 08/1989	1
88650-30540	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,131,MS135..ROY,SAL,SALEX,SDX,SPE,SSL REAR	09/1987 - 08/1990	1
88650-30590	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131 FRONT	08/1989 - 10/1991	1
88650-30580	GS130,131..SPC..NOB FRONT(LOCK AMP)	09/1987 - 08/1990	1
88650-30540	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS135 REAR	08/1990 - 10/1991	1
88650-30580	GS130,131..SPC FRONT(LOCK AMP)	08/1990 - 10/1991	1
88690 - VALVE ASSY, COOLER MAGNET
88691-30510	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88691-30510	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88921 - FILTER, AIR PURIFIER, NO.1
88926-30100	MS135,137;GS131..ROY..SPC	09/1987 - 08/1989	1
88926-30100	GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG	08/1989 - 10/1989	1
88926-30101	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG	10/1989 - 10/1991	1
88926B - FILTER, AIR PURIFIER
88926-30120	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG	09/1987 - 10/1991	1
Common parts
88467-30280
88467-30290
88469-30310
88519-30250
88569-30720
88688-3A200
88891-30630
90099-00962
90099-00968
90099-02210
90099-05164
90183-04056
90480-25024
93385-16030
93540-54012

ILLUST NO. 1 OF 4(9110-9308)GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ; (9308- )GS130,13

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

Part #	Description	Period	Qty	Price
Common parts
82711-3A690
87116-14010
88626-33010
88688-3A250
90119-06246
90159-60195
90179-06239
93540-14012
93540-15010

GS131-ATSQR (1987)

(8709- )SPC ; (8908- )UZS131

(8709- )GS131..ROY..SPC ; (8709- )JZS131,MS135,137,UZS131..ROY,ROYG

(8709- )

(8709- )GS130,131,JZS131,LS130

ILLUST NO. 1 OF 4(9110-9308)GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ; (9308- )GS130,13

Part Price Details
