GS131-ATSQR (1987)
Toyota Crown

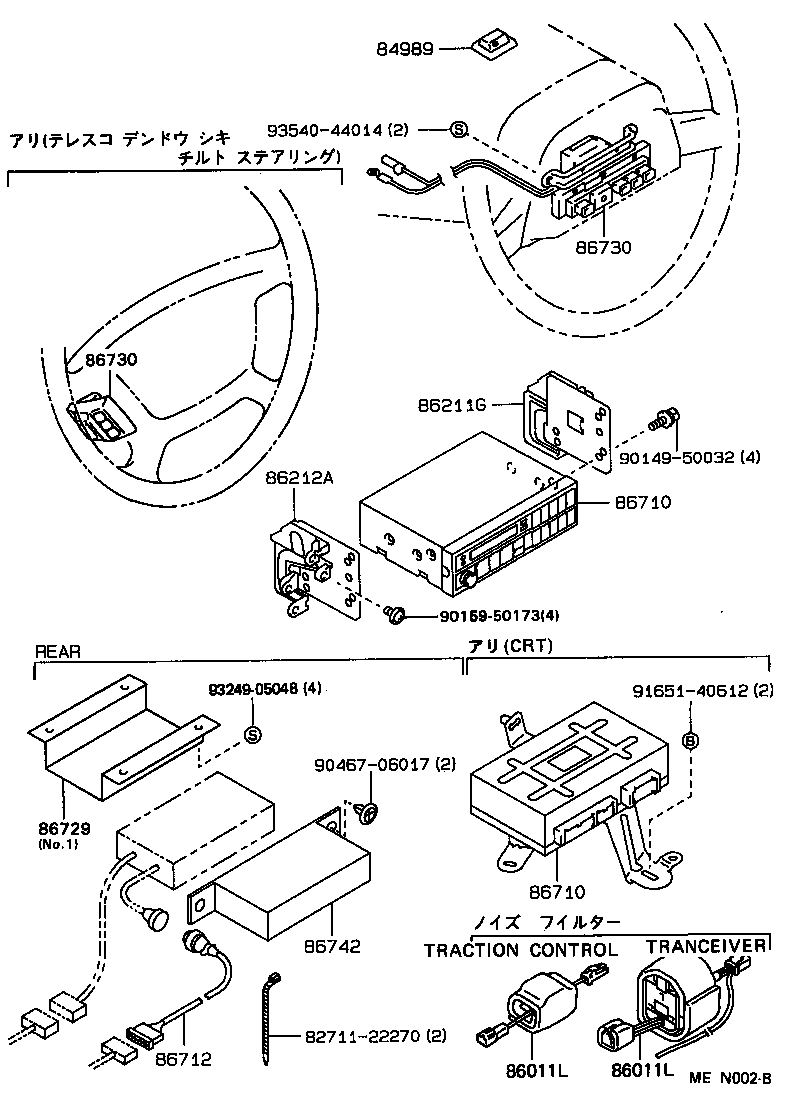

ILLUST NO. 1 OF 2(8709- )ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84989 - SWITCH, STANDBY TELEPHONE | ||||
| 84989-30020 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 84989-30010 |
GS131,MS135,137..ROY,ROYG |
1 | ||
| 86011L - FILTER, NOISE | ||||
| 90980-05202 |
GS131,JZS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) TRACTION CONTROL |
1 | ||
| 90980-05203 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG TRANCEIVER |
1 | ||
| 86011L - FILTER, NOISE | ||||
| 90980-05202 |
GS131,JZS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) TRACTION CONTROL |
1 | ||
| 90980-05203 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG TRANCEIVER |
1 | ||
| 86211G - BRACKET, TELEPHONE COMPUTER, RH | ||||
| 86211-30120 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 86211-30120 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 86211-30120 |
GS131..HT..ROY..SPC;MS13#,UZS131..(ROY,ROYG)..WIB |
1 | ||
| 86212A - BRACKET, TELEPHONE COMPUTER, LH | ||||
| 86212-30110 |
GS131..HT..ROY..SPC;MS13#,UZS131..(ROY,ROYG)..WIB |
1 | ||
| 86212-30110 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 86212-30110 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 86710 - COMPUTER ASSY, TELEPHONE | ||||
| 86710-30062 |
MS135;MS137..4HC;GS131..ROY..SPC |
1 | ||
| 86710-30081 |
GS131,JZS131,MS13#,UZS131..4HC..(ROY,ROYG) |
1 | ||
| 86710-30080 |
MS135;MS137..4HC;GS131..ROY..SPC |
1 | ||
| 86710-30081 |
GS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) |
1 | ||
| 86710 - COMPUTER ASSY, TELEPHONE | ||||
| 86710-30062 |
MS135;MS137..4HC;GS131..ROY..SPC |
1 | ||
| 86710-30081 |
GS131,JZS131,MS13#,UZS131..4HC..(ROY,ROYG) |
1 | ||
| 86710-30080 |
MS135;MS137..4HC;GS131..ROY..SPC |
1 | ||
| 86710-30081 |
GS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) |
1 | ||
| 86712 - WIRE, TELEPHONE | ||||
| 86712-30031 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 86712-30050 |
GS131,JZS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) |
1 | ||
| 86712-30060 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 86712-30050 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG |
1 | ||
| 86729 - BRACKET, MOBILEPHONE | ||||
| 86729-30020 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG NO.1,*74 |
1 | ||
| 86729-30010 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG NO.1 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-30050 |
GS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) |
1 | ||
| 86730-30032 |
MS135,137;GS131..ROY..SPC MATSUSHITA |
1 | ||
| 86730-30050 |
GS131,JZS131,MS13#,UZS131..4HC..(ROY,ROYG) |
1 | ||
| 86730-30023 |
MS135,137;GS131..ROY..SPC NIPPONDENSO |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-30050 |
GS131,MS13#,UZS131..HT..4HC..(ROY,ROYG) |
1 | ||
| 86730-30032 |
MS135,137;GS131..ROY..SPC MATSUSHITA |
1 | ||
| 86730-30050 |
GS131,JZS131,MS13#,UZS131..4HC..(ROY,ROYG) |
1 | ||
| 86730-30023 |
MS135,137;GS131..ROY..SPC NIPPONDENSO |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-30011 |
GS131,JZS131,MS135,137,UZS131..ROY,ROYG |
1 | ||
| 86742-30020 |
GS131,JZS131,MS135,137,UZS131..ROY,ROYG *74 |
1 | ||
| 86742-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90149-50032 | ||||
| 90159-50173 | ||||
| 90467-06017 | ||||
| 91651-40612 | ||||
| 93540-44014 | ||||
| 96249-05048 | ||||

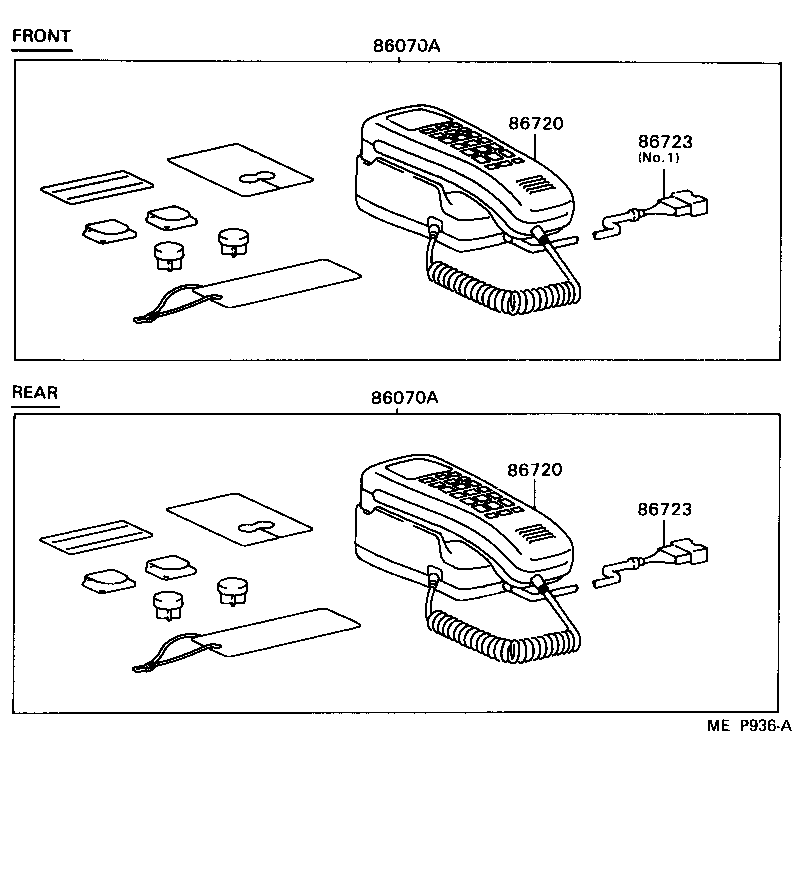

ILLUST NO. 2 OF 2(8903- )GS131,JZS131,MS135,137,UZS131..ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30010 |
GS131..ROY FRONT |
1 | ||
| 86070-30030 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30010 |
GS131..ROY FRONT |
1 | ||
| 86070-30030 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86720 - MOBILEPHONE ASSY | ||||
| 86720-39015 |
GS131..TWC;GS131,MS135,137..4HC..(SPC,TWC) REAR |
1 | ||
| 86720-30050 |
GS131,MS135,137..ROY,ROYG FRONT |
1 | ||
| 86720-30050 |
GS130,131,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86720-39015 |
GS131,MS135,137..ROY,ROYG REAR |
1 | ||
| 86720-30051 |
GS131,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86720-30051 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86720 - MOBILEPHONE ASSY | ||||
| 86720-39015 |
GS131..TWC;GS131,MS135,137..4HC..(SPC,TWC) REAR |
1 | ||
| 86720-30050 |
GS131,MS135,137..ROY,ROYG FRONT |
1 | ||
| 86720-30050 |
GS130,131,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86720-39015 |
GS131,MS135,137..ROY,ROYG REAR |
1 | ||
| 86720-30051 |
GS131,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86720-30051 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30010 |
GS131,MS135,137..ROY,ROYG FRONT |
1 | ||
| 86723-30030 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT,L=825 |
1 | ||
| 86723-30010 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT,L=390 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30010 |
GS131,MS135,137..ROY,ROYG FRONT |
1 | ||
| 86723-30030 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT,L=825 |
1 | ||
| 86723-30010 |
GS130,131,JZS13#,MS13#,UZS131..ROY,ROYG FRONT,L=390 |
1 | ||
