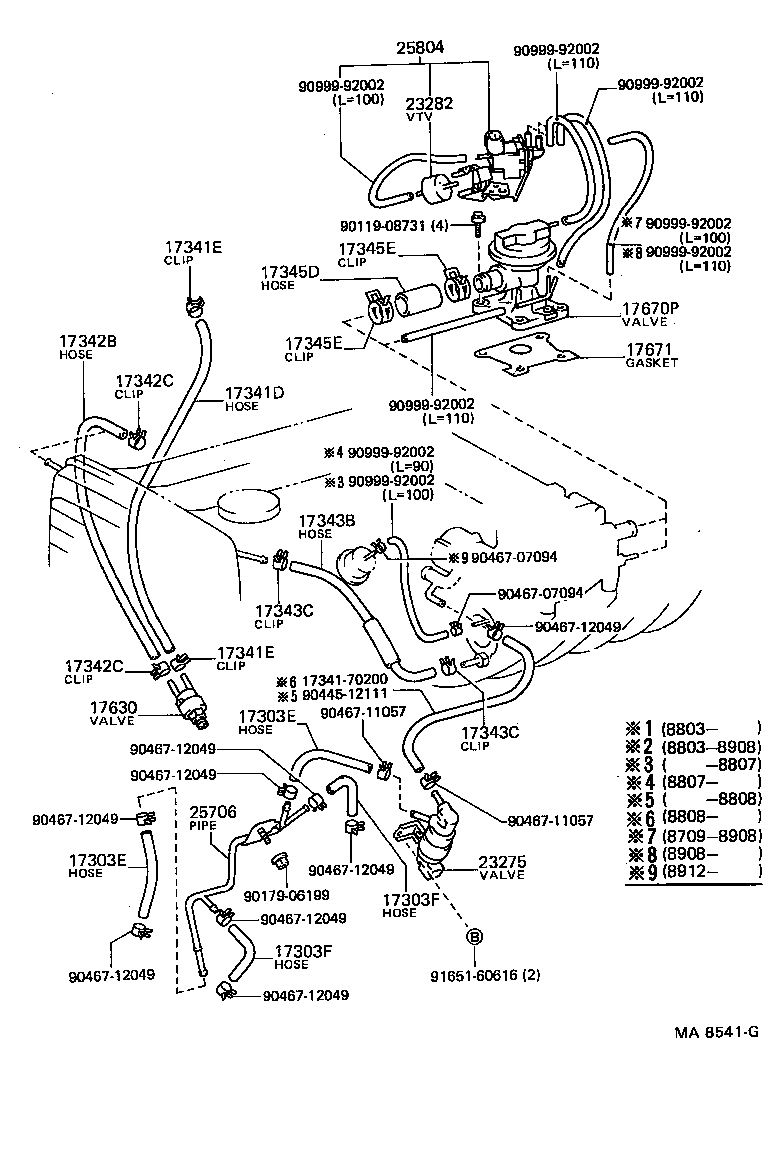

Toyota Crown GS131 VACUUM PIPING

Part #	Description	Period	Qty
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-12161	1GGZE..GS130,131	09/1987 - 10/1991	2
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-12161	1GGZE..GS130,131	09/1987 - 10/1991	2
17303F - HOSE, NO.2(FOR AIR PIPE)
17346-70010	1GGZE..GS130,131	09/1987 - 10/1991	2
17303F - HOSE, NO.2(FOR AIR PIPE)
17346-70010	1GGZE..GS130,131	09/1987 - 10/1991	2
17341D - HOSE, NO.1(FOR IDLE-UP)
90447-10002	1GGZE..GS130,131	09/1987 - 10/1991	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106	1GGZE..GS130,131	10/1989 - 10/1991	2
96132-30400	1GGZE..GS130,131	09/1987 - 09/1988	2
90467-10106	1GGZE..GS130,131	09/1988 - 10/1989	2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106	1GGZE..GS130,131	10/1989 - 10/1991	2
96132-30400	1GGZE..GS130,131	09/1987 - 09/1988	2
90467-10106	1GGZE..GS130,131	09/1988 - 10/1989	2
17342B - HOSE, NO.2(FOR IDLE-UP)
17341-70110	1GGZE..GS130,131	09/1987 - 10/1991	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	1GGZE..GS130,131	09/1987 - 09/1988	2
90467-10106	1GGZE..GS130,131	10/1989 - 10/1991	2
90467-10106	1GGZE..GS130,131	09/1988 - 10/1989	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	1GGZE..GS130,131	09/1987 - 09/1988	2
90467-10106	1GGZE..GS130,131	10/1989 - 10/1991	2
90467-10106	1GGZE..GS130,131	09/1988 - 10/1989	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-70040	1GGZE..GS130,131	09/1987 - 10/1991	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	1GG#..GS130,131	09/1987 - 07/1988	2
96132-30400	1GGZE..GS130,131	07/1988 - 09/1988	2
90467-10106	1GFE..GS136;1GFE,1GGZE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL	09/1988 - 10/1991	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	1GG#..GS130,131	09/1987 - 07/1988	2
96132-30400	1GGZE..GS130,131	07/1988 - 09/1988	2
90467-10106	1GFE..GS136;1GFE,1GGZE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL	09/1988 - 10/1991	2
17345D - HOSE, AIR, NO.5
17345-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5)
90467-34003	1GGZE..GS130,131	09/1987 - 10/1991	2
17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5)
90467-34003	1GGZE..GS130,131	09/1987 - 10/1991	2
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1GFE,1GG#..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL	09/1987 - 08/1989	1
17630-70020	1GFE..GS136;1GFE,1GGZE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL	08/1989 - 10/1991	1
17670P - VALVE ASSY, AIR BY-PASS
17670-70011	1GGZE..GS130,131	09/1987 - 10/1991	1
17671 - GASKET, AIR BY-PASS VALVE
17671-70010	1GGZE..GS130,131 1G=1864949ﾏﾃﾞ	09/1987 - 07/1988	1
23275 - VALVE, VACUUM CONTROL, NO.1
25740-70020	1GGZE..GS130,131	09/1987 - 10/1991	1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01098	1GGZE..GS130,131	09/1987 - 10/1991	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
17303-70030	1GGZE..GS130,131	09/1987 - 10/1991	1
25804 - VALVE SET, VACUUM CONTROL
25804-70020	1GGZE..GS130,131	09/1987 - 10/1991	1
Common parts
17341-70200
90119-08731
90179-06199
90445-12111
90467-07094
90467-11057
90467-12049
90999-92002
91651-60616

GS131-ATSQR (1987)

(8709- )1GGZE

(8709- )1GE,1GFE,1GG#

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
