Toyota Crown GS131 AIR CLEANER - JDM Part Detective

GS131-ATSQR (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 1GGZE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8709- )1GGZE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17478A - PLATE, LOCK
17478-43010	1GE,1GFE,1GGZE,1GGE..GS13#	09/1987 - 10/1991	2
17700 - CLEANER ASSY, AIR
17700-70080	1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131	09/1987 - 10/1991	1
17700 - CLEANER ASSY, AIR
17700-70080	1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131	09/1987 - 10/1991	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-42130	1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131	09/1987 - 10/1991	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020	1GE,1GFE,1GGZE,1GGE..GS13#	09/1987 - 10/1991	1
17856 - GASKET, AIR INTAKE FLANGE
17856-88300	1GG#..GS130,131	09/1987 - 10/1991	1
17856-70030	1GGZE..GS131..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1990 - 10/1991	1
17861 - CONNECTOR, INTAKE AIR
17861-70010	1GGZE..GS130,131	09/1988 - 10/1991	1
17861-88301	1GGZE..GS130,131	09/1987 - 09/1988	1
17861-70040	1GGZE..GS131..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1990 - 10/1991	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70120	1GFE,1GG#..GS13#	09/1987 - 08/1990	1
17875-70160	1GGZE..GS130,131	08/1990 - 10/1991	1
17877 - PIPE, INTAKE AIR CONNECTOR, NO.2
17877-70020	1GGZE..GS130,131	09/1987 - 08/1990	1
17881 - HOSE, AIR CLEANER, NO.1
17881-70140	1GGZE..GS130,131	09/1987 - 08/1990	1
17881-70080	1GG#..GS130,131	08/1990 - 10/1991	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10950	1GG#..GS130,131 NO.1	09/1987 - 10/1991	1
96111-10830	1GG#..GS130,131 NO.2	09/1987 - 10/1991	1
96111-10600	1GGZE..GS130,131 NO.3	09/1987 - 08/1990	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10950	1GG#..GS130,131 NO.1	09/1987 - 10/1991	1
96111-10830	1GG#..GS130,131 NO.2	09/1987 - 10/1991	1
96111-10600	1GGZE..GS130,131 NO.3	09/1987 - 08/1990	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10950	1GG#..GS130,131 NO.1	09/1987 - 10/1991	1
96111-10830	1GG#..GS130,131 NO.2	09/1987 - 10/1991	1
96111-10600	1GGZE..GS130,131 NO.3	09/1987 - 08/1990	1
17882 - HOSE, AIR CLEANER, NO.2
17882-70060	1GFE,1GGZE,1GGE..GS13#	09/1987 - 10/1991	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900	1GGZE,1GGE..GS130,131 NO.2	09/1987 - 10/1991	1
96111-10830	1GGZE,1GGE..GS130,131 NO.1	09/1987 - 10/1991	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900	1GGZE,1GGE..GS130,131 NO.2	09/1987 - 10/1991	1
96111-10830	1GGZE,1GGE..GS130,131 NO.1	09/1987 - 10/1991	1
22250 - METER ASSY, INTAKE AIR FLOW
22250-70180	1GGZE..GS130,131	09/1987 - 10/1991	1
22275 - GASKET, AIR FLOW METER
22275-43010	1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131	09/1987 - 10/1991	1
53299B - DUCT, COOL AIR INTAKE
53299-30160	GS13#..EFI,HTWC,SPC,TWC	09/1987 - 10/1991	1
Common parts
90105-06036
90105-06057
90119-06475
90119-08078
90119-08848
90119-08852
90179-06199
91655-40820
92132-60620

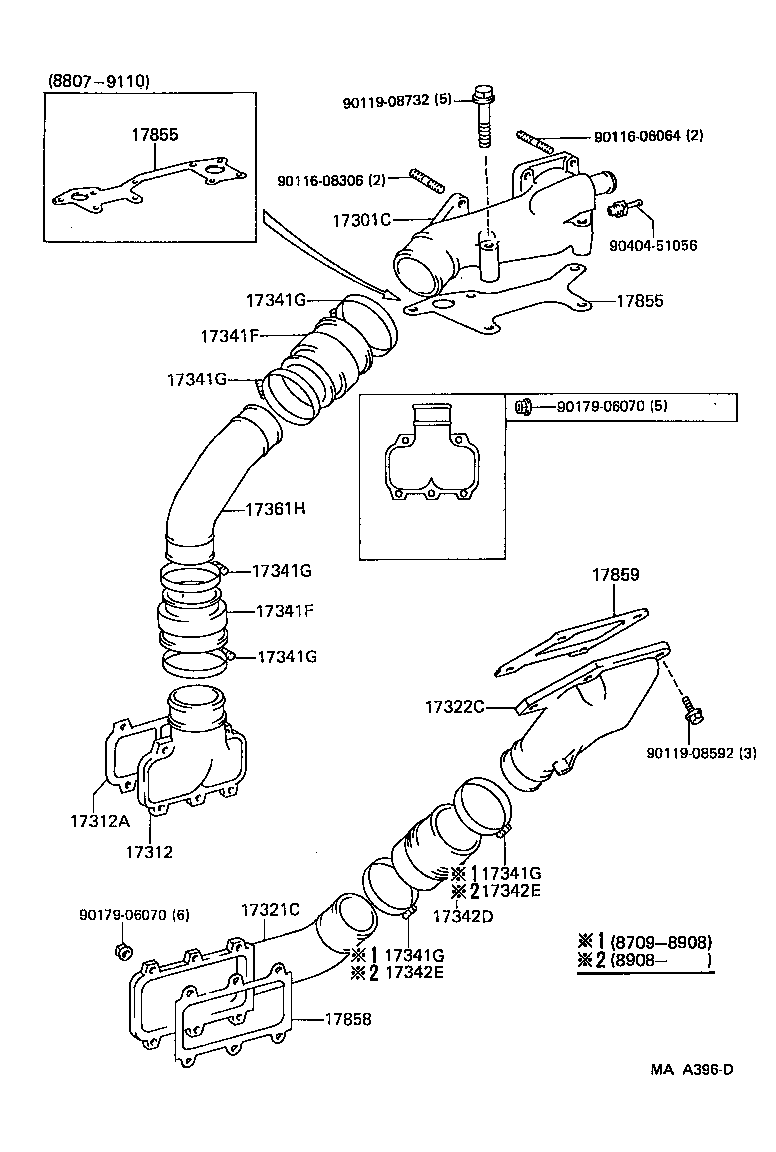

ILLUST NO. 2 OF 2(8709- )1GGZE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17301C - DUCT SUB-ASSY, AIR INLET, NO.1
17301-70011	1GGZE..GS130,131 1G=1864950ｶﾗ	07/1988 - 10/1991	1
17301-70010	1GGZE..GS130,131 1G=1864949ﾏﾃﾞ	09/1987 - 07/1988	1
17312 - DUCT, AIR INLET, NO.2
17312-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17312A - GASKET, AIR INLET DUCT, NO.2
17857-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17321C - DUCT, AIR OUTLET, NO.1
17321-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17322C - DUCT, AIR OUTLET, NO.2
17322-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17341F - HOSE, AIR, NO.1
17341-70070	1GGZE..GS130,131	09/1987 - 10/1991	2
17341F - HOSE, AIR, NO.1
17341-70070	1GGZE..GS130,131	09/1987 - 10/1991	2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002	1GGZE..GS130,131	09/1987 - 08/1989	6
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002	1GGZE..GS130,131	09/1987 - 08/1989	6
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002	1GGZE..GS130,131	09/1987 - 08/1989	6
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002	1GGZE..GS130,131	09/1987 - 08/1989	6
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002	1GGZE..GS130,131	09/1987 - 08/1989	6
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	4
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-77002	1GGZE..GS130,131	09/1987 - 08/1989	6
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	4
17342D - HOSE, AIR, NO.2
17342-70060	1GGZE..GS130,131	09/1987 - 10/1991	1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002	1GGZE..GS130,131	08/1989 - 10/1991	2
17361H - TUBE, AIR(FOR SUPERCHARGER)
17361-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-70020	1GGZE..GS130,131 1G=1864950ｶﾗ	07/1988 - 10/1991	1
17855-70010	1GGZE..GS130,131 1G=1864949ﾏﾃﾞ	09/1987 - 07/1988	1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-70020	1GGZE..GS130,131 1G=1864950ｶﾗ	07/1988 - 10/1991	1
17855-70010	1GGZE..GS130,131 1G=1864949ﾏﾃﾞ	09/1987 - 07/1988	1
17858 - GASKET, AIR OUTLET DUCT, NO.1
17858-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
17859 - GASKET, AIR OUTLET DUCT, NO.2
17859-70010	1GGZE..GS130,131	09/1987 - 10/1991	1
Common parts
90116-06064
90116-08306
90119-08592
90119-08732
90179-06070
90404-51056
