GS131-ATSJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )LS130,131..SALEX

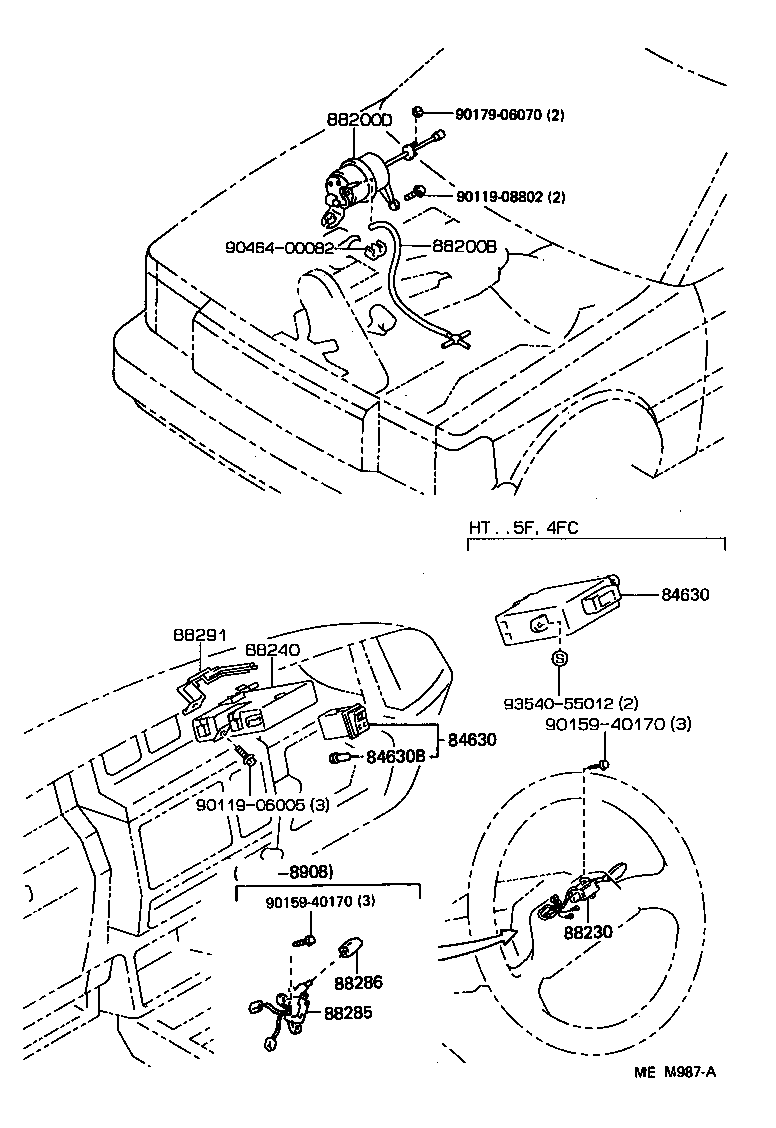

Click highlighted areas on diagram

diagram 84630 84630 84630B 88200B 88200D 88230 88240 88285 88286 88291 9011906005 9011908802 9015940170 9015940170 9017906070 9046400082 9354055012
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-30050

GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-30050

GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)

 1
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10200

GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)

14V 0.56W

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-30070

LS130,131..SALEX

 1
90999-92003

GS130,131..(SAL,SALEX)..EFI

*H,L=330,ﾏｰｸ=#*,NO.1

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-30131

GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX

 1
88200-30130

GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-30160

GS130,131,LS130,MS135,137..(ROY,ROYG,SAL,SALEX)..(EFI,TDE,TWC)

 1
88285 - SWITCH, CRUISE CONTROL
88285-30020

GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX

 1
88286 - KNOB, SPEED CONTROL SWITCH
88286-30030

GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-30070

GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX

 1
Common parts
90119-06005
90119-08802
90159-40170
90179-06070
90464-00082
93540-55012
