GS131-ATSJE (1987)
Toyota Crown
(8709- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-30670 |
GS130,131..HT..(EFI,HTWC) |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09017 |
GS130,131,LS130,MS13#,YS130..HT,SED ﾌﾛﾝﾄ |
2 | ||
| 90541-08009 |
GS130,131,LS130,MS13#,YS130..HT,SED ﾌﾛﾝﾄ |
2 | ||
| 90541-20003 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED ﾘﾔ |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09017 |
GS130,131,LS130,MS13#,YS130..HT,SED ﾌﾛﾝﾄ |
2 | ||
| 90541-08009 |
GS130,131,LS130,MS13#,YS130..HT,SED ﾌﾛﾝﾄ |
2 | ||
| 90541-20003 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED ﾘﾔ |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-30190 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-30030 |
GS130,131,LS130..HT |
1 | ||
| 64503-30030 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64504-30030 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 64504-30030 |
GS130,131,LS130..HT |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-30120 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-30050 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-30180 |
GS130,131,JZS131,LS130,131,MS135,137..HT |
1 | ||
| 64531-30210 |
GS130,131,JZS131,LS130,131,MS135,137..HT ｱﾘ(ﾗｹﾞ-ｼﾞ ﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-30200 |
GS130,131,JZS131,LS130,131,MS135,137..HT ｱﾘ(ﾗｹﾞ-ｼﾞ ﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 64532-30180 |
GS130,131,JZS131,LS130,131,MS135,137..HT |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-11006 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-11006 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-30010 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-30010 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED |
2 | ||
| 64571-30020 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED |
2 | ||
| 64571-30020 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-30070 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-30070 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-30070 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-30070 |
GS131,MS13#,YS130;GS130,LS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-30070 |
GS131,MS13#,YS130;GS130,LS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 69377D - SNAP, DOOR LOCK CONTROL ROD | ||||
| 69377-30031 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90105-06103 | ||||
| 90105-06120 | ||||
| 90119-06136 | ||||
| 90167-50022 | ||||
| 90950-01560 | ||||
| 91661-40612 | ||||
| 93567-55016 | ||||

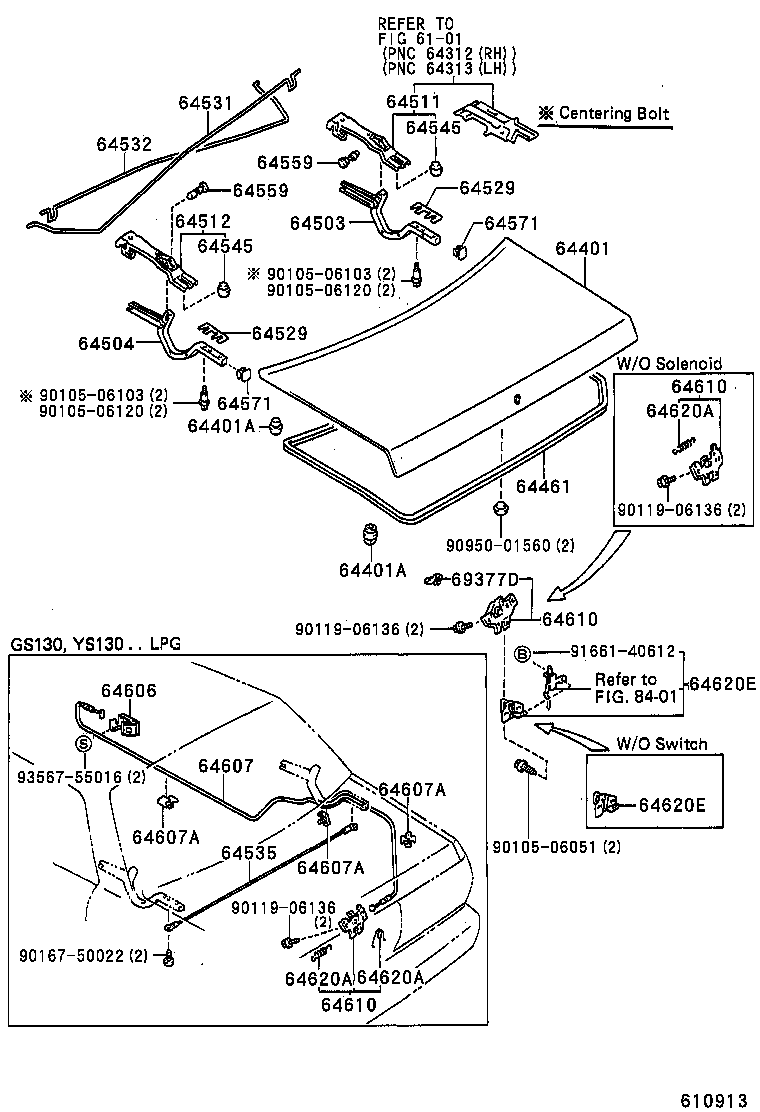

| Linked diagrams | ||||
| 6101 | ||||
