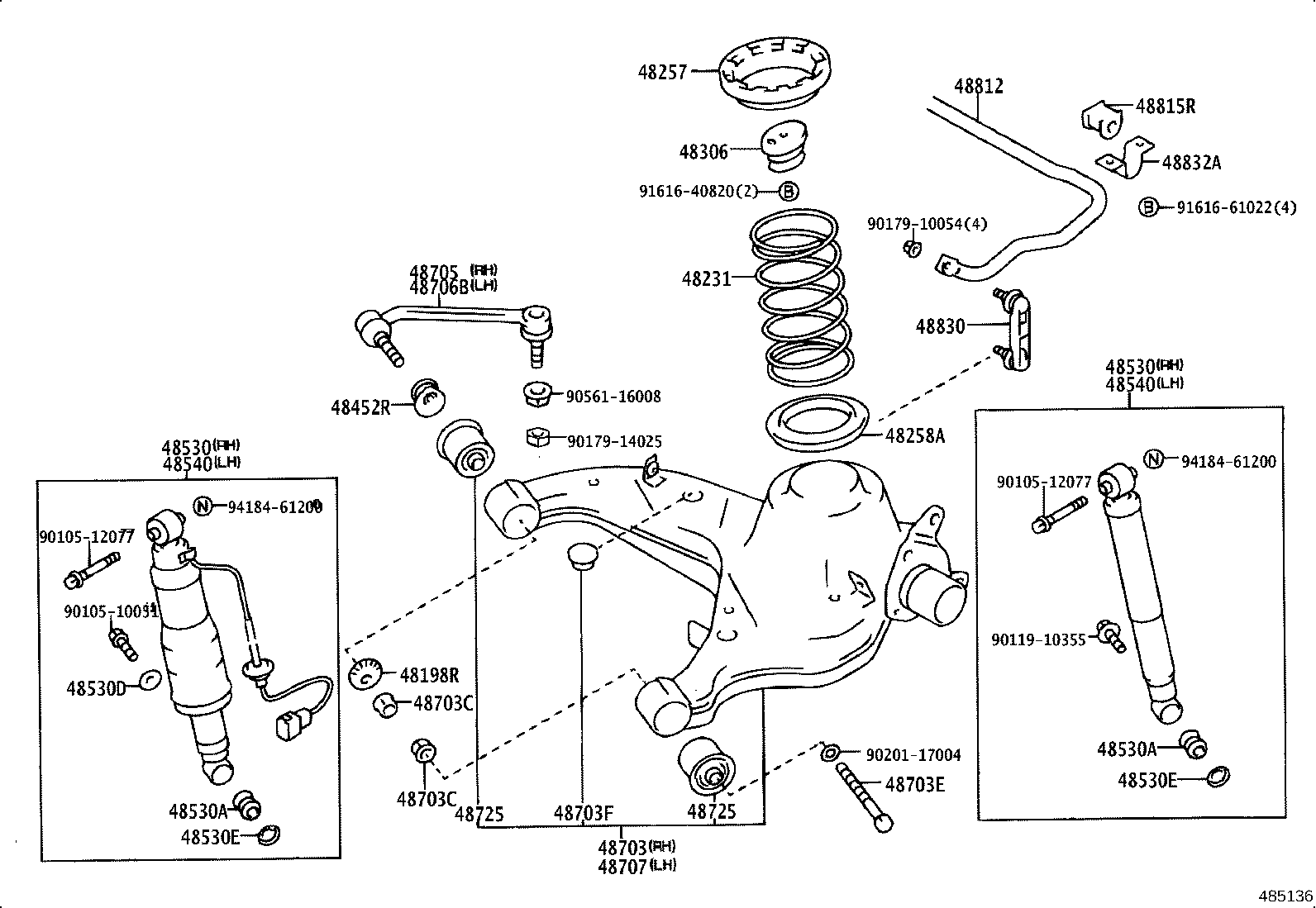

GS131-ATSJE (1987)
Toyota Crown
(8709- )GS131,JZS131,LS131,MS135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-30520 |
GS131;MS135..WIB |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-30040 |
GS131,JZS131,LS131,MS135 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-30020 |
GS131,JZS131,LS131,MS135 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-30140 |
GS131,LS131;JZS131,MS135..ROY,SSL |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-30020 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39835 |
GS131,LS131;JZS131..ROY,SSL;MS135..ROY..WIB |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39835 |
GS131,LS131;JZS131..ROY,SSL;MS135..ROY..WIB |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
MS135..WIB;GS13#,LS13# ﾅｼ(ｵ-ﾄ ﾚﾍﾞﾗ) |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
MS135..WIB;GS13#,LS13# ﾅｼ(ｵ-ﾄ ﾚﾍﾞﾗ) |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
JZS131..ROY,SSL;MS135..ROY..WIB;GS13#,JZS130,LS13#..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
JZS131..ROY,SSL;MS135..ROY..WIB;GS13#,JZS130,LS13#..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39835 |
GS131,LS131;JZS131..ROY,SSL;MS135..ROY..WIB |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39835 |
GS131,LS131;JZS131..ROY,SSL;MS135..ROY..WIB |
1 | ||
| 48703 - ARM SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48703-30902 |
GS131,MS135 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14025 |
GS131,JZS131,LS131,MS135,137,UZS131 内側 |
2 | ||
| 90179-16010 |
GS131,MS135,137 外側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14025 |
GS131,JZS131,LS131,MS135,137,UZS131 内側 |
2 | ||
| 90179-16010 |
GS131,MS135,137 外側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90101-16017 |
GS131,JZS131,LS131,MS135,137,UZS131 *16X1.5PX105−30 |
2 | ||
| 48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM) | ||||
| 90950-01414 |
GS131,MS135,137 外径=16,高さ=11 |
2 | ||
| 47491-30050 |
GS131,MS135,137 外径=22,高さ=12 |
2 | ||
| 47491-22020 |
GS131,JZS131,LS131,MS135,137,UZS131 外径=16,高さ=9 |
4 | ||
| 90950-01258 |
GS131,MS135,137 外径=22,高さ=8.5 |
10 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-30051 |
GS131,MS135,137 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-30041 |
GS131,MS135,137 |
1 | ||
| 48707 - ARM SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48707-30902 |
GS131,MS135 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-30060 |
GS131,MS135,137 内側 |
2 | ||
| 48725-30070 |
GS131,MS135,137 外側 |
2 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-30060 |
GS131,MS135,137 内側 |
2 | ||
| 48725-30070 |
GS131,MS135,137 外側 |
2 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90105-12077 | ||||
| 90119-10355 | ||||
| 90179-10054 | ||||
| 90179-14025 | ||||
| 90201-17004 | ||||
| 90561-16008 | ||||
| 91616-40820 | ||||
| 91616-61022 | ||||
| 94184-61200 | ||||
