GS131-ATSJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)1GE

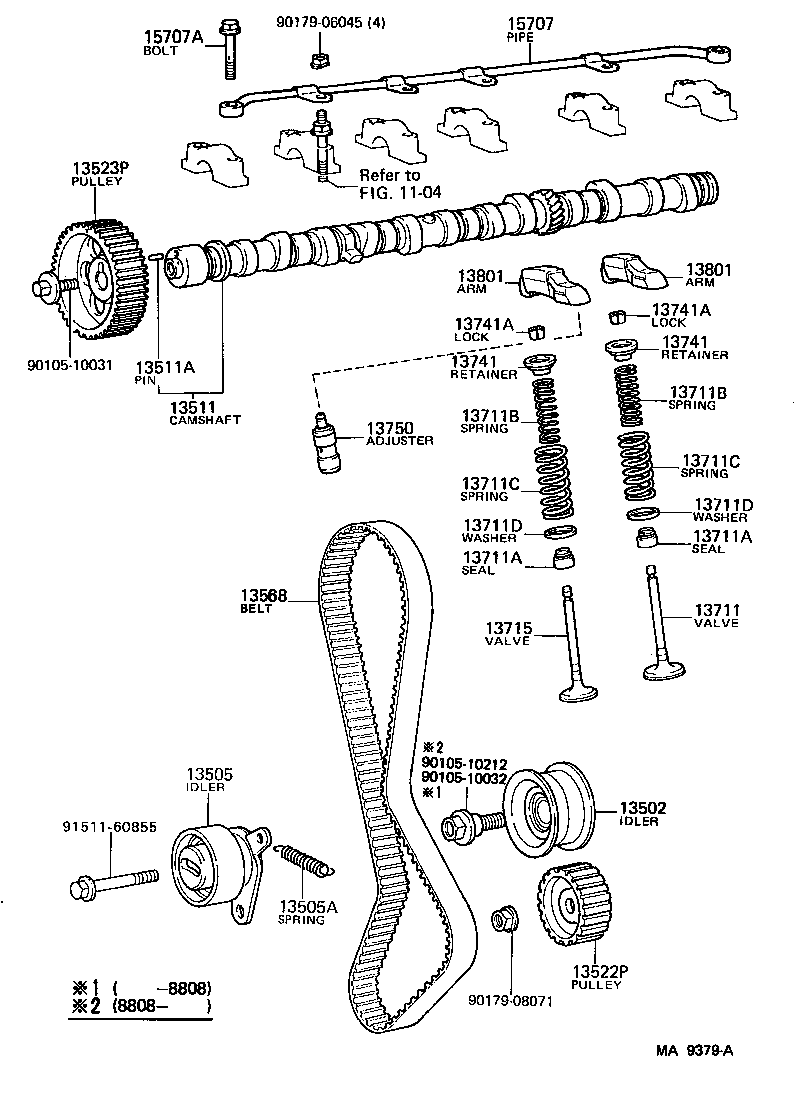

Click highlighted areas on diagram

diagram 1104 13502 13505 13505A 13511 13511A 13522P 13523P 13568 13711 13711A 13711A 13711B 13711B 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13750 13801 13801 15707 15707A 9010510031 9010510032 9010510212 9017906045 9017908071 9151160855
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-70061

1GE..GS13#

 1
13503-63010

1GE..GS13#

 1
13503-70060

1GE,1GFE..GS13#

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-70012

1GE,1GG#..GS13#

 1
13505-70012

1GE,1GGZE..GS13#

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-14034

1GE..GS13#

 1
13511 - CAMSHAFT
13501-70010

1GE..GS13#

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

1GE..GS13#

長さ=15,外径=5

 1
13522P - PULLEY, PUMP DRIVE SHAFT
13524-70030

1GE..GS13#

 1
13523P - PULLEY, CAMSHAFT TIMING
13523-70030

1GE..GS13#

 1
13568 - BELT, TIMING
13568-70030

1GE..GS13#

 1
13711 - VALVE, INTAKE
13711-70010

1GE..GS13#

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02038

1GE..GS13#

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02038

1GE..GS13#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26016

1GE..GS13#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26016

1GE..GS13#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-40006

1GE..GS13#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-40006

1GE..GS13#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16005

1GE..GS13#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16005

1GE..GS13#

 12
13715 - VALVE, EXHAUST
13715-70010

1GE..GS13#

 6
13741 - RETAINER, VALVE SPRING
13741-70010

1GE..GS13#

 12
13741 - RETAINER, VALVE SPRING
13741-70010

1GE..GS13#

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03017

1GE..GS13#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03017

1GE..GS13#

 24
13750 - ADJUSTER ASSY, VALVE LASH
13750-70010

1GE..GS13#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-70020

1GE..GS13#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-70020

1GE..GS13#

 12
15707 - PIPE SUB-ASSY, OIL
15043-70010

1GE..GS13#

 1
15707A - BOLT, UNION(FOR OIL PIPE)
90401-08002

1GE..GS13#

 2
Common parts
90105-10031
90105-10032
90105-10212
90179-06045
90179-08071
91511-60855
Linked diagrams
1104
