GS131-ATPSK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )GS13#..HTWC

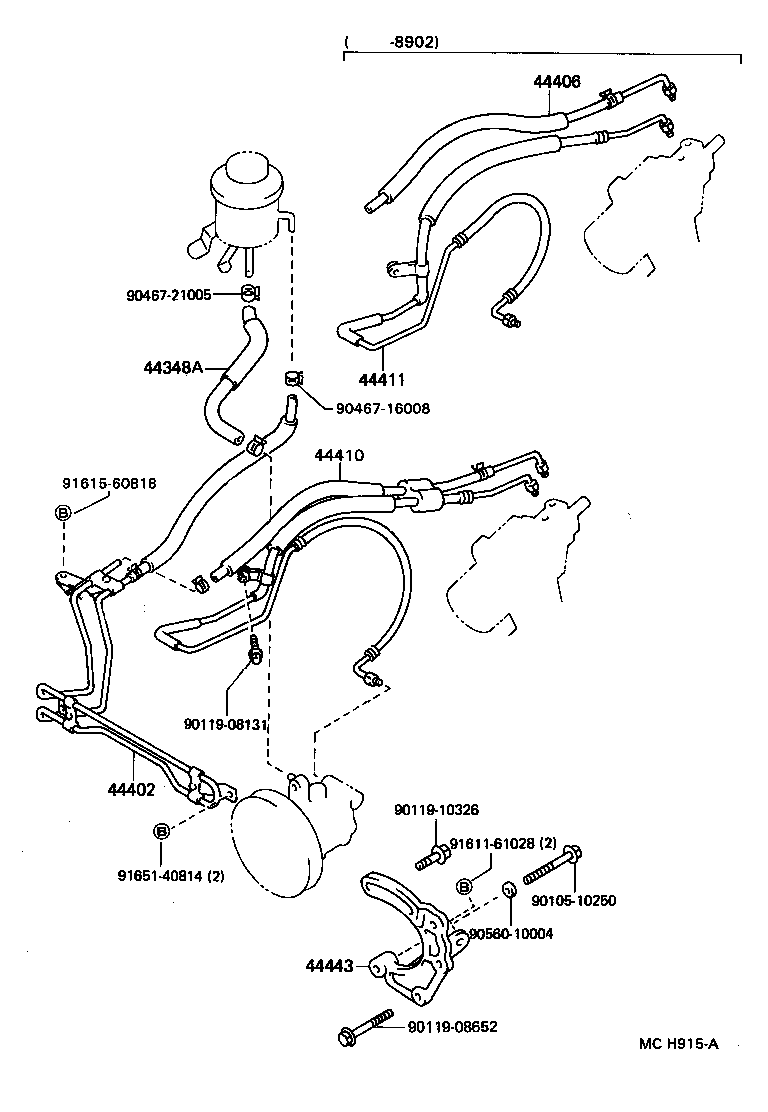

Click highlighted areas on diagram

diagram 44348A 44402 44406 44410 44411 44443 9010510250 9011908131 9011908652 9011910326 9046716008 9046721005 9056010004 9161161028 9161560818 9165140814
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30100

GS130,131..TWC,TWLPG

 1
44348-30120

GS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30130

GS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC

 1
44406 - TUBE SUB-ASSY, RETURN
44406-30050

GS130,131..(DLX,SAL,SALEX,SDX,SPE,SSL)..HTWC

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-30170

GS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC

 1
44411 - HOSE, PRESSURE FEED
44411-30390

GS131..TWC

 1
44411-30460

GS130,131..(DLX,SAL,SALEX,SDX,SPE,SSL)..HTWC

 1
44443 - BRACKET, PUMP
44443-22100

GS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC

 1
44443-22050

GS131..TWC

 1
Common parts
90105-10250
90119-08131
90119-08652
90119-10326
90467-16008
90467-21005
90560-10004
91611-61028
91615-60818
91651-40814
