GS131-ATPQR (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 1GGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )HT

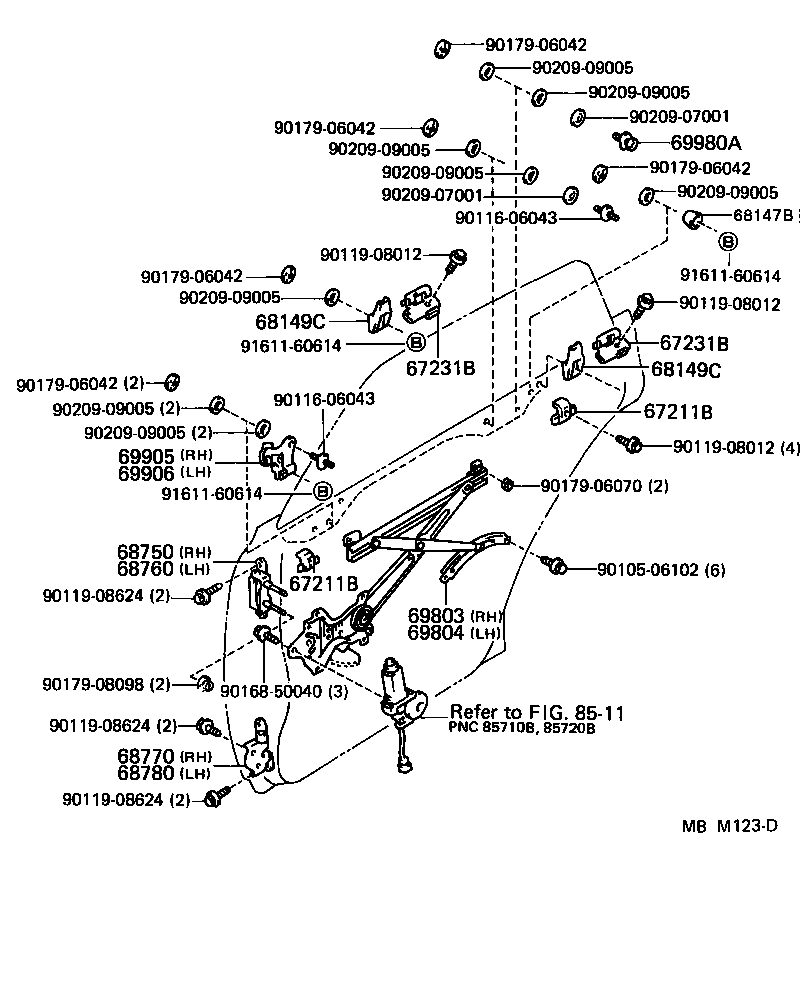

Click highlighted areas on diagram

diagram 67211B 67211B 67231B 67231B 68147B 68149C 68149C 68750 68760 68770 68780 69803 69804 69905 69906 69980A 8511 9010506102 9011606043 9011606043 9011908012 9011908012 9011908012 9011908624 9011908624 9011908624 9016850040 9017906042 9017906042 9017906042 9017906042 9017906042 9017906070 9017908098 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9161160614 9161160614 9161160614
Part # Description Qty Price
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-30090

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-30090

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
67231B - SUPPORT, REAR DOOR TRIM
67231-30020

GS130,131,LS130,MS135,137..HT

 4
67231-30020

GS131,JZS131,LS131,MS13#,UZS131..HT

STAMPED 1

 4
67231-30090

GS131,JZS131,LS131,MS13#,UZS131..HT

 4
67231B - SUPPORT, REAR DOOR TRIM
67231-30020

GS130,131,LS130,MS135,137..HT

 4
67231-30020

GS131,JZS131,LS131,MS13#,UZS131..HT

STAMPED 1

 4
67231-30090

GS131,JZS131,LS131,MS13#,UZS131..HT

 4
68147B - STOP, REAR DOOR GLASS, UPPER
68147-30010

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 2
68149C - STABILIZER, REAR DOOR GLASS MALE
68149-30010

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
68149C - STABILIZER, REAR DOOR GLASS MALE
68149-30010

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-30060

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..NOB

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-30060

GS136,LS136;GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-30040

GS130,131,LS130,131..HT..NOB

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-30050

GS130,131,LS130,131..HT..NOB

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-30180

GS130,131,LS130,MS135,137..HT

 1
69803-30181

GS131,JZS131,LS131,MS13#,UZS131..HT

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-30180

GS130,131,LS130,MS135,137..HT

 1
69804-30181

GS131,JZS131,LS131,MS13#,UZS131..HT

 1
69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69905-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 1
69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69906-30060

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 1
69980A - ROLLER ASSY, REAR DOOR GLASS GUIDE
69980-30040

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 2
Common parts
90105-06102
90116-06043
90119-08012
90119-08624
90168-50040
90179-06042
90179-06070
90179-08098
90209-07001
90209-09005
91611-60614
Linked diagrams
8511
