GS131-ATPQR (1987)
Toyota Crown
(8709- )SPC ; (8709- )JZS13#,MS135,137
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

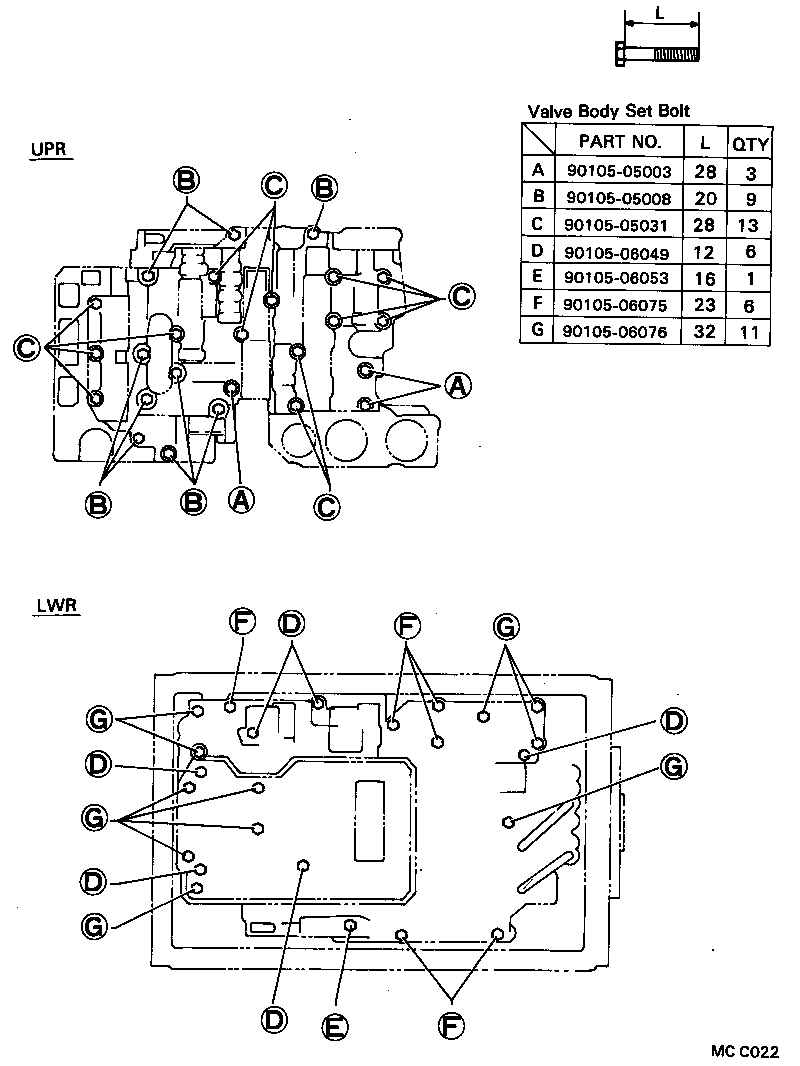

| Common parts | ||||
| 90105-05003 | ||||
| 90105-05008 | ||||
| 90105-05031 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90105-06076 | ||||
(8709- )SPC ; (8709- )JZS13#,MS135,137
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

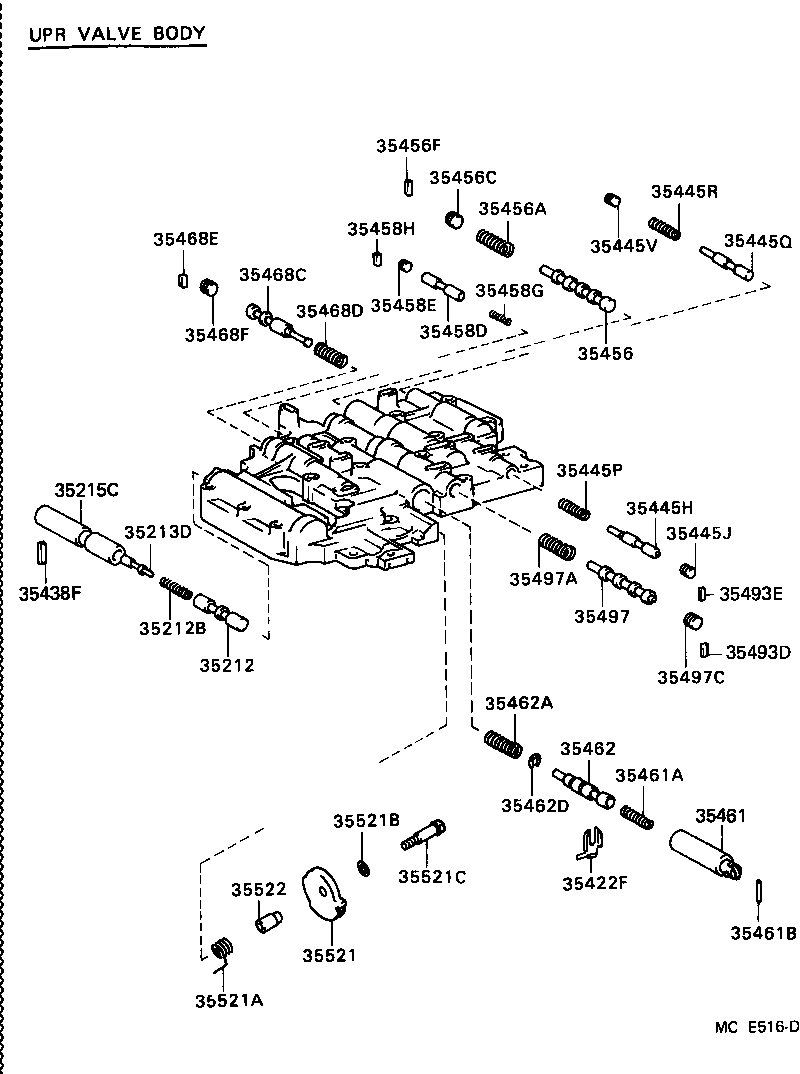

| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-12010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06037 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-30010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-30011 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10140 |
GS130,131..SPC |
1 | ||
| 90501-10140 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-30011 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08101 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 90501-08101 |
GS130,131..SPC |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04002 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
UZS131;GS130,131,JZS13#,MS135,137..ATM..(SPC,TWC) |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30030 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04002 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03003 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-30040 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10119 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35461B - PIN, STRAIGHT (FOR DOWN SHIFT PLUG) | ||||
| 90250-03045 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07051 |
MS135,137;GS130,131..SPC 長さ=20.58 |
1 | ||
| 90501-07051 |
MS13#;GS130,131..SPC 長さ=20.58 |
1 | ||
| 90501-07067 |
GS131..SPC..NOB;GS130,MS135,137..ROY,ROYG 長さ=23.28 |
1 | ||
| 90501-07051 |
JZS13#,MS13#;GS130,131..SPC 長さ=20.58 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
MS135,137;GS130,131..SPC |
6 | ||
| 90523-06023 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-12020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-15007 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 90501-15007 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-22020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05014 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
UZS131;GS130,131,JZS13#,MS135,137..ATM..(SPC,TWC) |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22040 |
GS130,131..SPC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11007 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
GS130,131..ATM..(EFI,SPC,TWLPG);JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
(8709- )SPC ; (8709- )JZS13#,MS135,137
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

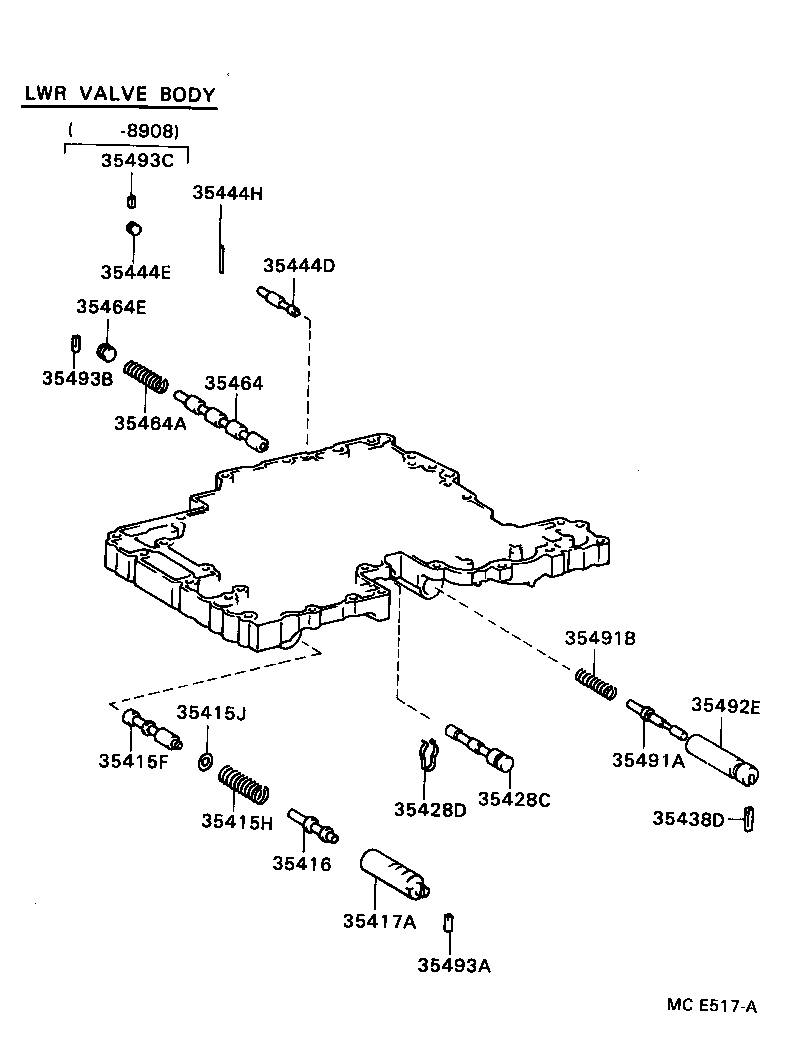

| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30030 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16077 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08021 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-30040 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35416-30040 |
GS130,131..SPC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-30060 |
GS130,131..SPC |
1 | ||
| 35417-30060 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35428C - PLUG, PRESSURE REDUCING | ||||
| 35428-30010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35428D - CLIP (FOR PRESSURE REDUCING PLUG) | ||||
| 90468-05068 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35438D - SEAT, ACCUMULATOR CONTROL VALVE SPRING | ||||
| 35438-22020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35444D - VALVE, RELEASE CONTROL | ||||
| 35444-30010 |
MS135,137;GS130,131..SPC |
1 | ||
| 35444-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35444E - PLUG (FOR RELEASE CONTROL VALVE) | ||||
| 90339-04003 |
MS135,137;GS130,131..SPC |
1 | ||
| 35444H - PIN,STRAIGHT(FOR INTERMEDIATE MODULATOR PLUG) | ||||
| 90250-03045 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08107 |
MS135,137;GS130,131..SPC |
1 | ||
| 90501-08096 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 90501-08096 |
GS130,131..SPC |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-30030 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35493C - SEAT, RELEASE CONTROL VALVE PLUG | ||||
| 35493-30080 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
(8709- )SPC ; (8709- )JZS13#,MS135,137
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

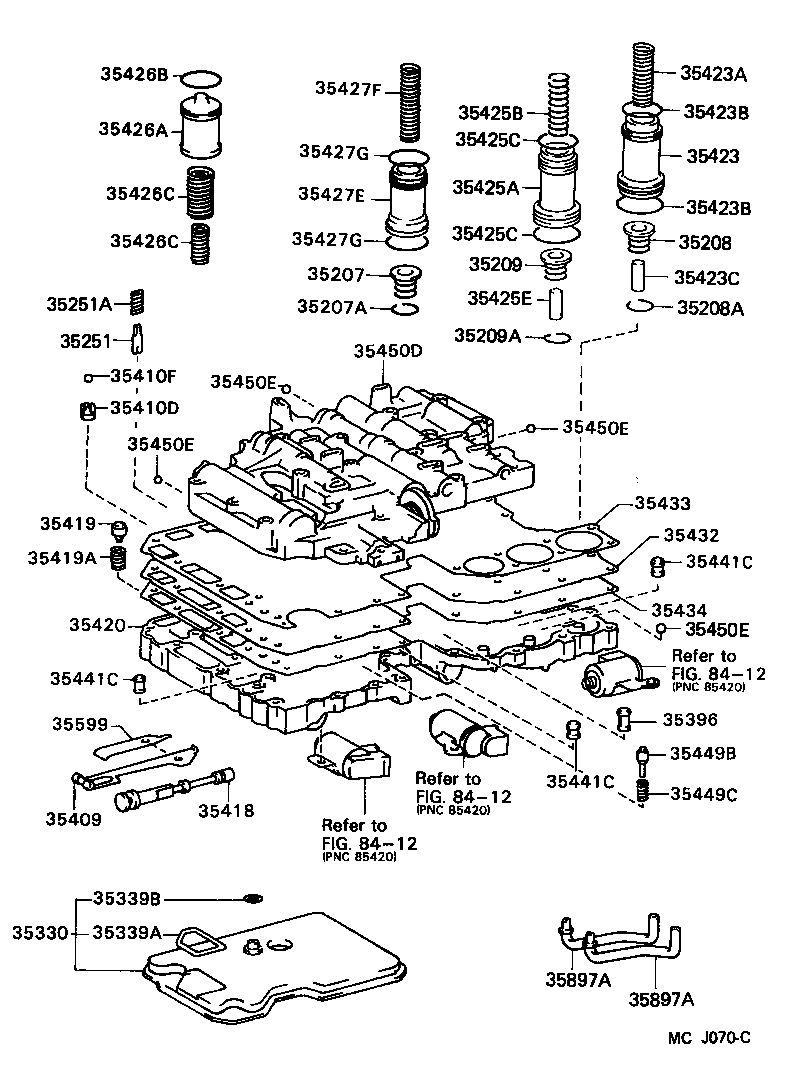

| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35207-22010 |
GS130,131..SPC;JZS13#,MS13#,UZS131 |
1 | ||
| 35207-22010 |
GS130,131..SPC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-22020 |
JZS13#;GS130,131..SPC |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30011 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30070 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35339B - GASKET, OIL STRAINER, NO.2 | ||||
| 90430-10010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-30010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30020 |
MS135,137;GS130,131..SPC |
1 | ||
| 35409-22020 |
GS130,131..SPC;JZS13#,MS13#,UZS131 |
1 | ||
| 35410D - VALVE, CHECK | ||||
| 90917-10073 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30070 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-12030 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10079 |
JZS13#;GS130,131..SPC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-22230 |
GS130,131..SPC |
1 | ||
| 35420-14143 |
GS130,131..SPC |
1 | ||
| 35420-22231 |
GS130,131..SPC |
1 | ||
| 35420-14143 |
JZS13#,MS13#;GS130,131..SPC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
GS130,131..SPC;JZS13#,MS13#,UZS131 |
1 | ||
| 35423-30030 |
MS135,137;GS130,131..SPC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24014 |
JZS13#;GS130,131..SPC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
MS135,137;GS130,131..SPC 上側 |
1 | ||
| 90301-23194 |
MS13#,UZS131;GS130,131..SPC 上側 |
1 | ||
| 90301-31002 |
MS135,137;GS130,131..SPC 下側 |
1 | ||
| 90301-23194 |
GS130,131..SPC;JZS13#,MS13#,UZS131 上側 |
1 | ||
| 90301-31002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 下側 |
1 | ||
| 90301-31002 |
MS13#,UZS131;GS130,131..SPC 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
MS135,137;GS130,131..SPC 上側 |
1 | ||
| 90301-23194 |
MS13#,UZS131;GS130,131..SPC 上側 |
1 | ||
| 90301-31002 |
MS135,137;GS130,131..SPC 下側 |
1 | ||
| 90301-23194 |
GS130,131..SPC;JZS13#,MS13#,UZS131 上側 |
1 | ||
| 90301-31002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 下側 |
1 | ||
| 90301-31002 |
MS13#,UZS131;GS130,131..SPC 下側 |
1 | ||
| 35423C - PIN, STRAIGHT (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90250-14002 |
MS135,137;GS130,131..SPC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
MS135,137;GS130,131..SPC |
1 | ||
| 35425-30020 |
GS130,131..SPC;JZS13#,MS13#,UZS131 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GS131..SPC..NOB;GS130,MS135,137..ROY,ROYG UPR,INNER |
1 | ||
| 90501-21008 |
GS131..SPC..NOB;GS130,MS135,137..ROY,ROYG UPR,OUTER |
1 | ||
| 90501-21008 |
MS13#,UZS131;GS130,131..SPC 外側 |
1 | ||
| 90501-25027 |
GS130,131..SPC;JZS13#,MS13#,UZS131 内側 |
1 | ||
| 90501-21008 |
JZS13#,MS13#;GS130,131..SPC 外側 |
1 | ||
| 90501-25027 |
JZS13#,MS13#;GS130,131..SPC 内側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
MS135,137;GS130,131..SPC |
1 | ||
| 90301-31002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 下側 |
1 | ||
| 90301-25003 |
GS130,131..SPC;JZS13#,MS13#,UZS131 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
MS135,137;GS130,131..SPC |
1 | ||
| 90301-31002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 下側 |
1 | ||
| 90301-25003 |
GS130,131..SPC;JZS13#,MS13#,UZS131 上側 |
1 | ||
| 35425E - PIN, STRAIGHT (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90250-12004 |
MS135,137;GS130,131..SPC |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
MS13#;GS130,131..SPC 内側 |
1 | ||
| 90501-23073 |
JZS13#,MS13#;GS130,131..SPC 外側 |
1 | ||
| 90501-22008 |
JZS13#,MS13#;GS130,131..SPC 内側 |
1 | ||
| 90501-23073 |
MS135,137;GS130,131..SPC 外側 |
1 | ||
| 90501-23073 |
MS13#;GS130,131..SPC 外側 |
1 | ||
| 90501-22008 |
MS135,137;GS130,131..SPC 内側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
MS13#;GS130,131..SPC 内側 |
1 | ||
| 90501-23073 |
JZS13#,MS13#;GS130,131..SPC 外側 |
1 | ||
| 90501-22008 |
JZS13#,MS13#;GS130,131..SPC 内側 |
1 | ||
| 90501-23073 |
MS135,137;GS130,131..SPC 外側 |
1 | ||
| 90501-23073 |
MS13#;GS130,131..SPC 外側 |
1 | ||
| 90501-22008 |
MS135,137;GS130,131..SPC 内側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
MS135,137;GS130,131..SPC |
1 | ||
| 35427-30040 |
GS130,131..SPC;JZS13#,MS13#,UZS131 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
JZS13#;GS130,131..SPC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
MS135,137;GS130,131..SPC 下側 |
1 | ||
| 90301-26002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 下側 |
1 | ||
| 90301-26002 |
MS13#,UZS131;GS130,131..SPC 下側 |
1 | ||
| 90301-20002 |
MS135,137;GS130,131..SPC 上側 |
1 | ||
| 90301-20002 |
MS13#,UZS131;GS130,131..SPC 上側 |
1 | ||
| 90301-20002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 上側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
MS135,137;GS130,131..SPC 下側 |
1 | ||
| 90301-26002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 下側 |
1 | ||
| 90301-26002 |
MS13#,UZS131;GS130,131..SPC 下側 |
1 | ||
| 90301-20002 |
MS135,137;GS130,131..SPC 上側 |
1 | ||
| 90301-20002 |
MS13#,UZS131;GS130,131..SPC 上側 |
1 | ||
| 90301-20002 |
GS130,131..SPC;JZS13#,MS13#,UZS131 上側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22170 |
GS130,131..SPC |
1 | ||
| 35432-22171 |
GS130,131..SPC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30064 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35433-30063 |
MS135,137;GS130,131..SPC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30075 |
MS135,137;GS130,131..SPC |
1 | ||
| 35434-30076 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30030 |
MS135,137;GS130,131..SPC UPR VALVE BODY |
1 | ||
| 35441-30031 |
JZS13#,MS13#;GS130,131..SPC UPR VALVE BODY |
1 | ||
| 35441-30020 |
GS130,131..SPC;JZS13#,MS135,137 LWR VALVE BODY |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30030 |
MS135,137;GS130,131..SPC UPR VALVE BODY |
1 | ||
| 35441-30031 |
JZS13#,MS13#;GS130,131..SPC UPR VALVE BODY |
1 | ||
| 35441-30020 |
GS130,131..SPC;JZS13#,MS135,137 LWR VALVE BODY |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30030 |
MS135,137;GS130,131..SPC UPR VALVE BODY |
1 | ||
| 35441-30031 |
JZS13#,MS13#;GS130,131..SPC UPR VALVE BODY |
1 | ||
| 35441-30020 |
GS130,131..SPC;JZS13#,MS135,137 LWR VALVE BODY |
2 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 35450D - BODY ASSY, UPPER VALVE | ||||
| 35450-22030 |
GS130,131..SPC |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22010 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35496-22030 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
JZS13#,MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 90360-07001 |
MS135,137;GS130,131..SPC 外径=7.14,ｽﾁｰﾙ |
1 | ||
| 35495-22020 |
JZS13#;GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22010 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35496-22030 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
JZS13#,MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 90360-07001 |
MS135,137;GS130,131..SPC 外径=7.14,ｽﾁｰﾙ |
1 | ||
| 35495-22020 |
JZS13#;GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22010 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35496-22030 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
JZS13#,MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 90360-07001 |
MS135,137;GS130,131..SPC 外径=7.14,ｽﾁｰﾙ |
1 | ||
| 35495-22020 |
JZS13#;GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22010 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35496-22030 |
MS135,137;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
JZS13#,MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
MS13#;GS130,131..SPC 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 90360-07001 |
MS135,137;GS130,131..SPC 外径=7.14,ｽﾁｰﾙ |
1 | ||
| 35495-22020 |
JZS13#;GS130,131..SPC 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
GS130,131..SPC;JZS13#,MS13#,UZS131 |
1 | ||
| 35599-30020 |
MS135,137;GS130,131..SPC |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
2 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
GS130,131..SPC;JZS13#,MS135,137 |
2 | ||
| Linked diagrams | ||||
| 8412 | ||||
ILLUST NO. 1 OF 4(9110-9609)JZS130,131,LS130,131 ; (9609- )LS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 4(9110-9609)JZS130,131,LS130,131 ; (9609- )LS130
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 4(9110-9609)JZS130,131,LS130,131 ; (9609- )LS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05008 | ||||
| 90105-05031 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90105-06076 | ||||
ILLUST NO. 3 OF 4(9110-9609)JZS130,131,LS130,131 ; (9609- )LS130
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
