GS131-ATPQR (1987)
Toyota Crown

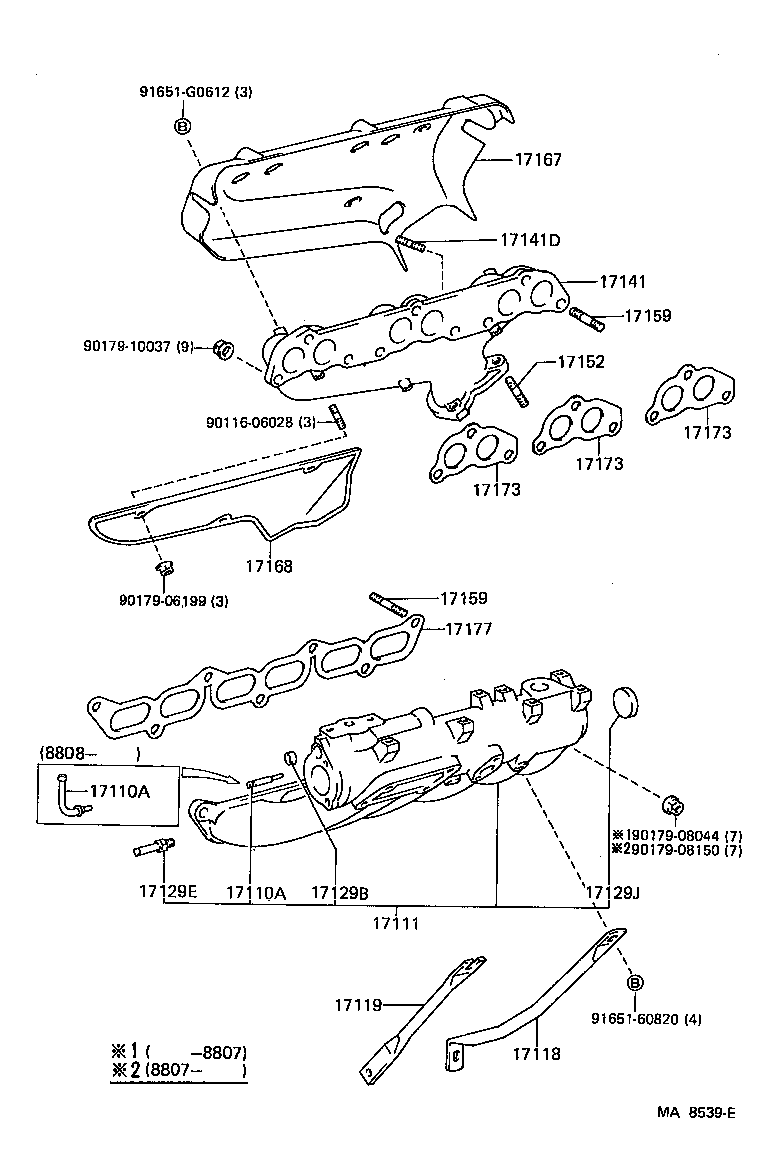

ILLUST NO. 1 OF 2(8709- )1GGZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110A - UNION, VACUUM HOSE | ||||
| 90406-04006 |
1GGZE..GS130,131 1G=1879381ｶﾗ |
1 | ||
| 90405-04002 |
1GGZE..GS130,131 1G=1879380ﾏﾃﾞ |
1 | ||
| 17110A - UNION, VACUUM HOSE | ||||
| 90406-04006 |
1GGZE..GS130,131 1G=1879381ｶﾗ |
1 | ||
| 90405-04002 |
1GGZE..GS130,131 1G=1879380ﾏﾃﾞ |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-70030 |
1GGZE..GS130,131 |
1 | ||
| 17101-70031 |
1GGZE..GS130,131 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70040 |
1GGZE..GS130,131 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-88301 |
1GGZE..GS130,131 |
1 | ||
| 17139-70040 |
1GGZE..GS130,131 |
1 | ||
| 17129B - PLUG | ||||
| 96411-11600 |
1GGZE..GS130,131 |
2 | ||
| 96411-21600 |
1GGZE..GS130,131 |
2 | ||
| 96411-11600 |
1GGZE..GS130,131 |
2 | ||
| 17129E - UNION, NO.3 | ||||
| 90404-51026 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-33500 |
1GGZE..GS130,131 外径=35 |
2 | ||
| 96411-43500 |
1GGZE..GS130,131 外径=35 |
2 | ||
| 96411-43500 |
1GGZE..GS130,131 外径=35 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-70050 |
1GGP,1GGZE..GS130,131 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
1GE,1GFE,1GGP,1GGZE..GS13# |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
1GE,1GG#..GS13# |
3 | ||
| 90116-10146 |
1GE,1GFE,1GGZE..GS13# |
3 | ||
| 90116-10146 |
1GE,1GFE,1GGP,1GGZE..GS13# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08225 |
1GGP,1GGZE..GS130,131 INTAKE MANIFOLD |
7 | ||
| 90116-10063 |
1GFE,1GG#..GS13# EXHAUST MANIFOLD |
9 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08225 |
1GGP,1GGZE..GS130,131 INTAKE MANIFOLD |
7 | ||
| 90116-10063 |
1GFE,1GG#..GS13# EXHAUST MANIFOLD |
9 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-70020 |
1GGZE..GS130,131 |
1 | ||
| 17167-70030 |
1GGP,1GGZE..GS130,131 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-88300 |
1GFE,1GG#..GS13# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70031 |
1GGP,1GGZE..GS130,131 |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70031 |
1GGP,1GGZE..GS130,131 |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70031 |
1GGP,1GGZE..GS130,131 |
3 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-88301 |
1GGZE..GS130,131 |
1 | ||
| 17177-88302 |
1GG#..GS130,131 |
1 | ||
| Common parts | ||||
| 90116-06028 | ||||
| 90179-06199 | ||||
| 90179-08044 | ||||
| 90179-08150 | ||||
| 90179-10037 | ||||
| 91651-60820 | ||||
| 91651-G0612 | ||||

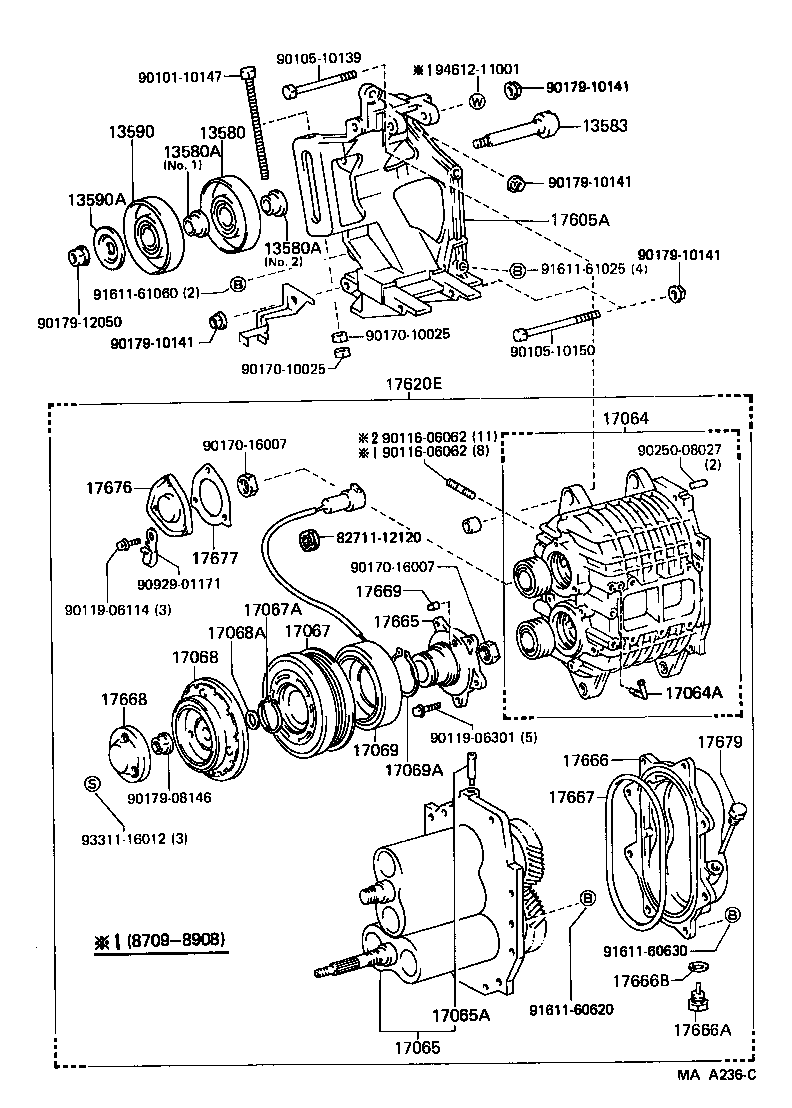

ILLUST NO. 2 OF 2(8709- )1GGZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13580 - IDLER ASSY, V-RIBBED, NO.2(FOR SUPERCHARGER) | ||||
| 13580-70011 |
1GGZE..GS130,131 |
1 | ||
| 13580A - SPACER(FOR SUPERCHARGER V-RIBBED IDLER) | ||||
| 90560-20020 |
1GGZE..GS130,131 NO.1 |
1 | ||
| 90561-14003 |
1GGZE..GS130,131 NO.2 |
1 | ||
| 13580A - SPACER(FOR SUPERCHARGER V-RIBBED IDLER) | ||||
| 90560-20020 |
1GGZE..GS130,131 NO.1 |
1 | ||
| 90561-14003 |
1GGZE..GS130,131 NO.2 |
1 | ||
| 13583 - SHAFT, IDLER, V-RIBBED BELT(FOR SUPERCHARGER) | ||||
| 13583-70010 |
1GGZE..GS130,131 |
1 | ||
| 13590 - IDLER ASSY, V-RIBBED, NO.3(FOR SUPERCHARGER) | ||||
| 13590-70010 |
1GGZE..GS130,131 |
1 | ||
| 13590A - WASHER(FOR SUPERCHARGER V-RIBBED IDLER) | ||||
| 90209-13007 |
1GGZE..GS130,131 |
1 | ||
| 17064 - HOUSING SUB-ASSY, ROTOR | ||||
| 17064-70011 |
1GGZE..GS130,131 |
1 | ||
| 17064A - ELBOW(FOR SUPERCHARGER) | ||||
| 90407-06004 |
1GGZE..GS130,131 |
2 | ||
| 17065 - PLATE SUB-ASSY, ROTOR HOUSING, RR | ||||
| 17065-70011 |
1GGZE..GS130,131 |
1 | ||
| 17065A - UNION(FOR SUPERCHARGER) | ||||
| 90406-06002 |
1GGZE..GS130,131 |
1 | ||
| 17067 - PULLEY SUB-ASSY, CLUTCH | ||||
| 17067-70010 |
1GGZE..GS130,131 |
1 | ||
| 17067A - RING, SHAFT SNAP(FOR CLUTCH PULLEY SUB-ASSY) | ||||
| 90520-37003 |
1GGZE..GS130,131 |
1 | ||
| 17068 - HUB SUB-ASSY, CLUTCH | ||||
| 17068-70010 |
1GGZE..GS130,131 |
1 | ||
| 17068A - SHIM(FOR SUPERCHARGER) | ||||
| 90564-08002 |
1GGZE..GS130,131 厚さ=0.3,ﾏｰｸ 2 |
1 | ||
| 90564-08006 |
1GGZE..GS130,131 厚さ=1.1,ﾏｰｸ 6 |
1 | ||
| 90564-08001 |
1GGZE..GS130,131 厚さ=0.1,ﾏｰｸ 1 |
1 | ||
| 90564-08005 |
1GGZE..GS130,131 厚さ=0.9,ﾏｰｸ 5 |
1 | ||
| 90564-08003 |
1GGZE..GS130,131 厚さ=0.5,ﾏｰｸ 3 |
1 | ||
| 90564-08004 |
1GGZE..GS130,131 厚さ=0.7,ﾏｰｸ 4 |
1 | ||
| 17069 - STATOR SUB-ASSY, CLUTCH | ||||
| 17069-70010 |
1GGZE..GS130,131 |
1 | ||
| 17069A - RING, SHAFT SNAP(FOR CLUTCH STATOR SUB-ASSY) | ||||
| 90520-46003 |
1GGZE..GS130,131 |
1 | ||
| 17605A - BRACKET, SUB-ASSY, SUPERCHARGER | ||||
| 17605-70010 |
1GGZE..GS130,131 |
1 | ||
| 17620E - SUPERCHARGER ASSY | ||||
| 17620-70011 |
1GGZE..GS130,131 |
1 | ||
| 17665 - FLANGE, CLUTCH | ||||
| 17665-70010 |
1GGZE..GS130,131 |
1 | ||
| 17666 - COVER, REAR(FOR SUPERCHARGER) | ||||
| 17666-70010 |
1GGZE..GS130,131 |
1 | ||
| 17666A - PLUG SUB-ASSY, W/HEAD STRAIGHT SCREW(FOR SUPERCHARGER) | ||||
| 90341-12019 |
1GGZE..GS130,131 |
1 | ||
| 17666B - GASKET, SEAT(FOR SUPERCHARGER) | ||||
| 90430-12005 |
1GGZE..GS130,131 |
2 | ||
| 17667 - GASKET, REAR COVER(FOR SUPERCHARGER) | ||||
| 17667-70010 |
1GGZE..GS130,131 |
1 | ||
| 17668 - COVER, CLUTCH HUB | ||||
| 17668-70010 |
1GGZE..GS130,131 |
1 | ||
| 17669 - PIN, CLUTCH | ||||
| 17669-70010 |
1GGZE..GS130,131 |
1 | ||
| 17676 - COVER, HOUSING, FRONT | ||||
| 17676-16011 |
1GGZE..GS130,131 |
1 | ||
| 17677 - GASKET, HOUSING FRONT COVER | ||||
| 17677-70010 |
1GGZE..GS130,131 |
1 | ||
| 17679 - GAGE, SUPERCHARGER OIL LEVEL | ||||
| 17679-70010 |
1GGZE..GS130,131 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90101-10147 | ||||
| 90105-10139 | ||||
| 90105-10150 | ||||
| 90116-06062 | ||||
| 90119-06114 | ||||
| 90119-06301 | ||||
| 90170-10025 | ||||
| 90170-16007 | ||||
| 90179-08146 | ||||
| 90179-10141 | ||||
| 90179-12050 | ||||
| 90250-08027 | ||||
| 90929-01171 | ||||
| 91611-60620 | ||||
| 91611-60630 | ||||
| 91611-61025 | ||||
| 91611-61060 | ||||
| 93311-16012 | ||||
| 94612-11001 | ||||
