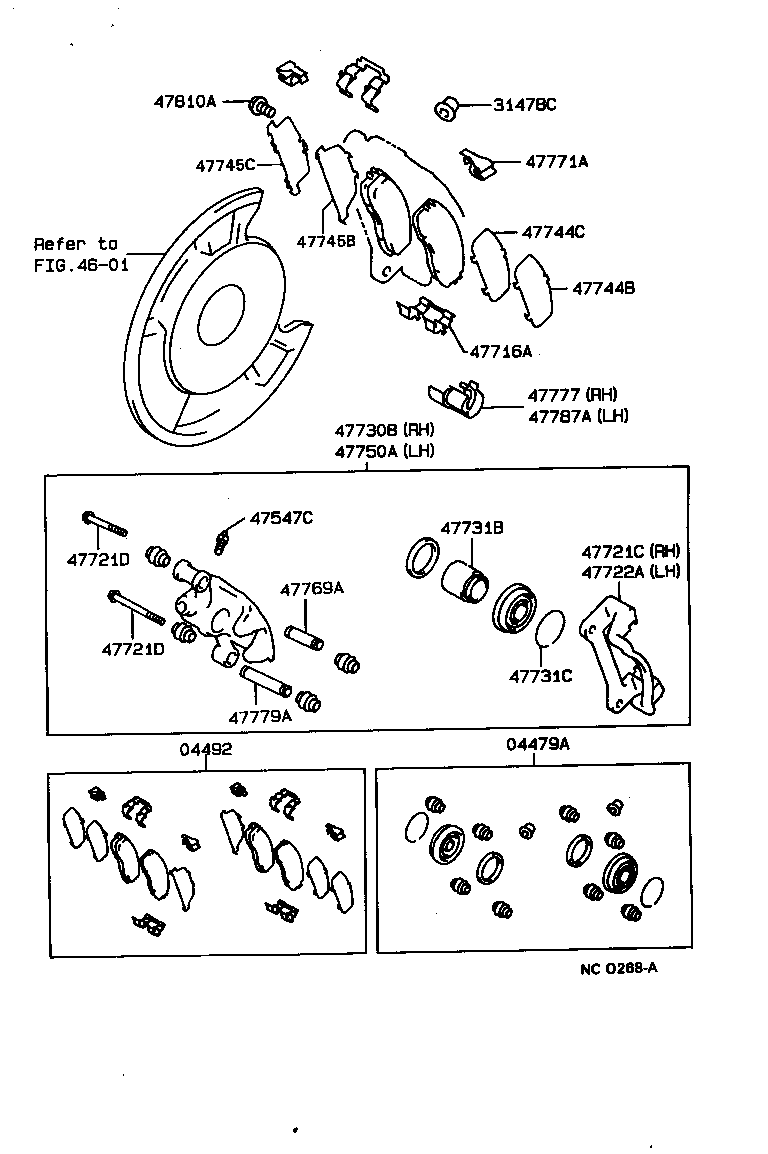

Toyota Crown GS131 REAR DISC BRAKE CALIPER & DUST COVER

Part #	Description	Period	Qty
04466 - PAD KIT, DISC BRAKE, REAR
04466-30010	GS131,MS135,137	09/1987 - 08/1989	1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-22030	GS131,MS135,137	09/1987 - 08/1989	1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-30030	GS131,MS135,137	09/1987 - 08/1989	1

Part #	Description	Period	Qty
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-30110	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	1
04492 - PAD KIT, DISC BRAKE, REAR
04492-30120	GS131,MS135,137	09/1987 - 08/1989	1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010	GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-27040	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-30050	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-30070	GS131,MS135,137	09/1987 - 08/1989	1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09014	GS131,JZS131,LS131,MS135,137,UZS131 *9−1.25PX87.4−25	09/1987 - 10/1991	2
90119-09013	GS131,JZS131,LS131,MS135,137,UZS131 *9−1.25PX62.9−25	09/1987 - 10/1991	2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09014	GS131,JZS131,LS131,MS135,137,UZS131 *9−1.25PX87.4−25	09/1987 - 10/1991	2
90119-09013	GS131,JZS131,LS131,MS135,137,UZS131 *9−1.25PX62.9−25	09/1987 - 10/1991	2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-30070	GS131,MS135,137	09/1987 - 08/1989	1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-30170	GS131,MS135,137	09/1987 - 08/1989	1
47731B - PISTON, REAR DISC BRAKE
47731-30070	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-49001	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	2
47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47744-14110	GS131,MS135,137	09/1987 - 07/1988	2
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-14110	GS131,MS135,137	09/1987 - 07/1988	2
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-14040	GS131,MS135,137	09/1987 - 07/1988	2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-30170	GS131,MS135,137	09/1987 - 08/1989	1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-30030	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-22040	LS130..(HT,SED)..SALEX;GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)	09/1987 - 08/1989	4
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-20010	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10379	GS131,JZS131,LS131,MS135,137,UZS131	09/1987 - 10/1991	4
Linked diagrams
4601

GS131-ATPJE (1987)

ILLUST NO. 2 OF 2(8709- )

ILLUST NO. 1 OF 2(8709- )GS131,JZS131,LS131,MS135,137,UZS131

ILLUST NO. 1 OF 2(9110-9512)GS131,JZS131,133,135,LS131

ILLUST NO. 2 OF 2(9110-9512)GS131,JZS131,133,135,LS131
