GS131-ATPEK (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

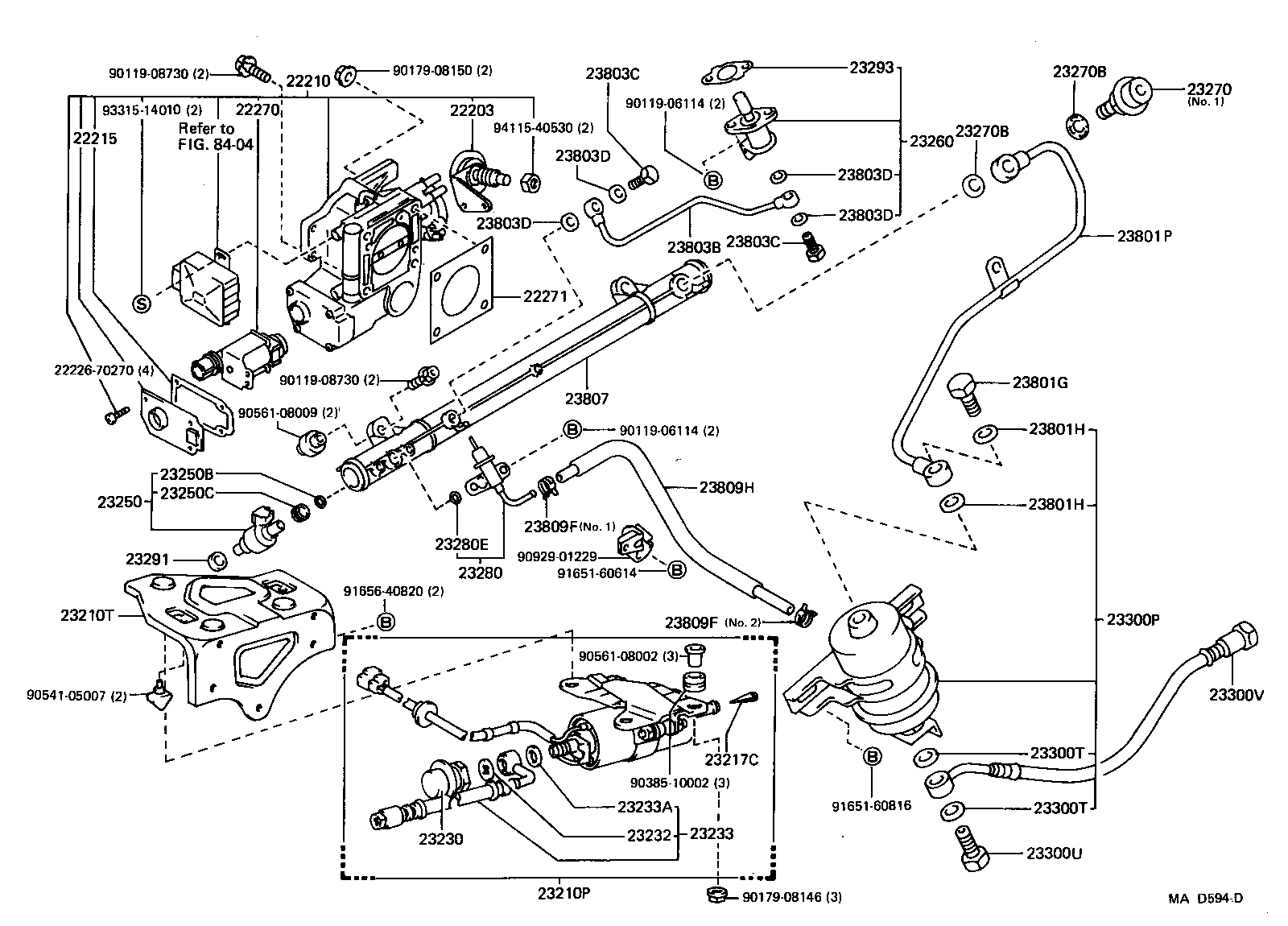

ILLUST NO. 1 OF 3(8908- )1GFE

Click highlighted areas on diagram

diagram 22203 22210 22215 2222670270 22270 22271 23210P 23210T 23217C 23230 23232 23233 23233A 23250 23250B 23250C 23260 23270 23270B 23270B 23280 23280E 23291 23293 23300P 23300T 23300T 23300U 23300V 23801G 23801H 23801H 23801P 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23809F 23809F 23809H 8404 9011906114 9011906114 9011908730 9011908730 9017908146 9017908150 9038510002 9054105007 9056108002 9056108009 9092901229 9165160614 9165160816 9165640820 9331514010 9411540530
Part # Description Qty Price
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS13#

 1
23233 - HOSE, FUEL PUMP
23239-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GFE,1GGZE,1GGE..GS13#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-79146

1GFE..GS13#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE,1GGZE..GS13#

DAMPER SIDE

 1
23232-28010

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
90430-12005

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE,1GGZE..GS13#

DAMPER SIDE

 1
23232-28010

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
90430-12005

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GE,1GFE..GS13#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23293 - GASKET, COLD START INJECTOR
23293-70020

1GE,1GFE..GS13#

 1
23293-70021

1GFE..GS13#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79015

1GE,1GFE..GS13#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GFE,1GGZE,1GGE..GS13#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01346

1GE,1GFE,1GGZE,1GGE..GS13#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

1GFE,1GG#..GS130,131

 1
90401-12097

1GFE,1GGZE,1GGE..GS13#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GFE,1GG#..GS130,131

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GFE,1GG#..GS130,131

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE,1GGZE,1GGE..GS13#

NO.2

 1
90467-13051

1GFE,1GGZE,1GGE..GS13#

NO.1

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE,1GGZE,1GGE..GS13#

NO.2

 1
90467-13051

1GFE,1GGZE,1GGE..GS13#

NO.1

 1
Common parts
22226-70270
90119-06114
90119-08730
90179-08146
90179-08150
90385-10002
90541-05007
90561-08002
90561-08009
90929-01229
91651-60614
91651-60816
91656-40820
93315-14010
94115-40530
