GS131-AESGK (1989)
Toyota Crown

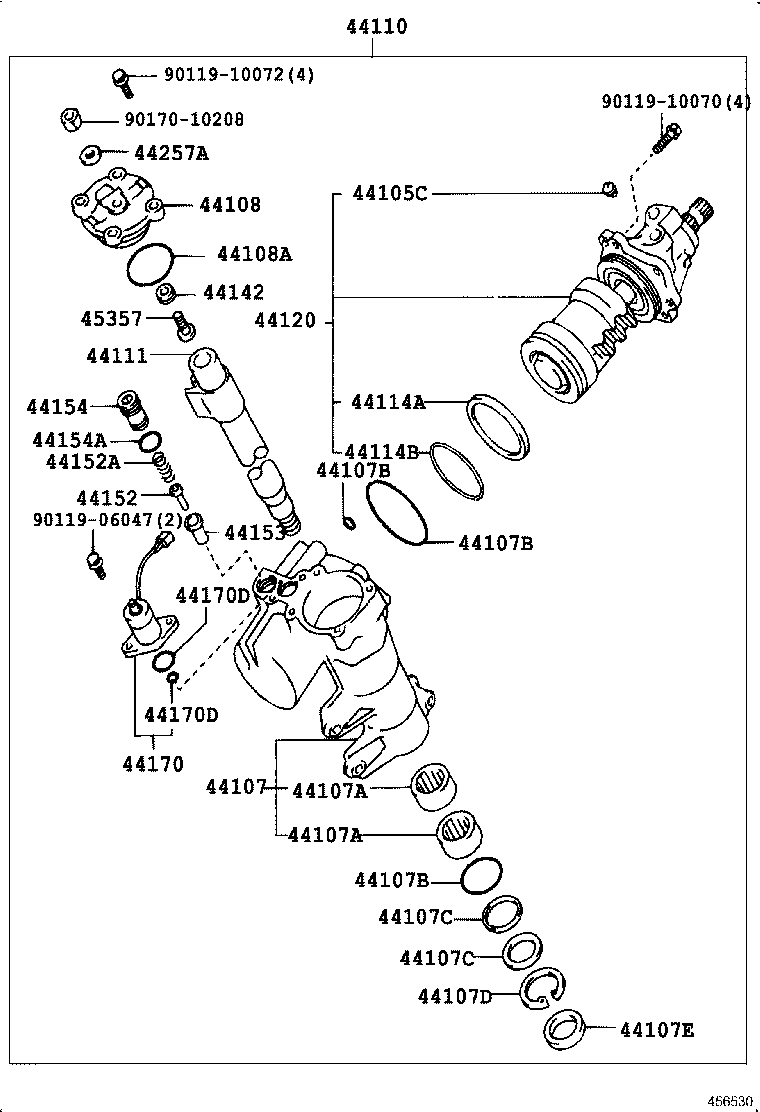

ILLUST NO. 3 OF 3(8908- )GS130,131,JZS13#,LS13#
ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30200 |
GS136,LS130,136,YS130;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE);GS130,MS13#,UZS131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TWC,TWLPG) |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30060 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108-30040 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30323 |
GS131..HT..TWC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44110-30333 |
YS130..4HC;GS136,LS130;YS130..4H..DLX;GS130..DLX,SALEX,SDX;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE) |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30070 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111-30071 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-71001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-68002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-30170 |
LS130..WG;YS130..4HC;YS130..4H..DLX;LS130..DLX,SDX,SPE,SSL,STD;GS131,136,LS136..DSL,EFI,HTWC,TWC;GS130,MS130..DLX,ROY,SAL,SALEX,SDX,SPE |
1 | ||
| 44120-30183 |
GS131..HT..TWC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44120-30173 |
YS130..4HC;GS136,LS130;YS130..4H..DLX;GS130..DLX,SALEX,SDX;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE) |
1 | ||
| 44120-30173 |
YS130..4HC;GS136,LS130;LS131,YS130..(4FC,4H,5F)..(DLX,SPE,SSL);GS130,131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22020 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-30020 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-60020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30060 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-60030 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
ILLUST NO. 3 OF 3(8908- )
ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30200 |
GS136,LS130,136,YS130;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE);GS130,MS13#,UZS131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TWC,TWLPG) |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30060 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108-30040 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30070 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111-30071 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-71001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-68002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-30170 |
LS130..WG;YS130..4HC;YS130..4H..DLX;LS130..DLX,SDX,SPE,SSL,STD;GS131,136,LS136..DSL,EFI,HTWC,TWC;GS130,MS130..DLX,ROY,SAL,SALEX,SDX,SPE |
1 | ||
| 44120-30183 |
GS131..HT..TWC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44120-30173 |
YS130..4HC;GS136,LS130;YS130..4H..DLX;GS130..DLX,SALEX,SDX;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE) |
1 | ||
| 44120-30173 |
YS130..4HC;GS136,LS130;LS131,YS130..(4FC,4H,5F)..(DLX,SPE,SSL);GS130,131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22020 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-30020 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-60020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30060 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-60030 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
