GS131-AEPQR (1987)
Toyota Crown

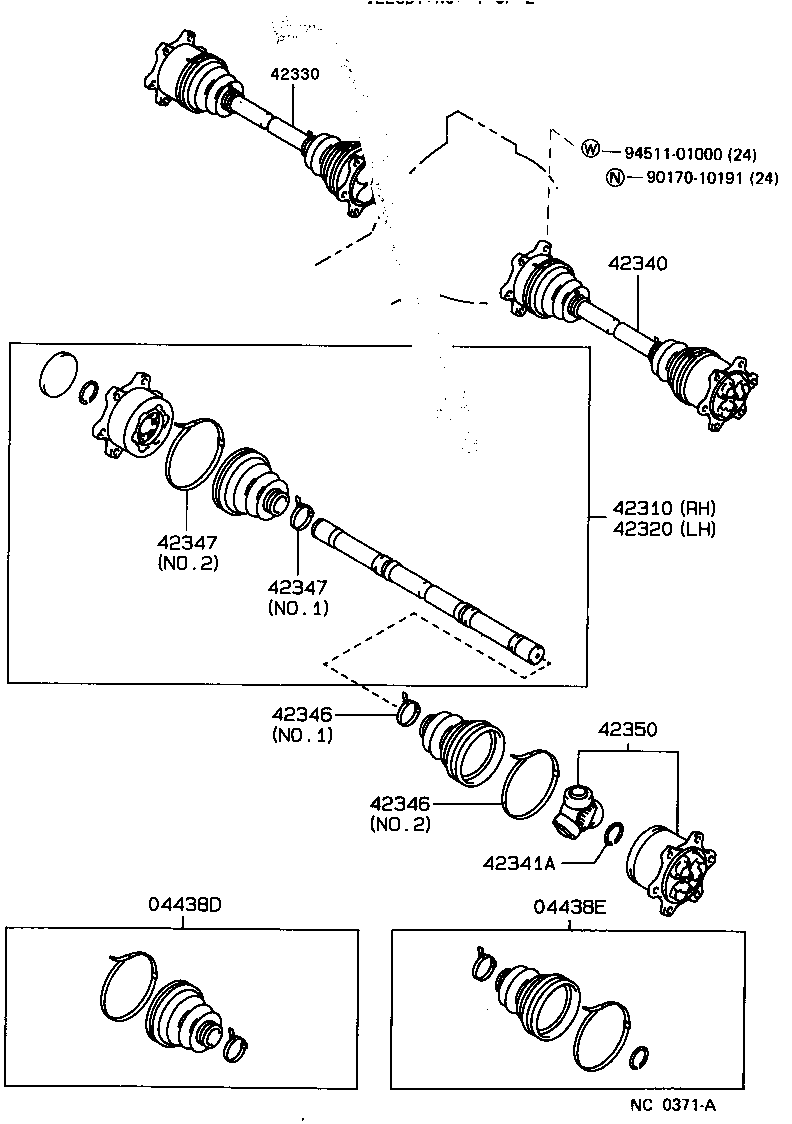

ILLUST NO. 1 OF 2(8709- )GS131..SPC ; (8709- )JZS131,MS135,137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-30030 |
GS131..SPC;JZS131,MS135,137,UZS131 |
2 | ||
| 04438E - BOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT | ||||
| 04437-14030 |
GS131..SPC;JZS131,MS135,137,UZS131 |
2 | ||
| 42310 - SHAFT ASSY, REAR DRIVE INBOARD JOINT, RH | ||||
| 42310-30010 |
GS131..SPC;JZS131,MS135,137,UZS131 |
1 | ||
| 42320 - SHAFT ASSY, REAR DRIVE INBOARD JOINT, LH | ||||
| 42320-30010 |
GS131..SPC;JZS131,MS135,137,UZS131 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-30020 |
GS131..SPC;JZS131,MS135,137,UZS131 |
1 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-30020 |
GS131..SPC;JZS131,MS135,137,UZS131 |
1 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-29028 |
GS131..SPC;JZS131,MS135,137,UZS131 |
2 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01221 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.1 |
2 | ||
| 90949-01222 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.2 |
2 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01221 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.1 |
2 | ||
| 90949-01222 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.2 |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 90949-01290 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.2 |
2 | ||
| 90949-01221 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.1 |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 90949-01290 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.2 |
2 | ||
| 90949-01221 |
GS131..SPC;JZS131,MS135,137,UZS131 NO.1 |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-30020 |
GS131..SPC;JZS131,MS135,137,UZS131 |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-30100 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-30100 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-43003 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-43003 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-30120 |
GS131,JZS131,LS131,MS13#,UZS131..NOB |
2 | ||
| 42431-30120 |
GS131,MS135,137 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
10 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
10 | ||
| Common parts | ||||
| 90205-10005 | ||||

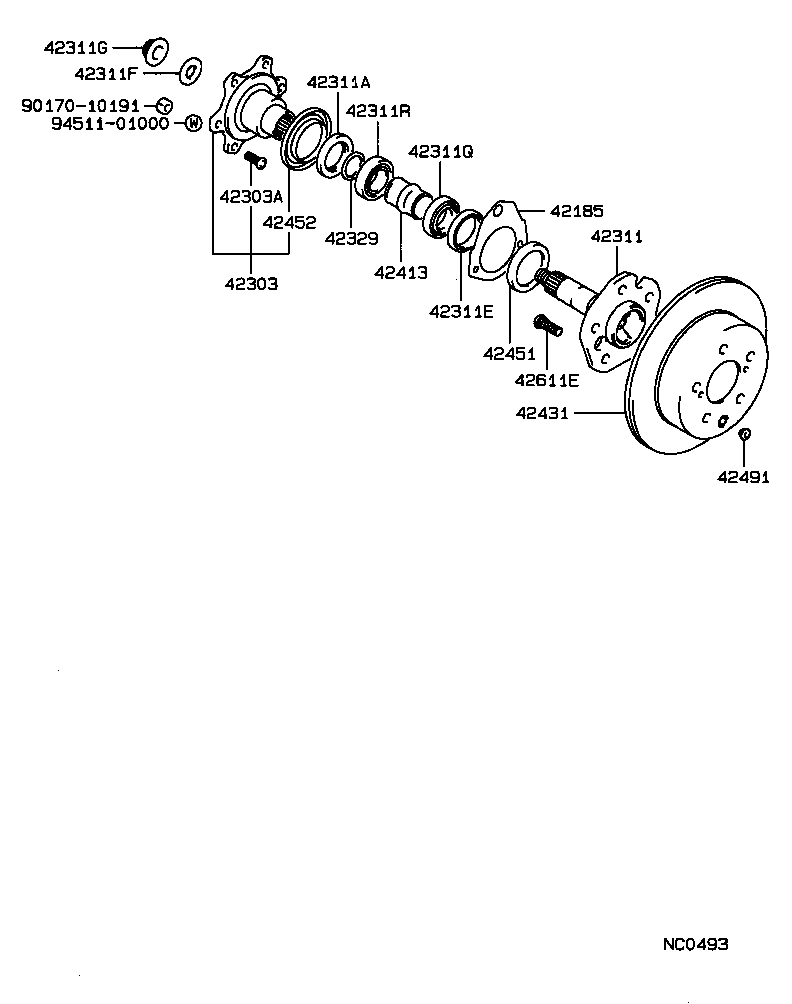

ILLUST NO. 2 OF 2(8709- )GS131,JZS131,LS131,MS135,137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42303 - FLANGE SUB-ASSY, REAR AXLE | ||||
| 42303-30030 |
GS131..SPC;JZS131,MS135,137,UZS131 |
2 | ||
| 42303A - BOLT, SERRATION (FOR REAR AXLE FLANGE) | ||||
| 90114-10028 |
GS131..SPC;JZS131,MS135,137,UZS131 |
12 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-30100 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-43003 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-48001 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90201-20017 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20015 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311Q - BEARING (FOR REAR AXLE SHAFT OUTER) | ||||
| 90368-34083 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42311R - BEARING (FOR REAR AXLE SHAFT INNER) | ||||
| 90366-34001 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42329 - SPACER, REAR AXLE SHAFT | ||||
| 42329-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42413 - SPACER, REAR WHEEL BEARING | ||||
| 42413-30011 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-30120 |
GS131,JZS131,LS131,MS13#,UZS131..NOB |
2 | ||
| 42431-30120 |
GS131,MS135,137 |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-22010 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 | ||||
| 42452-30020 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
10 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
