GS131-AEPQF (1987)
Toyota Crown

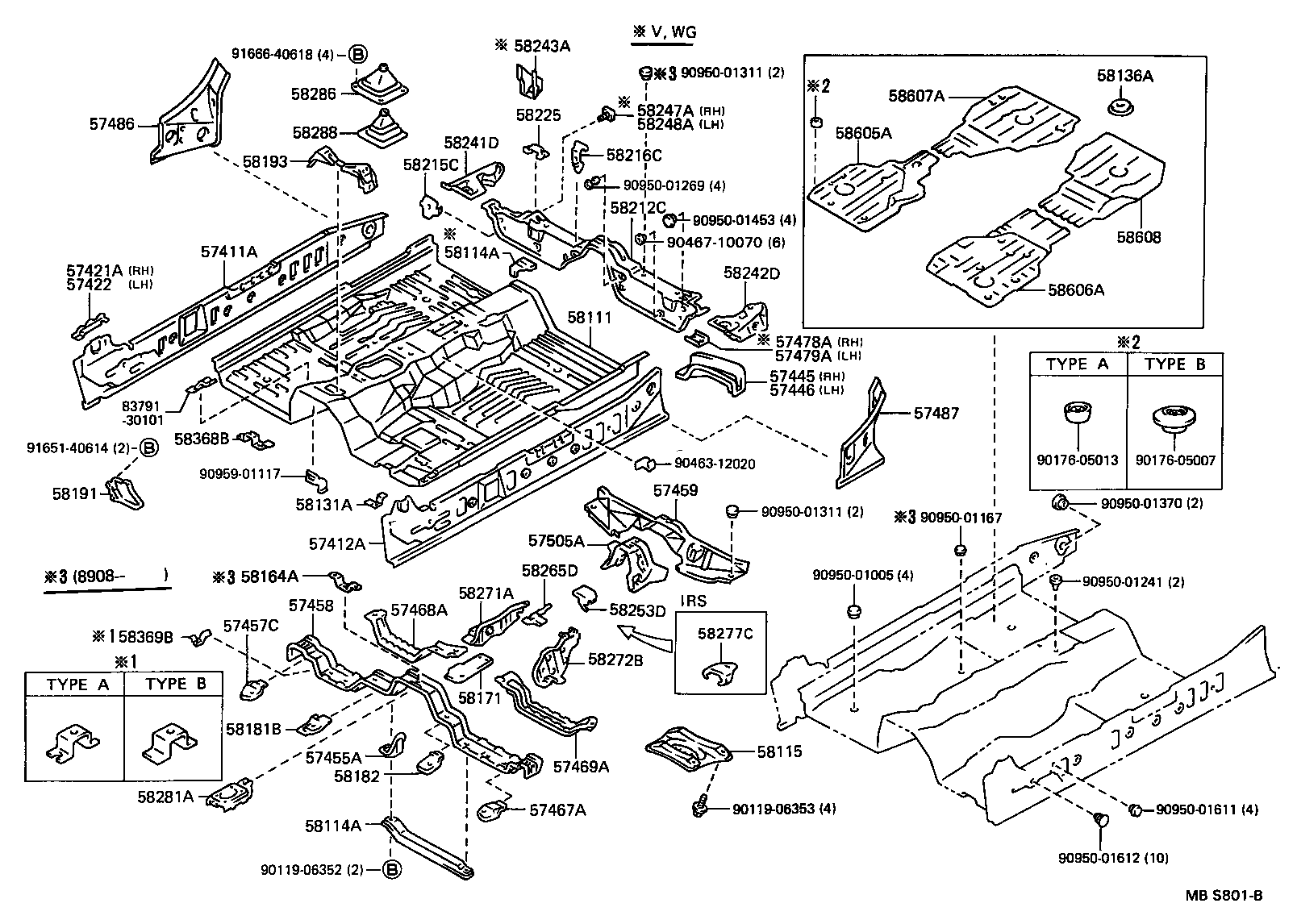

ILLUST NO. 1 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57422 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57445 - REINFORCEMENT, NO.5 BODY MOUNTING, RH | ||||
| 57445-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57446 - REINFORCEMENT, NO.5 BODY MOUNTING, LH | ||||
| 57446-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57455A - BRACKET, FRONT FLOOR CROSSMEMBER | ||||
| 57455-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH | ||||
| 57457-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-30050 |
GS131,JZS131,LS131,MS135,137 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-30010 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 57486-30011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-30010 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 57487-30011 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 57487-30011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57505-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-30260 |
MS135..4FC..ROY;GS131..HT..(4FC,5F)..(ROY,SALEX,SSL)..NOB;GS131,136..(SED,V)..(4FC,5F)..(EFI,SPC,TWC);GS130,LS130,136,MS130,137,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC) |
1 | ||
| 58111-30261 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-30040 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-30040 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58131-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
5 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-30010 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-30050 |
GS131,LS131..ATM..(HTWC,TDE,TWC);GS131,JZS131,MS13#,UZS131..4HC..(ROY,ROYG);GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC) |
1 | ||
| 58107-30050 |
GS131,MS135,137..ATM |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-30040 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) |
1 | ||
| 58182 - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH | ||||
| 58182-30030 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-30020 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-30031 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58212-30030 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 58212-30030 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-30020 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 58215-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH | ||||
| 58216-30010 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 58216-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 58241D - GUSSET, WHEELHOUSE INNER, FRONT RH | ||||
| 58105-30011 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 58241-30030 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 58105-30010 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 58242D - GUSSET, WHEELHOUSE INNER, FRONT LH | ||||
| 58106-30020 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 58242-30040 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 58106-30021 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58272-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58277C - BRACKET, PARKING BRAKE CABLE GUIDE, NO.4 | ||||
| 58277-30020 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58281A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
GS130,131,LS130,MS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS131,MS135,137 ﾀｲﾌﾟ B |
4 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS131..HT..ROY;JZS131,MS135..ROY;GS131,LS131..SED..(ROY,SALEX) ﾀｲﾌﾟ B |
4 | ||
| 58369-32010 |
GS131,JZS131,LS131,MS135..NOB;JZS131,MS13#,UZS131..ROYG,SALEX,SSL ﾀｲﾌﾟ B |
6 | ||
| 58605A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH | ||||
| 58605-30021 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 58606A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH | ||||
| 58606-30020 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 58607A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH | ||||
| 58607-30020 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 58608 - PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH | ||||
| 58608-30030 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 83791-30101 | ||||
| 90119-06352 | ||||
| 90119-06353 | ||||
| 90176-05007 | ||||
| 90176-05013 | ||||
| 90463-12020 | ||||
| 90467-10070 | ||||
| 90950-01005 | ||||
| 90950-01167 | ||||
| 90950-01241 | ||||
| 90950-01269 | ||||
| 90950-01311 | ||||
| 90950-01370 | ||||
| 90950-01453 | ||||
| 90950-01611 | ||||
| 90950-01612 | ||||
| 90959-01117 | ||||
| 91651-40614 | ||||
| 91666-40618 | ||||

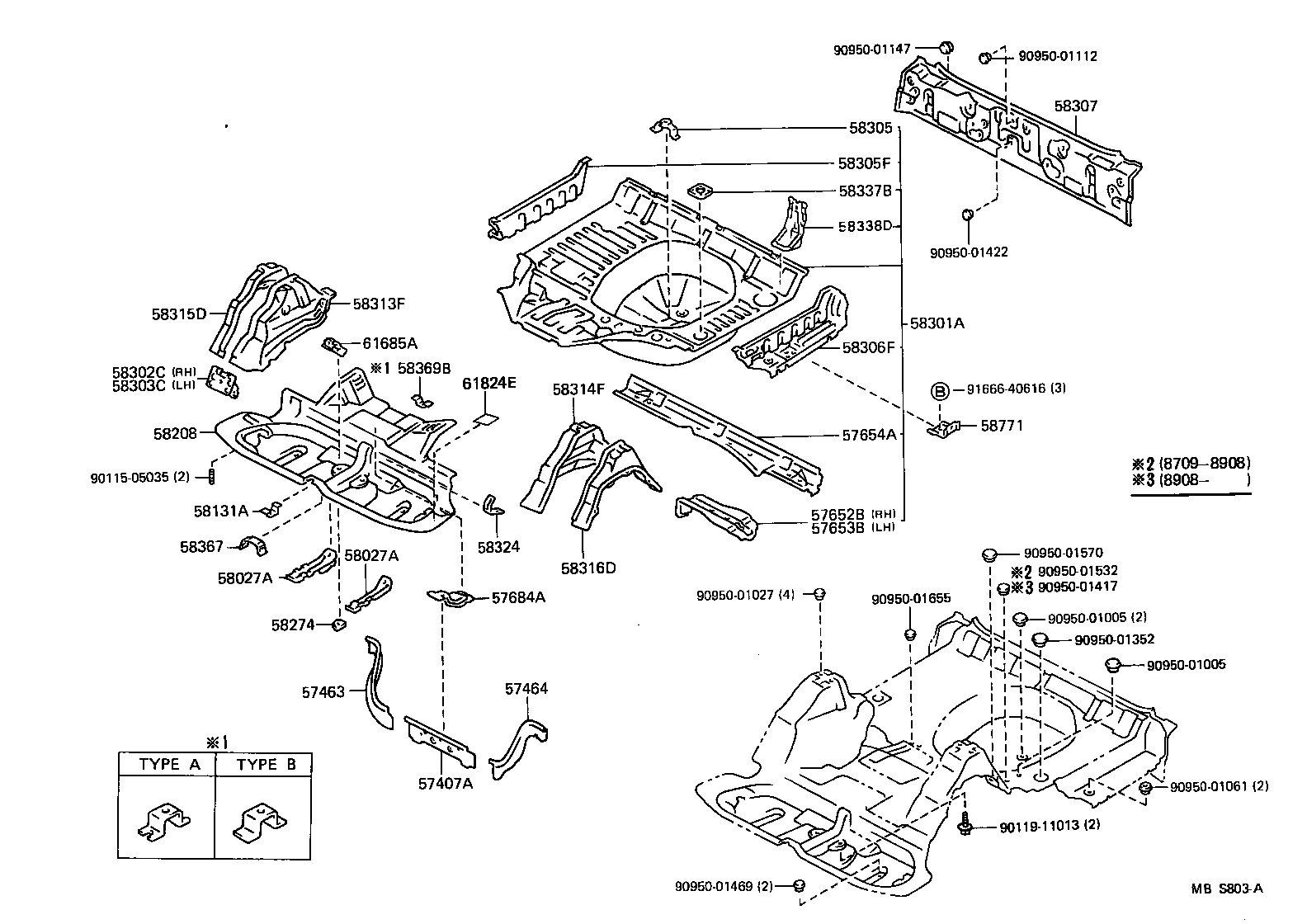

ILLUST NO. 2 OF 2(8709- )GS131,JZS131,LS131,MS135,137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57461-30050 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 57463 - MEMBER, CENTER FLOOR CROSS, NO.3 | ||||
| 57463-30030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 57464 - STRENGTH, CENTER FLOOR CROSSMEMBER | ||||
| 57464-30030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 57652B - MEMBER, REAR FLOOR CROSS, FRONT RH | ||||
| 57652-30041 |
GS131,JZS131,LS131,MS13#,UZS131 |
1 | ||
| 57652-30040 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 57653B - MEMBER, REAR FLOOR CROSS, FRONT LH | ||||
| 57653-30060 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 57684A - BRACKET, FUEL TANK MOUNTING, NO.2 | ||||
| 57684-30040 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 右側 |
1 | ||
| 58028-30080 |
GS131,JZS131,LS131,MS135,137,UZS131 左側 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 右側 |
1 | ||
| 58028-30080 |
GS131,JZS131,LS131,MS135,137,UZS131 左側 |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58131-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
5 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30230 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58274 - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1 | ||||
| 58274-30020 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 58274-30020 |
GS131,JZS131,LS131,MS13#,UZS131 |
2 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-30451 |
GS131,JZS131,LS131,MS13#,UZS131 |
1 | ||
| 58301-30450 |
GS131,MS135,137 |
1 | ||
| 58302C - BRACKET SUB-ASSY, REAR ABSORBER, RH | ||||
| 58302-30030 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58303C - BRACKET SUB-ASSY, REAR ABSORBER, LH | ||||
| 58303-30060 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30480 |
GS130..DLX..TWLPG;GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC) |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-30090 |
GS131,LS131,MS135,137,UZS131 |
1 | ||
| 58313-30090 |
GS131,LS131;JZS131,MS135..ROY,SSL |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-30080 |
GS131,LS131;JZS131,MS135..ROY,SSL |
1 | ||
| 58314-30080 |
GS131,LS131,MS135,137,UZS131 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-30010 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-30020 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 47351-30220 |
GS131,JZS131,LS131,MS135,137,UZS131 |
2 | ||
| 58337B - REINFORCEMENT, NO.7 BODY MOUNTING | ||||
| 58337-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
2 | ||
| 58338D - REINFORCEMENT, TAIL END BODY MOUNTING | ||||
| 58338-30040 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
2 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58367-30090 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
GS130,131,LS130,MS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS131,MS135,137 ﾀｲﾌﾟ B |
4 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS131..HT..ROY;JZS131,MS135..ROY;GS131,LS131..SED..(ROY,SALEX) ﾀｲﾌﾟ B |
4 | ||
| 58369-32010 |
GS131,JZS131,LS131,MS135..NOB;JZS131,MS13#,UZS131..ROYG,SALEX,SSL ﾀｲﾌﾟ B |
6 | ||
| 58771 - CLAMP, JACK, NO.1 | ||||
| 58795-30010 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 61824E - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 90115-05035 | ||||
| 90119-11013 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01061 | ||||
| 90950-01112 | ||||
| 90950-01147 | ||||
| 90950-01352 | ||||
| 90950-01417 | ||||
| 90950-01422 | ||||
| 90950-01469 | ||||
| 90950-01532 | ||||
| 90950-01570 | ||||
| 90950-01655 | ||||
| 91666-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
