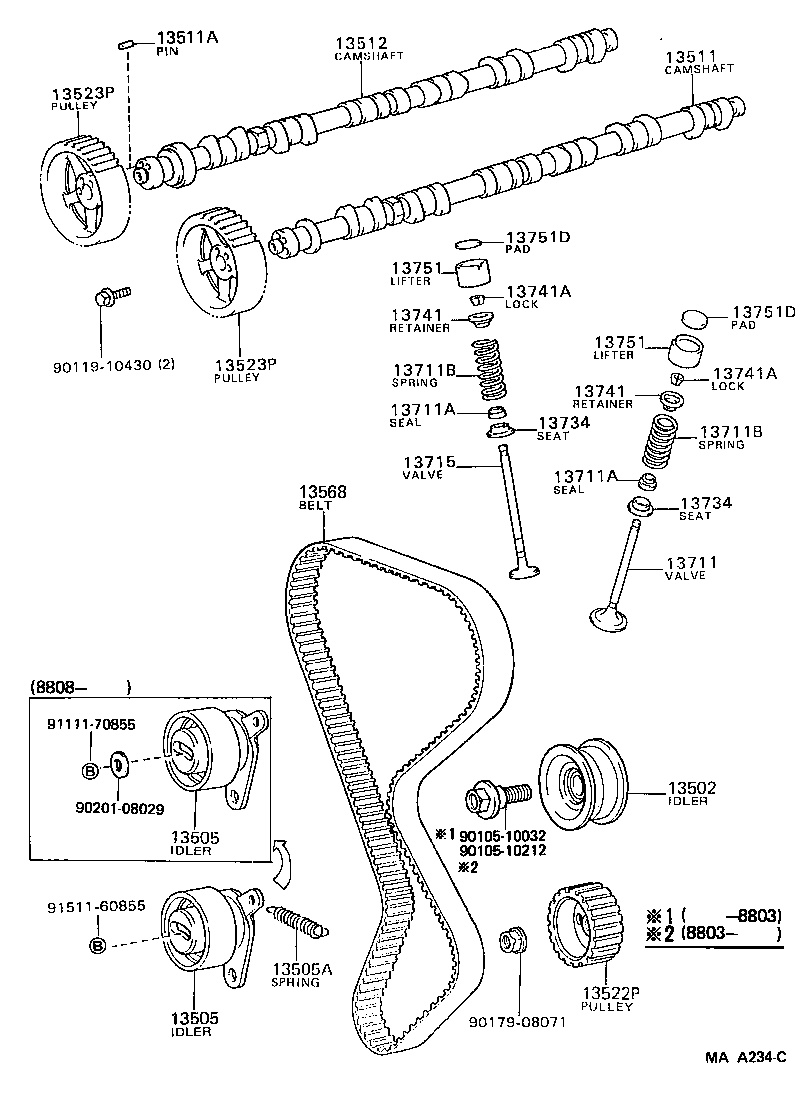

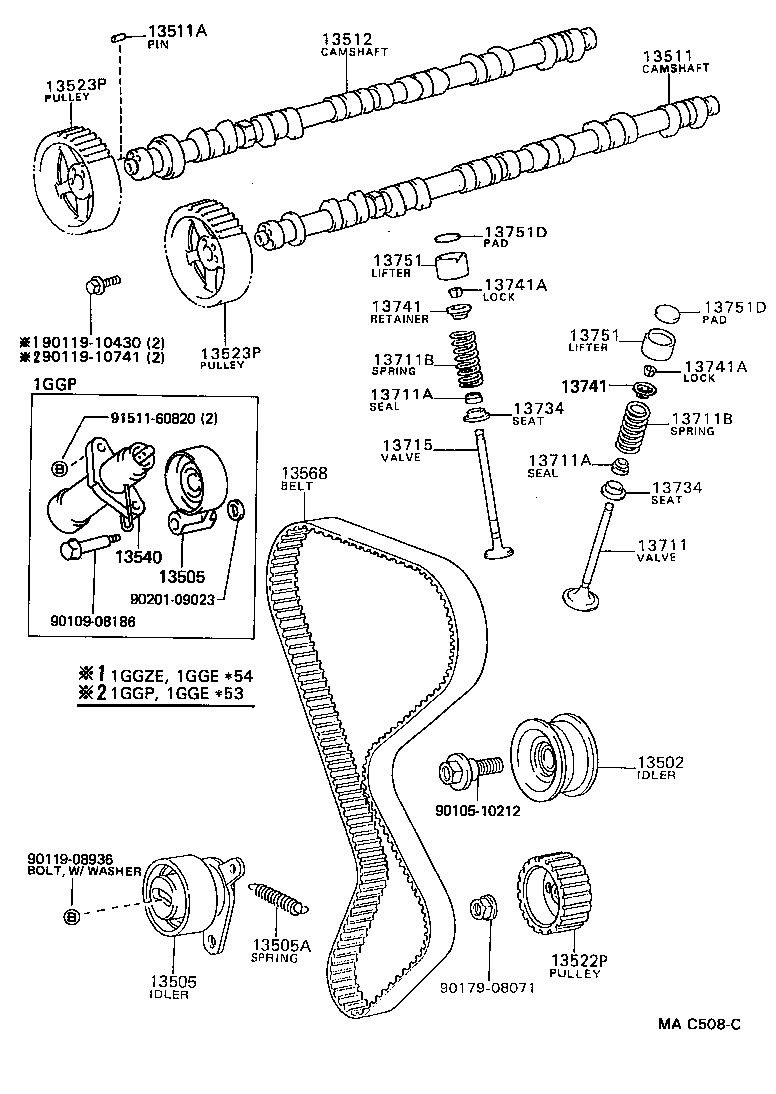

GS131-AEPQF (1987)
Toyota Crown
(8709-8908)1GG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-88301 |
1GGE..GS131 |
1 | ||
| 13503-88301 |
1GG#..GS130,131 |
1 | ||
| 13503-88300 |
1GG#..GS130,131 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-88301 |
1GGE..GS131 |
1 | ||
| 13505-70012 |
1GE,1GG#..GS13# |
1 | ||
| 13505-70012 |
1GE,1GGZE,1GGE..GS13# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-88301 |
1GGE..GS131 |
1 | ||
| 13505-70012 |
1GE,1GG#..GS13# |
1 | ||
| 13505-70012 |
1GE,1GGZE,1GGE..GS13# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-16054 |
1GGE..GS131 |
1 | ||
| 90506-13002 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-88303 |
1GGE..GS131 |
1 | ||
| 13501-88305 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
1GG#..GS130,131 長さ=13.8,外径=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-88301 |
1GGE..GS131 |
1 | ||
| 13502-88303 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-88301 |
1GG#..GS130,131 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88301 |
1GG#..GS130,131 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88301 |
1GG#..GS130,131 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-88300 |
1GG#..GS130,131 ｴﾝｼﾞﾝNO=1GGZ-1873672ﾏﾃﾞ |
1 | ||
| 13568-88301 |
1GG#..GS130,131 |
1 | ||
| 13568-88300 |
1GGE..GS131 |
1 | ||
| 13568-88340 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-88340 |
1GG#..GS130,131 |
12 | ||
| 13711-70031 |
1GG#..GS130,131 |
12 | ||
| 13711-88341 |
1GGE..GS131 |
12 | ||
| 13711-88341 |
1GG#..GS130,131 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
1GGE..GS131 INTAKE SIDE |
12 | ||
| 90913-02066 |
1GGE..GS131 EXHAUST SIDE |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
1GGE..GS131 INTAKE SIDE |
12 | ||
| 90913-02066 |
1GGE..GS131 EXHAUST SIDE |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GGZE,1GGE..GS130,131 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GGZE,1GGE..GS130,131 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-88301 |
1GGZE,1GGE..GS130,131 |
12 | ||
| 13715-88301 |
1GG#..GS130,131 |
12 | ||
| 13715-88300 |
1GG#..GS130,131 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
1GG#..GS130,131 |
24 | ||
| 13734-88300 |
1GGE..GS131 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
1GG#..GS130,131 |
24 | ||
| 13734-88300 |
1GGE..GS131 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
1GG#..GS130,131 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
1GG#..GS130,131 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1GFE,1GG#..GS13# |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1GFE,1GG#..GS13# |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
1GFE,1GGZE,1GGE..GS13# |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
1GFE,1GGZE,1GGE..GS13# |
24 | ||
| 13751D - PAD, VALVE ADJUSTING | ||||
| 90072-72764 |
1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 90072-72760 |
1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 90072-72762 |
1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 90072-72768 |
1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 90072-72766 |
1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 90072-72770 |
1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 90072-72778 |
1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 90072-72784 |
1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 90072-72801 |
1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 90072-72772 |
1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 90072-72774 |
1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 90072-72782 |
1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 90072-72792 |
1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 90072-72788 |
1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 90072-72796 |
1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 90072-72776 |
1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 90072-72809 |
1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72790 |
1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 90072-72811 |
1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 90072-72803 |
1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 90072-72780 |
1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72813 |
1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 90072-72807 |
1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 90072-72805 |
1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 90072-72798 |
1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72794 |
1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72786 |
1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS13# 厚さ=2.50 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS13# 厚さ=2.65 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS13# 厚さ=2.80 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS13# 厚さ=2.70 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS13# 厚さ=2.60 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS13# 厚さ=2.90 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS13# 厚さ=3.05 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS13# 厚さ=2.95 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS13# 厚さ=2.10 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS13# 厚さ=3.30 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS13# 厚さ=2.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS13# 厚さ=3.20 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS13# 厚さ=2.75 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS13# 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS13# 厚さ=2.20 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS13# 厚さ=3.10 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS13# 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS13# 厚さ=3.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS13# 厚さ=2.85 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS13# 厚さ=2.25 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS13# 厚さ=2.05 |
1 | ||
| 13753-16140 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.80 |
1 | ||
| 13753-16020 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.50 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS13# 厚さ=2.15 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS13# 厚さ=2.35 |
1 | ||
| 13753-16040 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS13# 厚さ=2.45 |
1 | ||
| 13753-16080 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.65 |
1 | ||
| 13753-16220 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.00 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS13# 厚さ=2.30 |
1 | ||
| 13753-16120 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.75 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS13# 厚さ=2.40 |
1 | ||
| 13753-16060 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.60 |
1 | ||
| 13753-16180 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.90 |
1 | ||
| 13753-16200 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.95 |
1 | ||
| 13753-16340 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.30 |
1 | ||
| 13753-16280 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.15 |
1 | ||
| 13753-16320 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.25 |
1 | ||
| 13753-16160 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.85 |
1 | ||
| 13753-16300 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.20 |
1 | ||
| 13753-16700 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.20 |
1 | ||
| 13753-16730 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.35 |
1 | ||
| 13753-16720 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.30 |
1 | ||
| 13753-16100 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.70 |
1 | ||
| 13753-16710 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.05 |
1 | ||
| 13753-16690 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.15 |
1 | ||
| 13753-16750 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.45 |
1 | ||
| 13753-16260 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.10 |
1 | ||
| 13753-16680 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.10 |
1 | ||
| 13753-16740 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.40 |
1 | ||
| 13753-16670 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.05 |
1 | ||
| 13753-16660 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.00 |
1 | ||
| 13751D - PAD, VALVE ADJUSTING | ||||
| 90072-72764 |
1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 90072-72760 |
1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 90072-72762 |
1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 90072-72768 |
1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 90072-72766 |
1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 90072-72770 |
1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 90072-72778 |
1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 90072-72784 |
1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 90072-72801 |
1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 90072-72772 |
1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 90072-72774 |
1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 90072-72782 |
1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 90072-72792 |
1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 90072-72788 |
1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 90072-72796 |
1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 90072-72776 |
1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 90072-72809 |
1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72790 |
1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 90072-72811 |
1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 90072-72803 |
1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 90072-72780 |
1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72813 |
1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 90072-72807 |
1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 90072-72805 |
1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 90072-72798 |
1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72794 |
1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72786 |
1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS13# 厚さ=2.50 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS13# 厚さ=2.65 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS13# 厚さ=2.80 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS13# 厚さ=2.70 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS13# 厚さ=2.60 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS13# 厚さ=2.90 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS13# 厚さ=3.05 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS13# 厚さ=2.95 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS13# 厚さ=2.10 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS13# 厚さ=3.30 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS13# 厚さ=2.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS13# 厚さ=3.20 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS13# 厚さ=2.75 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS13# 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS13# 厚さ=2.20 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS13# 厚さ=3.10 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS13# 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS13# 厚さ=3.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS13# 厚さ=2.85 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS13# 厚さ=2.25 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS13# 厚さ=2.05 |
1 | ||
| 13753-16140 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.80 |
1 | ||
| 13753-16020 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.50 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS13# 厚さ=2.15 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS13# 厚さ=2.35 |
1 | ||
| 13753-16040 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS13# 厚さ=2.45 |
1 | ||
| 13753-16080 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.65 |
1 | ||
| 13753-16220 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.00 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS13# 厚さ=2.30 |
1 | ||
| 13753-16120 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.75 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS13# 厚さ=2.40 |
1 | ||
| 13753-16060 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.60 |
1 | ||
| 13753-16180 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.90 |
1 | ||
| 13753-16200 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.95 |
1 | ||
| 13753-16340 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.30 |
1 | ||
| 13753-16280 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.15 |
1 | ||
| 13753-16320 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.25 |
1 | ||
| 13753-16160 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.85 |
1 | ||
| 13753-16300 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.20 |
1 | ||
| 13753-16700 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.20 |
1 | ||
| 13753-16730 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.35 |
1 | ||
| 13753-16720 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.30 |
1 | ||
| 13753-16100 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.70 |
1 | ||
| 13753-16710 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.05 |
1 | ||
| 13753-16690 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.15 |
1 | ||
| 13753-16750 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.45 |
1 | ||
| 13753-16260 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.10 |
1 | ||
| 13753-16680 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.10 |
1 | ||
| 13753-16740 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.40 |
1 | ||
| 13753-16670 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.05 |
1 | ||
| 13753-16660 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.00 |
1 | ||
| Common parts | ||||
| 90105-10032 | ||||
| 90105-10212 | ||||
| 90119-10430 | ||||
| 90179-08071 | ||||
| 90201-08029 | ||||
| 91111-70855 | ||||
| 91511-60855 | ||||
(8908- )1GG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-88301 |
1GGE..GS131 |
1 | ||
| 13503-88301 |
1GG#..GS130,131 |
1 | ||
| 13503-88300 |
1GG#..GS130,131 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-88301 |
1GGE..GS131 |
1 | ||
| 13505-70012 |
1GE,1GG#..GS13# |
1 | ||
| 13505-70012 |
1GE,1GGZE,1GGE..GS13# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-88301 |
1GGE..GS131 |
1 | ||
| 13505-70012 |
1GE,1GG#..GS13# |
1 | ||
| 13505-70012 |
1GE,1GGZE,1GGE..GS13# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-16054 |
1GGE..GS131 |
1 | ||
| 90506-13002 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-88303 |
1GGE..GS131 |
1 | ||
| 13501-88305 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
1GG#..GS130,131 長さ=13.8,外径=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-88301 |
1GGE..GS131 |
1 | ||
| 13502-88303 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-88301 |
1GG#..GS130,131 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88301 |
1GG#..GS130,131 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88301 |
1GG#..GS130,131 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-88300 |
1GG#..GS130,131 ｴﾝｼﾞﾝNO=1GGZ-1873672ﾏﾃﾞ |
1 | ||
| 13568-88301 |
1GG#..GS130,131 |
1 | ||
| 13568-88300 |
1GGE..GS131 |
1 | ||
| 13568-88340 |
1GGZE,1GGE..GS130,131 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-88340 |
1GG#..GS130,131 |
12 | ||
| 13711-70031 |
1GG#..GS130,131 |
12 | ||
| 13711-88341 |
1GGE..GS131 |
12 | ||
| 13711-88341 |
1GG#..GS130,131 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
1GGE..GS131 INTAKE SIDE |
12 | ||
| 90913-02066 |
1GGE..GS131 EXHAUST SIDE |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
1GGE..GS131 INTAKE SIDE |
12 | ||
| 90913-02066 |
1GGE..GS131 EXHAUST SIDE |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GGZE,1GGE..GS130,131 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GG#..GS130,131 |
24 | ||
| 90501-32022 |
1GGZE,1GGE..GS130,131 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-88301 |
1GGZE,1GGE..GS130,131 |
12 | ||
| 13715-88301 |
1GG#..GS130,131 |
12 | ||
| 13715-88300 |
1GG#..GS130,131 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
1GG#..GS130,131 |
24 | ||
| 13734-88300 |
1GGE..GS131 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
1GG#..GS130,131 |
24 | ||
| 13734-88300 |
1GGE..GS131 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
1GG#..GS130,131 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
1GG#..GS130,131 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1GFE,1GG#..GS13# |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1GFE,1GG#..GS13# |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
1GFE,1GGZE,1GGE..GS13# |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
1GFE,1GGZE,1GGE..GS13# |
24 | ||
| 13751D - PAD, VALVE ADJUSTING | ||||
| 90072-72764 |
1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 90072-72760 |
1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 90072-72762 |
1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 90072-72768 |
1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 90072-72766 |
1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 90072-72770 |
1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 90072-72778 |
1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 90072-72784 |
1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 90072-72801 |
1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 90072-72772 |
1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 90072-72774 |
1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 90072-72782 |
1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 90072-72792 |
1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 90072-72788 |
1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 90072-72796 |
1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 90072-72776 |
1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 90072-72809 |
1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72790 |
1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 90072-72811 |
1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 90072-72803 |
1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 90072-72780 |
1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72813 |
1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 90072-72807 |
1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 90072-72805 |
1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 90072-72798 |
1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72794 |
1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72786 |
1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS13# 厚さ=2.50 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS13# 厚さ=2.65 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS13# 厚さ=2.80 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS13# 厚さ=2.70 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS13# 厚さ=2.60 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS13# 厚さ=2.90 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS13# 厚さ=3.05 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS13# 厚さ=2.95 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS13# 厚さ=2.10 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS13# 厚さ=3.30 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS13# 厚さ=2.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS13# 厚さ=3.20 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS13# 厚さ=2.75 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS13# 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS13# 厚さ=2.20 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS13# 厚さ=3.10 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS13# 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS13# 厚さ=3.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS13# 厚さ=2.85 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS13# 厚さ=2.25 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS13# 厚さ=2.05 |
1 | ||
| 13753-16140 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.80 |
1 | ||
| 13753-16020 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.50 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS13# 厚さ=2.15 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS13# 厚さ=2.35 |
1 | ||
| 13753-16040 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS13# 厚さ=2.45 |
1 | ||
| 13753-16080 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.65 |
1 | ||
| 13753-16220 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.00 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS13# 厚さ=2.30 |
1 | ||
| 13753-16120 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.75 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS13# 厚さ=2.40 |
1 | ||
| 13753-16060 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.60 |
1 | ||
| 13753-16180 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.90 |
1 | ||
| 13753-16200 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.95 |
1 | ||
| 13753-16340 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.30 |
1 | ||
| 13753-16280 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.15 |
1 | ||
| 13753-16320 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.25 |
1 | ||
| 13753-16160 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.85 |
1 | ||
| 13753-16300 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.20 |
1 | ||
| 13753-16700 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.20 |
1 | ||
| 13753-16730 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.35 |
1 | ||
| 13753-16720 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.30 |
1 | ||
| 13753-16100 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.70 |
1 | ||
| 13753-16710 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.05 |
1 | ||
| 13753-16690 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.15 |
1 | ||
| 13753-16750 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.45 |
1 | ||
| 13753-16260 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.10 |
1 | ||
| 13753-16680 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.10 |
1 | ||
| 13753-16740 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.40 |
1 | ||
| 13753-16670 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.05 |
1 | ||
| 13753-16660 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.00 |
1 | ||
| 13751D - PAD, VALVE ADJUSTING | ||||
| 90072-72764 |
1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 90072-72760 |
1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 90072-72762 |
1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 90072-72768 |
1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 90072-72766 |
1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 90072-72770 |
1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 90072-72778 |
1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 90072-72784 |
1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 90072-72801 |
1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 90072-72772 |
1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 90072-72774 |
1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 90072-72782 |
1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 90072-72792 |
1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 90072-72788 |
1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 90072-72796 |
1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 90072-72776 |
1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 90072-72809 |
1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72790 |
1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 90072-72811 |
1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 90072-72803 |
1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 90072-72780 |
1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72813 |
1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 90072-72807 |
1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 90072-72805 |
1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 90072-72798 |
1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS130,131 厚さ=2.50 |
1 | ||
| 90072-72794 |
1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS130,131 厚さ=2.55 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS130,131 厚さ=2.75 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS130,131 厚さ=2.70 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS130,131 厚さ=2.80 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS130,131 厚さ=3.10 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS130,131 厚さ=2.60 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS130,131 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS130,131 厚さ=3.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS130,131 厚さ=3.20 |
1 | ||
| 90072-72786 |
1GG#..GS130,131 厚さ=2.65 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS130,131 厚さ=3.30 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS130,131 厚さ=2.90 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS130,131 厚さ=3.05 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS130,131 厚さ=2.05 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS130,131 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS130,131 厚さ=2.20 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS130,131 厚さ=2.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS130,131 厚さ=2.85 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS130,131 厚さ=2.15 |
1 | ||
| 13753-16040 |
1GFE,1GG#..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS130,131 厚さ=2.45 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS130,131 厚さ=2.30 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS130,131 厚さ=2.10 |
1 | ||
| 13753-16020 |
1GFE,1GG#..GS13# 厚さ=2.50 |
1 | ||
| 13753-16080 |
1GFE,1GG#..GS13# 厚さ=2.65 |
1 | ||
| 13753-16140 |
1GFE,1GG#..GS13# 厚さ=2.80 |
1 | ||
| 13753-16100 |
1GFE,1GG#..GS13# 厚さ=2.70 |
1 | ||
| 13753-16060 |
1GFE,1GG#..GS13# 厚さ=2.60 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS130,131 厚さ=2.35 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS130,131 厚さ=2.40 |
1 | ||
| 13753-16180 |
1GFE,1GG#..GS13# 厚さ=2.90 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS130,131 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GG#..GS13# 厚さ=3.05 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS130,131 厚さ=2.95 |
1 | ||
| 13753-16200 |
1GFE,1GG#..GS13# 厚さ=2.95 |
1 | ||
| 13753-16680 |
1GFE,1GG#..GS13# 厚さ=2.10 |
1 | ||
| 13753-16340 |
1GFE,1GG#..GS13# 厚さ=3.30 |
1 | ||
| 13753-16660 |
1GFE,1GG#..GS13# 厚さ=2.00 |
1 | ||
| 13753-16300 |
1GFE,1GG#..GS13# 厚さ=3.20 |
1 | ||
| 13753-16120 |
1GFE,1GG#..GS13# 厚さ=2.75 |
1 | ||
| 13753-16280 |
1GFE,1GG#..GS13# 厚さ=3.15 |
1 | ||
| 13753-16700 |
1GFE,1GG#..GS13# 厚さ=2.20 |
1 | ||
| 13753-16260 |
1GFE,1GG#..GS13# 厚さ=3.10 |
1 | ||
| 13753-16320 |
1GFE,1GG#..GS13# 厚さ=3.25 |
1 | ||
| 13753-16220 |
1GFE,1GG#..GS13# 厚さ=3.00 |
1 | ||
| 13753-16160 |
1GFE,1GG#..GS13# 厚さ=2.85 |
1 | ||
| 13753-16710 |
1GFE,1GG#..GS13# 厚さ=2.25 |
1 | ||
| 13753-16670 |
1GFE,1GG#..GS13# 厚さ=2.05 |
1 | ||
| 13753-16140 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.80 |
1 | ||
| 13753-16020 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.50 |
1 | ||
| 13753-16690 |
1GFE,1GG#..GS13# 厚さ=2.15 |
1 | ||
| 13753-16730 |
1GFE,1GG#..GS13# 厚さ=2.35 |
1 | ||
| 13753-16040 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.55 |
1 | ||
| 13753-16750 |
1GFE,1GG#..GS13# 厚さ=2.45 |
1 | ||
| 13753-16080 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.65 |
1 | ||
| 13753-16220 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.00 |
1 | ||
| 13753-16720 |
1GFE,1GG#..GS13# 厚さ=2.30 |
1 | ||
| 13753-16120 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.75 |
1 | ||
| 13753-16740 |
1GFE,1GG#..GS13# 厚さ=2.40 |
1 | ||
| 13753-16060 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.60 |
1 | ||
| 13753-16180 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.90 |
1 | ||
| 13753-16200 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.95 |
1 | ||
| 13753-16340 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.30 |
1 | ||
| 13753-16280 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.15 |
1 | ||
| 13753-16320 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.25 |
1 | ||
| 13753-16160 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.85 |
1 | ||
| 13753-16300 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.20 |
1 | ||
| 13753-16700 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.20 |
1 | ||
| 13753-16730 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.35 |
1 | ||
| 13753-16720 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.30 |
1 | ||
| 13753-16100 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.70 |
1 | ||
| 13753-16710 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.25 |
1 | ||
| 13753-16240 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.05 |
1 | ||
| 13753-16690 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.15 |
1 | ||
| 13753-16750 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.45 |
1 | ||
| 13753-16260 |
1GFE,1GGZE,1GGE..GS13# 厚さ=3.10 |
1 | ||
| 13753-16680 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.10 |
1 | ||
| 13753-16740 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.40 |
1 | ||
| 13753-16670 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.05 |
1 | ||
| 13753-16660 |
1GFE,1GGZE,1GGE..GS13# 厚さ=2.00 |
1 | ||
| Common parts | ||||
| 90105-10212 | ||||
| 90109-08186 | ||||
| 90119-08936 | ||||
| 90119-10430 | ||||
| 90119-10741 | ||||
| 90179-08071 | ||||
| 90201-09023 | ||||
| 91511-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
