GS130H-AEPQD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9112-9512)1GGP

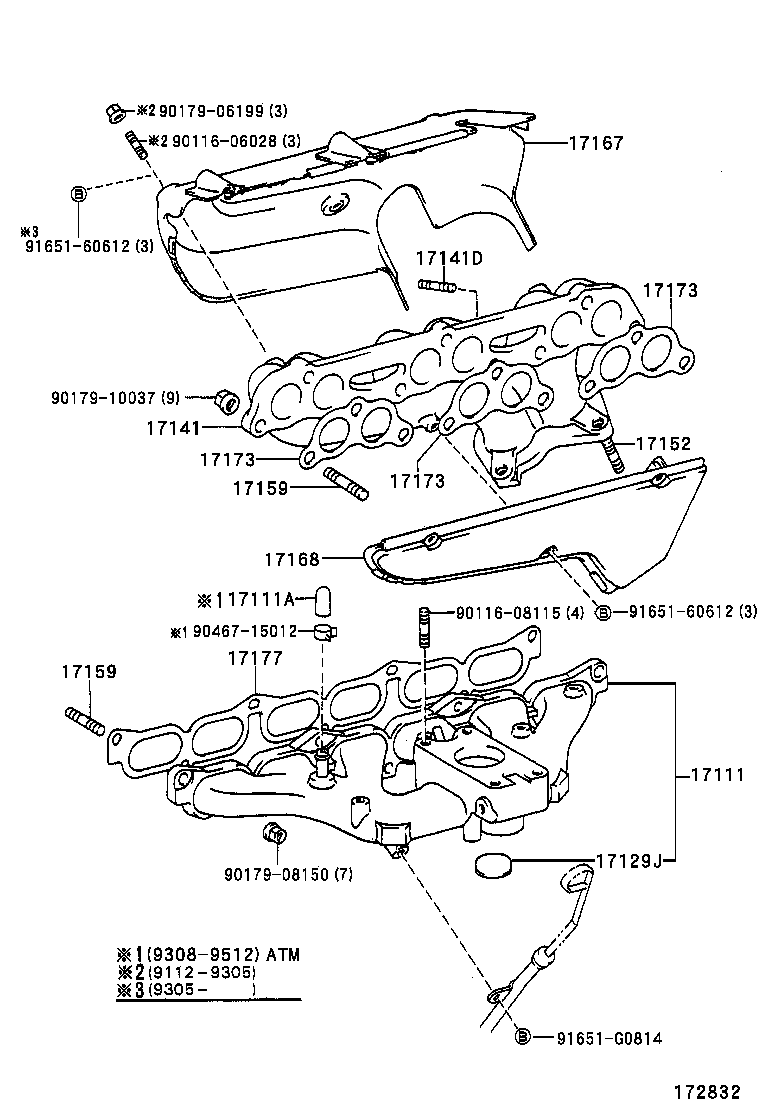

Click highlighted areas on diagram

diagram 17111 17111A 17129J 17141 17141D 17152 17159 17159 17167 17168 17173 17173 17173 17177 9011606028 9011608115 9017906199 9017908150 9017910037 9046715012 9165160612 9165160612 91651G0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-70060

1GGP..GS130

 1
17111A - PLUG, NO.1
90339-11002

1GGP..GS130

 1
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-43000

1GGP..GS130

外径=30

 1
17141 - MANIFOLD, EXHAUST
17141-70050

1GGP..GS130

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

1G#..GS13#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

1G#..GS13#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08225

1GGP..GS130

INTAKE MANIFOLD

 7
90116-10063

1G#..GS13#

EXHAUST MANIFOLD

 9
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08225

1GGP..GS130

INTAKE MANIFOLD

 7
90116-10063

1G#..GS13#

EXHAUST MANIFOLD

 9
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-70030

1GGP..GS130

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-88300

1G#..GS13#

 1
17168-70020

1G#..GS13#

 1
17168-88300

1GGP..GS130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70031

1GGP..GS130

 3
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70031

1GGP..GS130

 3
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70031

1GGP..GS130

 3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-88302

1GGP..GS130

 1
Common parts
90116-06028
90116-08115
90179-06199
90179-08150
90179-10037
90467-15012
91651-60612
91651-G0814
