GS130G-AWSJK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

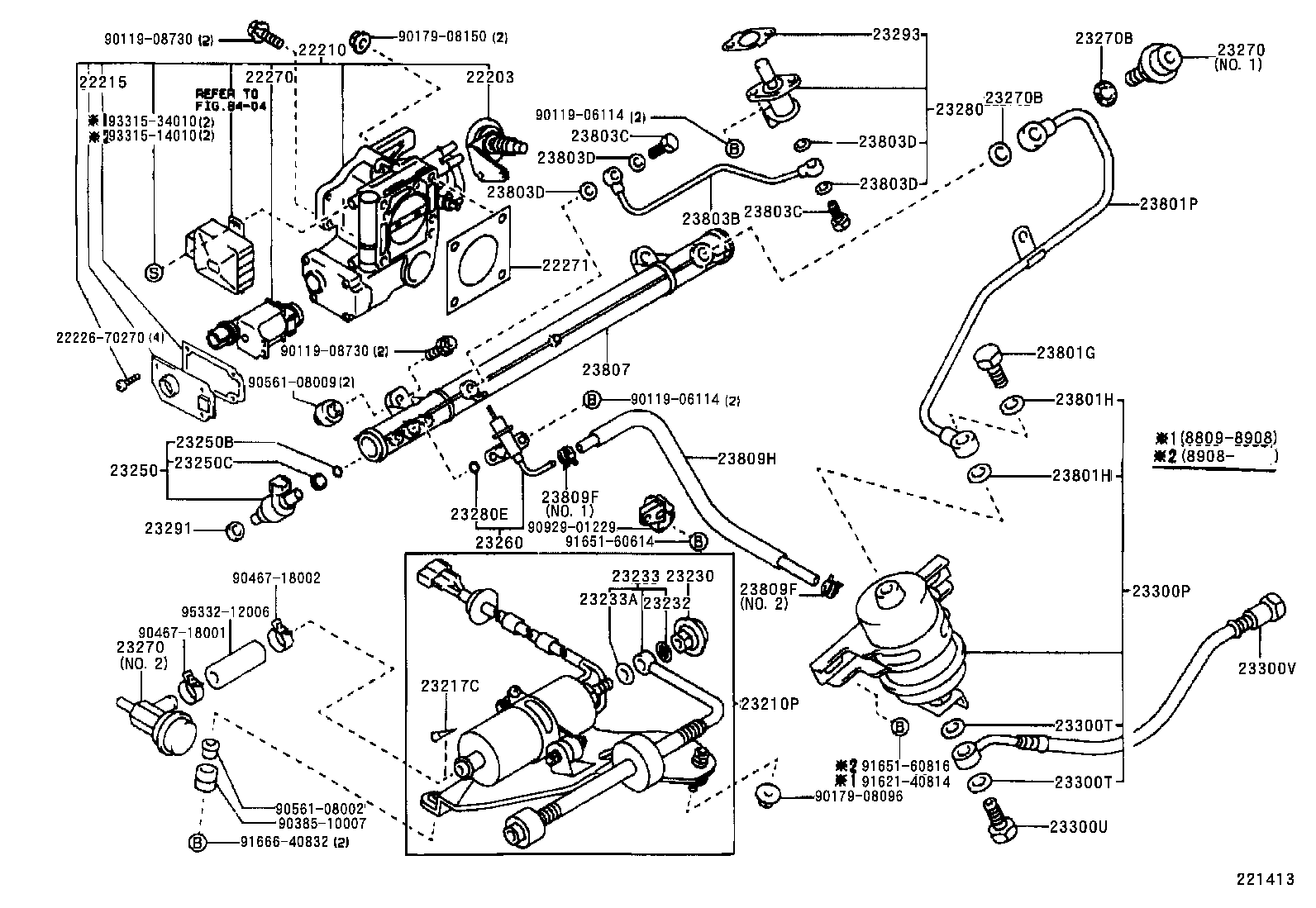

ILLUST NO. 1 OF 3(8809-8908)1GFE

Click highlighted areas on diagram

diagram 22203 22210 22215 2222670270 22270 22271 23210P 23217C 23230 23232 23233 23233A 23250 23250B 23250C 23260 23270 23270 23270B 23270B 23280 23280E 23291 23293 23300P 23300T 23300T 23300U 23300V 23801G 23801H 23801H 23801P 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23809F 23809F 23809H 9011906114 9011906114 9011908730 9011908730 9017908096 9017908150 9038510007 9046718001 9046718002 9056108002 9056108009 9092901229 9162140814 9165160614 9165160816 9166640832 9331514010 9331534010 9533212006
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70080

1GFE..GS13#

 1
22210 - BODY ASSY, THROTTLE
22210-70270

1GFE..GS130,131..ATM

 1
22215 - GASKET, THROTTLE BODY COVER
22215-70270

1GFE..GS13#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
17630-70030

1GFE..GS13#

 1
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS13#

 1
22271-70020

1GFE..GS13#

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-70081

1GE,1GFE..GS130..WG

 1
23217C - FILTER, SUCTION
23217-41100

1GE,1GFE..GS130..WG

 1
23230 - SILENCER ASSY
23230-26080

1GE,1GFE,1GGZE..GS130,136..V,WG

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1GE,1GFE,1GGZE..GS130,136..V,WG

 1
23233 - HOSE, FUEL PUMP
90999-99134

1GE,1GFE,1GGZE..GS130..WG

 1
23239-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23233A - WASHER(FOR FUEL PUMP HOSE)
90099-01496

1GE,1GFE,1GGZE..GS130,136..V,WG

 1
23250 - INJECTOR ASSY, FUEL
23209-70070

1GFE..GS13#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GE,1GFE..GS13#

 6
90480-13005

1GFE,1GGZE,1GGE..GS13#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-79145

1GFE..GS13#

 1
23260-79146

1GFE..GS13#

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE..GS13#

NO.1

 1
23270-70030

1GE,1GFE,1GGZE..GS130..WG

NO.2

 1
23270-70030

1GFE,1GGZE..GS130..WG

NO.2

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE..GS13#

NO.1

 1
23270-70030

1GE,1GFE,1GGZE..GS130..WG

NO.2

 1
23270-70030

1GFE,1GGZE..GS130..WG

NO.2

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE,1GGZE..GS13#

DAMPER SIDE

 1
23232-28010

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
90430-12005

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE,1GGZE..GS13#

DAMPER SIDE

 1
23232-28010

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
90430-12005

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70070

1GFE..GS13#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GE,1GFE..GS13#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23293 - GASKET, COLD START INJECTOR
23293-70020

1GE,1GFE..GS13#

 1
23293-70021

1GFE..GS13#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79015

1GE,1GFE..GS13#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GFE,1GGZE,1GGE..GS13#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01346

1GE,1GFE,1GGZE,1GGE..GS13#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

1GFE,1GG#..GS130,131

 1
90401-12097

1GFE,1GGZE,1GGE..GS13#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GFE,1GG#..GS130,131

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GFE,1GG#..GS130,131

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70060

1GFE..GS13#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70050

1GFE..GS13#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GE,1GFE,1GG#..GS13#

 2
90401-08003

1GFE,1GGZE,1GGE..GS13#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GE,1GFE,1GG#..GS13#

 2
90401-08003

1GFE,1GGZE,1GGE..GS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70040

1GFE..GS13#

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE,1GGZE,1GGE..GS13#

NO.2

 1
90467-13051

1GFE,1GGZE,1GGE..GS13#

NO.1

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE,1GGZE,1GGE..GS13#

NO.2

 1
90467-13051

1GFE,1GGZE,1GGE..GS13#

NO.1

 1
23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR
90447-15026

1GFE..GS13#

 1
Common parts
22226-70270
90119-06114
90119-08730
90179-08096
90179-08150
90385-10007
90467-18001
90467-18002
90561-08002
90561-08009
90929-01229
91621-40814
91651-60614
91651-60816
91666-40832
93315-14010
93315-34010
95332-12006

ILLUST NO. 1 OF 3(8908- )1GFE

Click highlighted areas on diagram

diagram 22203 22210 22215 2222670270 22270 22271 23210P 23210T 23217C 23230 23232 23233 23233A 23250 23250B 23250C 23260 23270 23270B 23270B 23280 23280E 23291 23293 23300P 23300T 23300T 23300U 23300V 23801G 23801H 23801H 23801P 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23809F 23809F 23809H 8404 9011906114 9011906114 9011908730 9011908730 9017908146 9017908150 9038510002 9054105007 9056108002 9056108009 9092901229 9165160614 9165160816 9165640820 9331514010 9411540530
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70080

1GFE..GS13#

 1
22210 - BODY ASSY, THROTTLE
22210-70270

1GFE..GS130,131..ATM

 1
22215 - GASKET, THROTTLE BODY COVER
22215-70270

1GFE..GS13#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
17630-70030

1GFE..GS13#

 1
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS13#

 1
22271-70020

1GFE..GS13#

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-70081

1GE,1GFE..GS130..WG

 1
23217C - FILTER, SUCTION
23217-41100

1GE,1GFE..GS130..WG

 1
23230 - SILENCER ASSY
23230-26080

1GE,1GFE,1GGZE..GS130,136..V,WG

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1GE,1GFE,1GGZE..GS130,136..V,WG

 1
23233 - HOSE, FUEL PUMP
90999-99134

1GE,1GFE,1GGZE..GS130..WG

 1
23239-16010

1GE,1GFE,1GGZE,1GGE..GS130,131..HT,SED

 1
23233A - WASHER(FOR FUEL PUMP HOSE)
90099-01496

1GE,1GFE,1GGZE..GS130,136..V,WG

 1
23250 - INJECTOR ASSY, FUEL
23209-70070

1GFE..GS13#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GE,1GFE..GS13#

 6
90480-13005

1GFE,1GGZE,1GGE..GS13#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-79145

1GFE..GS13#

 1
23260-79146

1GFE..GS13#

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE..GS13#

NO.1

 1
23270-70030

1GE,1GFE,1GGZE..GS130..WG

NO.2

 1
23270-70030

1GFE,1GGZE..GS130..WG

NO.2

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE,1GGZE..GS13#

DAMPER SIDE

 1
23232-28010

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
90430-12005

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE,1GGZE..GS13#

DAMPER SIDE

 1
23232-28010

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
90430-12005

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE..GS13#

DELIVERY PIPE SIDE

 1
90430-12026

1GFE,1GGZE,1GGE..GS13#

DELIVERY PIPE SIDE

 1
23232-41081

1GFE,1GGZE,1GGE..GS13#

DAMPER SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70070

1GFE..GS13#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GE,1GFE..GS13#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GE,1GFE,1GGZE,1GGE..GS13#

 6
23293 - GASKET, COLD START INJECTOR
23293-70020

1GE,1GFE..GS13#

 1
23293-70021

1GFE..GS13#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79015

1GE,1GFE..GS13#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GFE,1GGZE,1GGE..GS13#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01346

1GE,1GFE,1GGZE,1GGE..GS13#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

1GFE,1GG#..GS130,131

 1
90401-12097

1GFE,1GGZE,1GGE..GS13#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GFE,1GG#..GS130,131

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GFE,1GG#..GS130,131

 2
90430-12005

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
90430-12026

1GFE,1GGZE,1GGE..GS13#

 2
90430-12026

1GFE,1GGZE..GS13#

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70060

1GFE..GS13#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70050

1GFE..GS13#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GE,1GFE,1GG#..GS13#

 2
90401-08003

1GFE,1GGZE,1GGE..GS13#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GE,1GFE,1GG#..GS13#

 2
90401-08003

1GFE,1GGZE,1GGE..GS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE,1GFE,1GG#..GS13#

 4
90430-08005

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE,1GGE..GS13#

 4
90430-08012

1GFE,1GGZE..GS13#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70040

1GFE..GS13#

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE,1GGZE,1GGE..GS13#

NO.2

 1
90467-13051

1GFE,1GGZE,1GGE..GS13#

NO.1

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE,1GGZE,1GGE..GS13#

NO.2

 1
90467-13051

1GFE,1GGZE,1GGE..GS13#

NO.1

 1
23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR
90447-15026

1GFE..GS13#

 1
Common parts
22226-70270
90119-06114
90119-08730
90179-08146
90179-08150
90385-10002
90541-05007
90561-08002
90561-08009
90929-01229
91651-60614
91651-60816
91656-40820
93315-14010
94115-40530
Linked diagrams
8404
