GS130G-AWSJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)WG

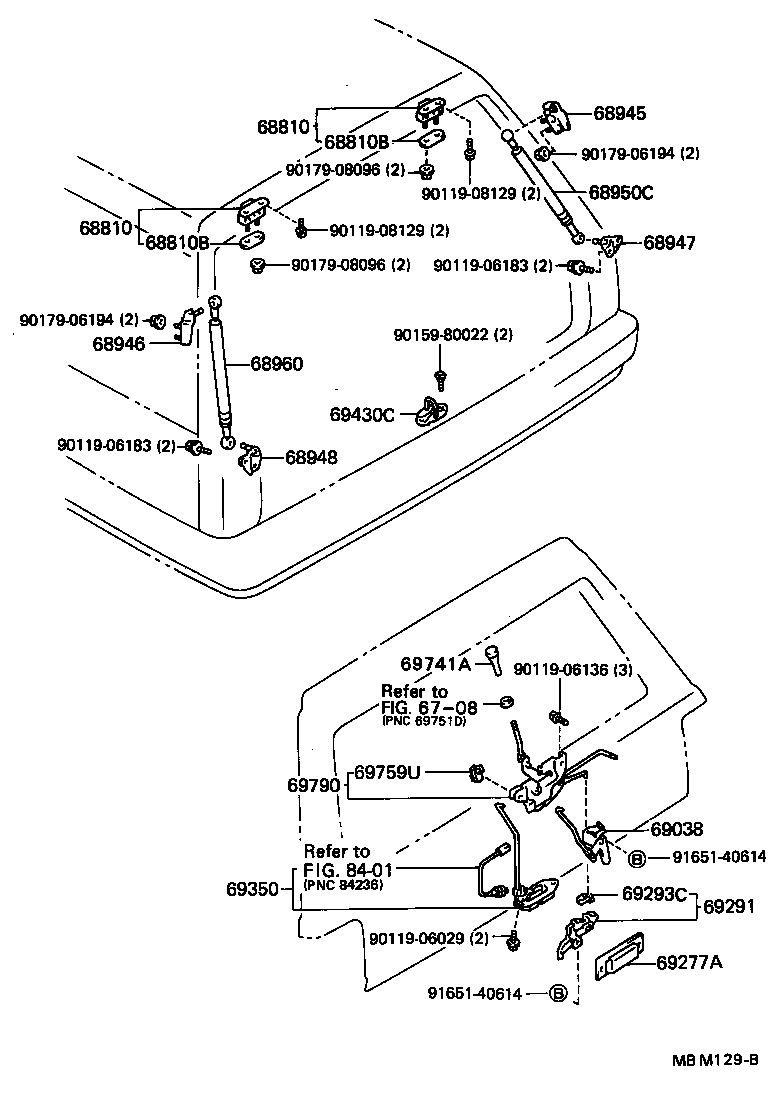

Click highlighted areas on diagram

diagram 6708 68810 68810 68810B 68810B 68945 68946 68947 68948 68950C 68960 69038 69277A 69291 69293C 69350 69430C 69741A 69759U 69790 8401 9011906029 9011906136 9011906183 9011906183 9011908129 9011908129 9015980022 9017906194 9017906194 9017908096 9017908096 9165140614 9165140614
Part # Description Qty Price
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-91705

GS130,136,LS13#..V,WG

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-91705

GS130,136,LS13#..V,WG

 2
68810B - PAD, BACK DOOR HINGE
68838-15010

GS130,136,LS13#..V,WG

 2
68810B - PAD, BACK DOOR HINGE
68838-15010

GS130,136,LS13#..V,WG

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-91701

GS130,136,JZS130,LS130,136..V,WG

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-91701

GS130,136,JZS130,LS130,136..V,WG

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-91701

GS130,136,JZS130,LS130,136..V,WG

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-91701

GS130,136,JZS130,LS130,136..V,WG

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-91709

GS130,LS130..WG

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-91709

GS130,LS130..WG

 1
69038 - PROTECTOR SUB-ASSY, BACK DOOR CHILD
69038-91702

GS130,LS130..WG..(SALEX,SDX)

 1
69277A - BEZEL, BACK DOOR INSIDE HANDLE
69277-9170112

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
69277-9170124

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
69277-9170116

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69209-9170224

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
69209-9170212

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
69209-9170216

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
69293C - SNAP, BACK DOOR HANDLE
69293-12020

GS130,JZS130,LS130..WG

 1
69350 - LOCK ASSY, BACK DOOR
69350-91706

GS130,136,LS13#..V,WG

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-91703

GS130,136,JZS130,LS130,136..V,WG

 1
69741A - KNOB, BACK DOOR LOCK CONTROL
69741-9170112

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
69741-9170134

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
69741-9170116

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
69759U - SNAP, BACK DOOR LOCK CONTROL LINK
69759-24060

GS130,LS130..WG..(SALEX,SDX)

 4
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-91712

GS130,LS130..WG..(SALEX,SDX)

 1
Common parts
90119-06029
90119-06136
90119-06183
90119-08129
90159-80022
90179-06194
90179-08096
91651-40614
Linked diagrams
6708
8401
