GS130G-AWSJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )WG

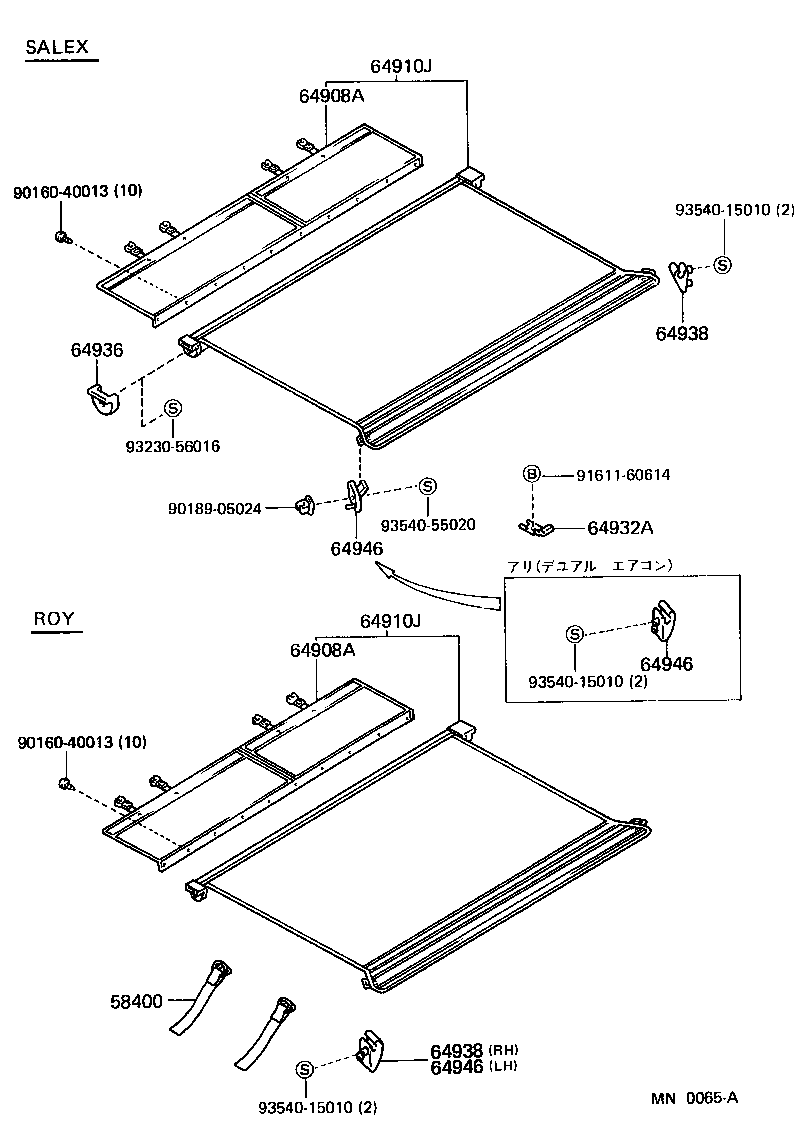

Click highlighted areas on diagram

diagram 58400 64908A 64908A 64910J 64910J 64932A 64936 64938 64938 64946 64946 64946 9016040013 9016040013 9018905024 9161160614 9323056016 9354015010 9354015010 9354015010 9354055020
Part # Description Qty Price
58400 - BELT ASSY, LUGGAGE HOLD, NO.1
58400-9170106

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 2
58400-9170104

GS130,JZS130,LS130..WG..(ROY,SALEX)

BLUE,TRIM8#

 2
58400-9170102

GS130,JZS130,LS130..WG..(ROY,SALEX)

MAROON,TRIM3#

 2
64908A - COVER SUB-ASSY, TONNEAU SUB
64908-9170204

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),BLUE,TRIM8#

 1
64908-9170302

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64908-9170202

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),MAROON,TRIM3#

 1
64908-9170304

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64908-9170206

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),SABLE,TRIM4#

 1
64908-9170306

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64908A - COVER SUB-ASSY, TONNEAU SUB
64908-9170204

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),BLUE,TRIM8#

 1
64908-9170302

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64908-9170202

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),MAROON,TRIM3#

 1
64908-9170304

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64908-9170206

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),SABLE,TRIM4#

 1
64908-9170306

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64910J - COVER ASSY, TONNEAU
64910-9170406

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),SABLE,TRIM4#

 1
64910-9170404

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),BLUE,TRIM8#

 1
64910-9170402

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),MAROON,TRIM3#

 1
64910-9170304

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64910-9170302

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64910-9170306

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64910J - COVER ASSY, TONNEAU
64910-9170406

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),SABLE,TRIM4#

 1
64910-9170404

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),BLUE,TRIM8#

 1
64910-9170402

GS130,LS130..WG..SALEX

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),MAROON,TRIM3#

 1
64910-9170304

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64910-9170302

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64910-9170306

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64932A - HANGER, TONNEAU COVER, NO.2
64932-91702

GS130,LS130..WG..SALEX

 1
64936 - HOLDER, TONNEAU COVER, LH
64936-9170202

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64936-9170204

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64936-9170206

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64938 - HOOK, TONNEAU COVER, A
64938-9170202

GS130,JZS130,LS130..WG..(ROY,SALEX)

MAROON,TRIM3#

 1
64938-9170206

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
64938-9170204

GS130,JZS130,LS130..WG..(ROY,SALEX)

BLUE,TRIM8#

 1
64938 - HOOK, TONNEAU COVER, A
64938-9170202

GS130,JZS130,LS130..WG..(ROY,SALEX)

MAROON,TRIM3#

 1
64938-9170206

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
64938-9170204

GS130,JZS130,LS130..WG..(ROY,SALEX)

BLUE,TRIM8#

 1
64946 - HOOK, TONNEAU COVER, B
64946-9170202

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64946-9170204

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64946-9170206

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64946 - HOOK, TONNEAU COVER, B
64946-9170202

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64946-9170204

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64946-9170206

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64946 - HOOK, TONNEAU COVER, B
64946-9170202

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64946-9170204

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64946-9170206

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
Common parts
90160-40013
90189-05024
91611-60614
93230-56016
93540-15010
93540-55020
