GS130G-AWSJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )V,WG

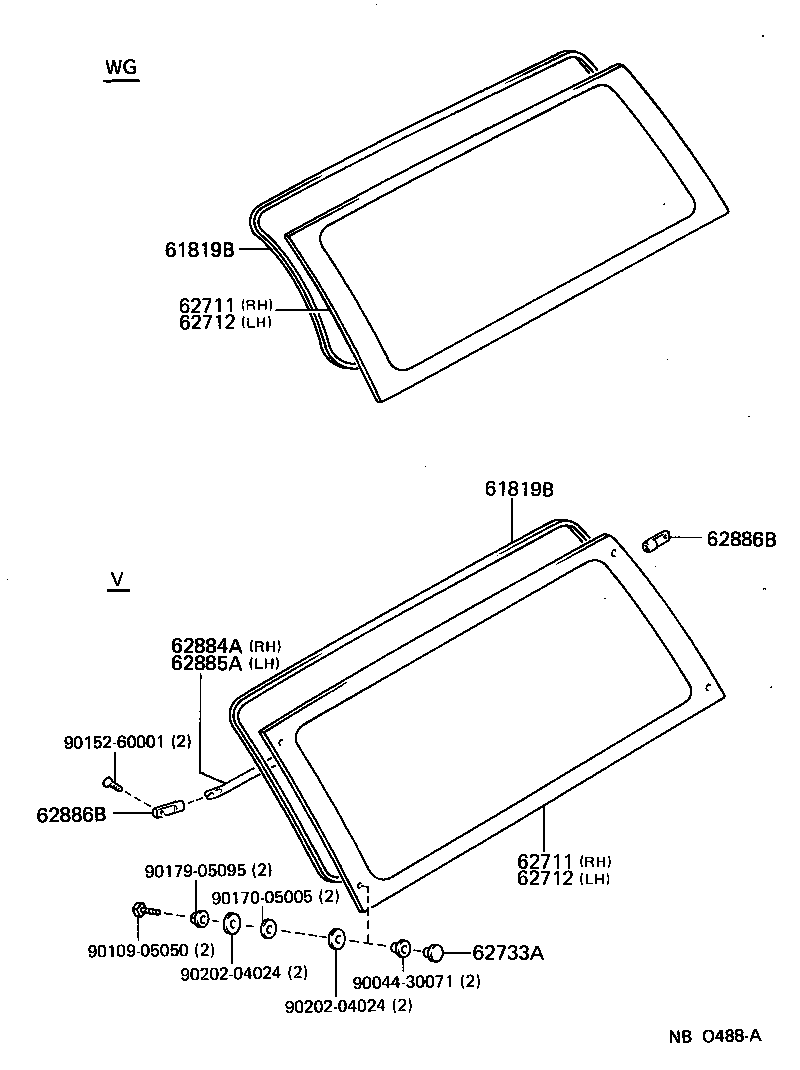

Click highlighted areas on diagram

diagram 61819B 61819B 62711 62711 62712 62712 62733A 62884A 62885A 62886B 62886B 9004430071 9010905050 9015260001 9017005005 9017905095 9020204024 9020204024
Part # Description Qty Price
61819B - SEAL, QUARTER WINDOW REAR SHIELD
61819-91703

GS130,136,JZS130,LS130,136..V,WG

 2
61819B - SEAL, QUARTER WINDOW REAR SHIELD
61819-91703

GS130,136,JZS130,LS130,136..V,WG

 2
62711 - GLASS, QUARTER WINDOW, RH
62711-91713

GS130,LS130..WG

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
62711-91714

GS130,LS130..WG..(ROY,SALEX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-91713

GS130,LS130..WG

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
62711-91714

GS130,LS130..WG..(ROY,SALEX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-91713

GS130,LS130..WG

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
62712-91714

GS130,LS130..WG..(ROY,SALEX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-91713

GS130,LS130..WG

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
62712-91714

GS130,LS130..WG..(ROY,SALEX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
Common parts
90044-30071
90109-05050
90152-60001
90170-05005
90179-05095
90202-04024
