GS130G-AWSJE (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
1GE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8709-8908)1GE

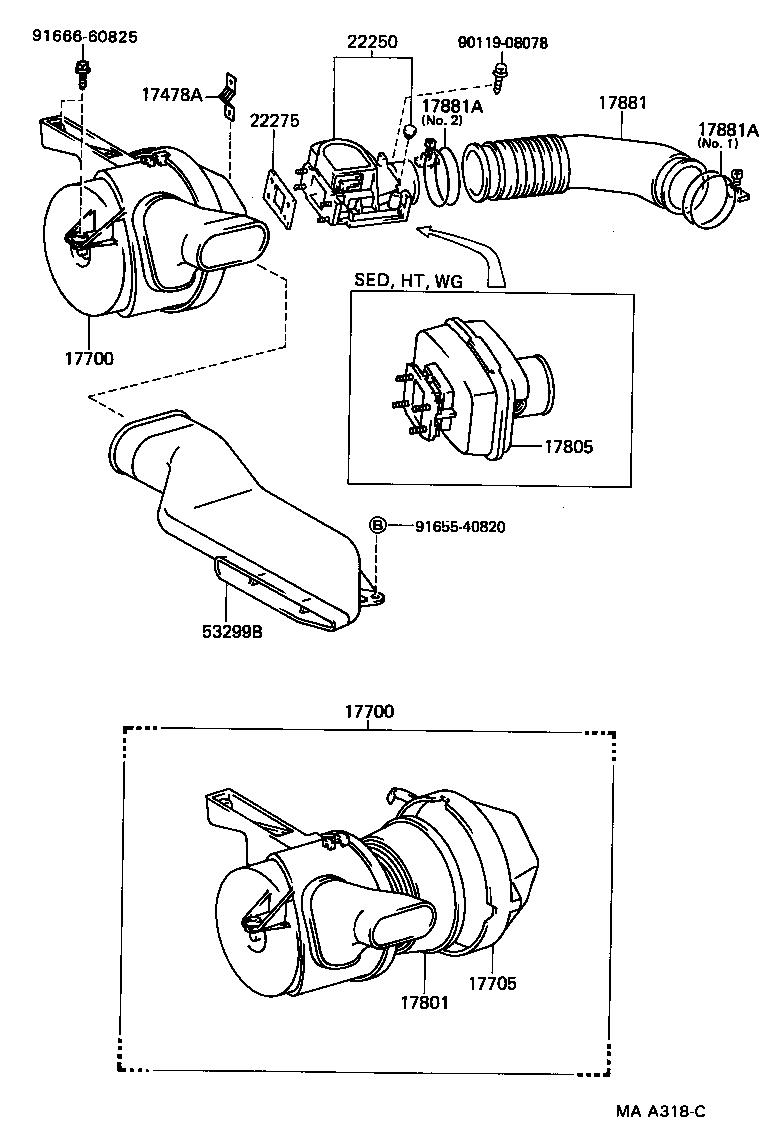

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17478A - PLATE, LOCK | ||||
| 17478-43010 |
1GE,1GFE,1GGZE,1GGE..GS13# |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70080 |
1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70080 |
1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-42130 |
1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
1GE,1GFE,1GGZE,1GGE..GS13# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-70080 |
1GE..GS130,131 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-70191 |
1GE..GS130,131 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1GE..GS13# NO.1 |
1 | ||
| 96111-10800 |
1GE..GS13# NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1GE..GS13# NO.1 |
1 | ||
| 96111-10800 |
1GE..GS13# NO.2 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131 |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-30160 |
GS13#..EFI,HTWC,SPC,TWC |
1 | ||
| Common parts | ||||
| 90119-08078 | ||||
| 91655-40820 | ||||
| 91666-60825 | ||||
