GS130G-AWSJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

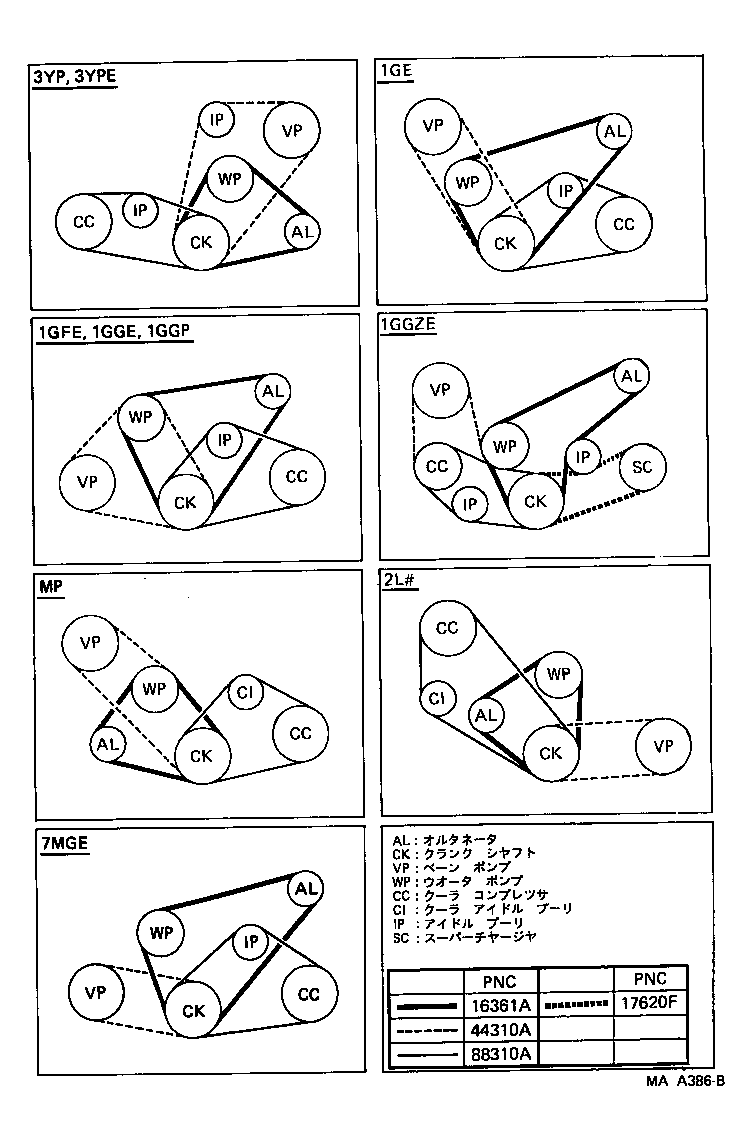

Click highlighted areas on diagram

diagram 16361A 17620F 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-01100

1GE..GS13#

 1
44310A - BELT, V(FOR VANE PUMP)
99322-01100

GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-50840

GS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI

 1
