Toyota Crown GS130 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
JP
CROWN
GS130G-AWPQR (1987)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

GS130G-AWPQR (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 1GGZE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8809- )SPC ; (8908- )TWLPG

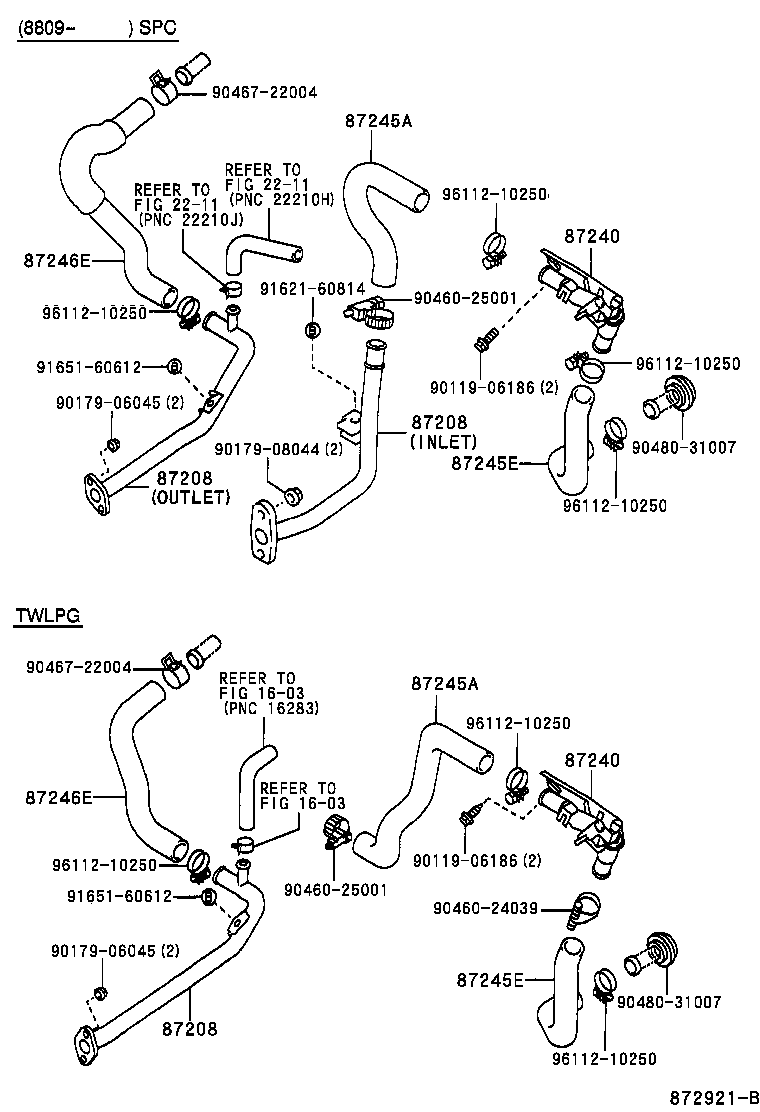

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-30020	GS130,131..SPC	09/1987 - 09/1988	1
87208-30030	GS130,131..SPC INLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC OUTLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC..NOB	04/1990 - 05/1990	1
87208-30030	GS130,131..SPC INLET	08/1989 - 04/1990	1
87208-30021	GS130,131..SPC OUTLET	08/1989 - 05/1990	1
87208-30022	GS130,131..SPC OUTLET	05/1990 - 10/1991	1
87208-30031	GS130,131..SPC INLET	04/1990 - 10/1991	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-30020	GS130,131..SPC	09/1987 - 09/1988	1
87208-30030	GS130,131..SPC INLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC OUTLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC..NOB	04/1990 - 05/1990	1
87208-30030	GS130,131..SPC INLET	08/1989 - 04/1990	1
87208-30021	GS130,131..SPC OUTLET	08/1989 - 05/1990	1
87208-30022	GS130,131..SPC OUTLET	05/1990 - 10/1991	1
87208-30031	GS130,131..SPC INLET	04/1990 - 10/1991	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-30020	GS130,131..SPC	09/1987 - 09/1988	1
87208-30030	GS130,131..SPC INLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC OUTLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC..NOB	04/1990 - 05/1990	1
87208-30030	GS130,131..SPC INLET	08/1989 - 04/1990	1
87208-30021	GS130,131..SPC OUTLET	08/1989 - 05/1990	1
87208-30022	GS130,131..SPC OUTLET	05/1990 - 10/1991	1
87208-30031	GS130,131..SPC INLET	04/1990 - 10/1991	1
87240 - VALVE ASSY, HEATER WATER
87240-30550	GS13#,JZS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,SPC,TWC)	09/1987 - 10/1991	1
87240 - VALVE ASSY, HEATER WATER
87240-30550	GS13#,JZS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,SPC,TWC)	09/1987 - 10/1991	1
87245A - HOSE, HEATER WATER, INLET A
87245-3A320	GS130,131..SPC,TWC	09/1987 - 09/1988	1
87245-3A390	GS130,131..SPC	09/1988 - 08/1989	1
87245-3A390	GS130,131..SPC	08/1989 - 10/1991	1
87245A - HOSE, HEATER WATER, INLET A
87245-3A320	GS130,131..SPC,TWC	09/1987 - 09/1988	1
87245-3A390	GS130,131..SPC	09/1988 - 08/1989	1
87245-3A390	GS130,131..SPC	08/1989 - 10/1991	1
87245E - HOSE, HEATER WATER, INLET E
87245-3A260	GS13#,LS13#,MS13#,YS130	09/1987 - 08/1989	1
87245-3A260	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	05/1990 - 10/1991	1
87245-3A260	GS13#,LS13#,MS13#,UZS131,YS130	08/1989 - 05/1990	1
87245E - HOSE, HEATER WATER, INLET E
87245-3A260	GS13#,LS13#,MS13#,YS130	09/1987 - 08/1989	1
87245-3A260	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	05/1990 - 10/1991	1
87245-3A260	GS13#,LS13#,MS13#,UZS131,YS130	08/1989 - 05/1990	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3A360	GS13#..HTWC,SPC,TWC	09/1987 - 10/1991	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3A360	GS13#..HTWC,SPC,TWC	09/1987 - 10/1991	1
Common parts
90119-06186
90179-06045
90179-08044
90460-24039
90460-25001
90467-22004
90480-31007
91621-60814
91651-60612
96112-10250
Linked diagrams
1603
2211

(8709-8809)SPC ; (8809- )HTWC

Click highlighted areas on diagram

Part #	Description	Period	Qty
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
90407-17001	GS130,131..SPC,TWC	09/1987 - 09/1988	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-30020	GS130,131..SPC	09/1987 - 09/1988	1
87208-30030	GS130,131..SPC INLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC OUTLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC..NOB	04/1990 - 05/1990	1
87208-30030	GS130,131..SPC INLET	08/1989 - 04/1990	1
87208-30021	GS130,131..SPC OUTLET	08/1989 - 05/1990	1
87208-30022	GS130,131..SPC OUTLET	05/1990 - 10/1991	1
87208-30031	GS130,131..SPC INLET	04/1990 - 10/1991	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-30020	GS130,131..SPC	09/1987 - 09/1988	1
87208-30030	GS130,131..SPC INLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC OUTLET	09/1988 - 08/1989	1
87208-30021	GS130,131..SPC..NOB	04/1990 - 05/1990	1
87208-30030	GS130,131..SPC INLET	08/1989 - 04/1990	1
87208-30021	GS130,131..SPC OUTLET	08/1989 - 05/1990	1
87208-30022	GS130,131..SPC OUTLET	05/1990 - 10/1991	1
87208-30031	GS130,131..SPC INLET	04/1990 - 10/1991	1
87240 - VALVE ASSY, HEATER WATER
87240-30550	GS13#,JZS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,SPC,TWC)	09/1987 - 10/1991	1
87240 - VALVE ASSY, HEATER WATER
87240-30550	GS13#,JZS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,SPC,TWC)	09/1987 - 10/1991	1
87245A - HOSE, HEATER WATER, INLET A
87245-3A320	GS130,131..SPC,TWC	09/1987 - 09/1988	1
87245-3A390	GS130,131..SPC	09/1988 - 08/1989	1
87245-3A390	GS130,131..SPC	08/1989 - 10/1991	1
87245A - HOSE, HEATER WATER, INLET A
87245-3A320	GS130,131..SPC,TWC	09/1987 - 09/1988	1
87245-3A390	GS130,131..SPC	09/1988 - 08/1989	1
87245-3A390	GS130,131..SPC	08/1989 - 10/1991	1
87245E - HOSE, HEATER WATER, INLET E
87245-3A260	GS13#,LS13#,MS13#,YS130	09/1987 - 08/1989	1
87245-3A260	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	05/1990 - 10/1991	1
87245-3A260	GS13#,LS13#,MS13#,UZS131,YS130	08/1989 - 05/1990	1
87245E - HOSE, HEATER WATER, INLET E
87245-3A260	GS13#,LS13#,MS13#,YS130	09/1987 - 08/1989	1
87245-3A260	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	05/1990 - 10/1991	1
87245-3A260	GS13#,LS13#,MS13#,UZS131,YS130	08/1989 - 05/1990	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3A360	GS13#..HTWC,SPC,TWC	09/1987 - 10/1991	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3A360	GS13#..HTWC,SPC,TWC	09/1987 - 10/1991	1
Common parts
90119-06142
90119-06186
90179-06045
90460-25001
90467-22004
90480-31007
91651-60612
96112-10250
Linked diagrams
1104
1601
1603
2211

(8710- )

Click highlighted areas on diagram

WATER PANEL HEATER

Part #	Description	Period	Qty

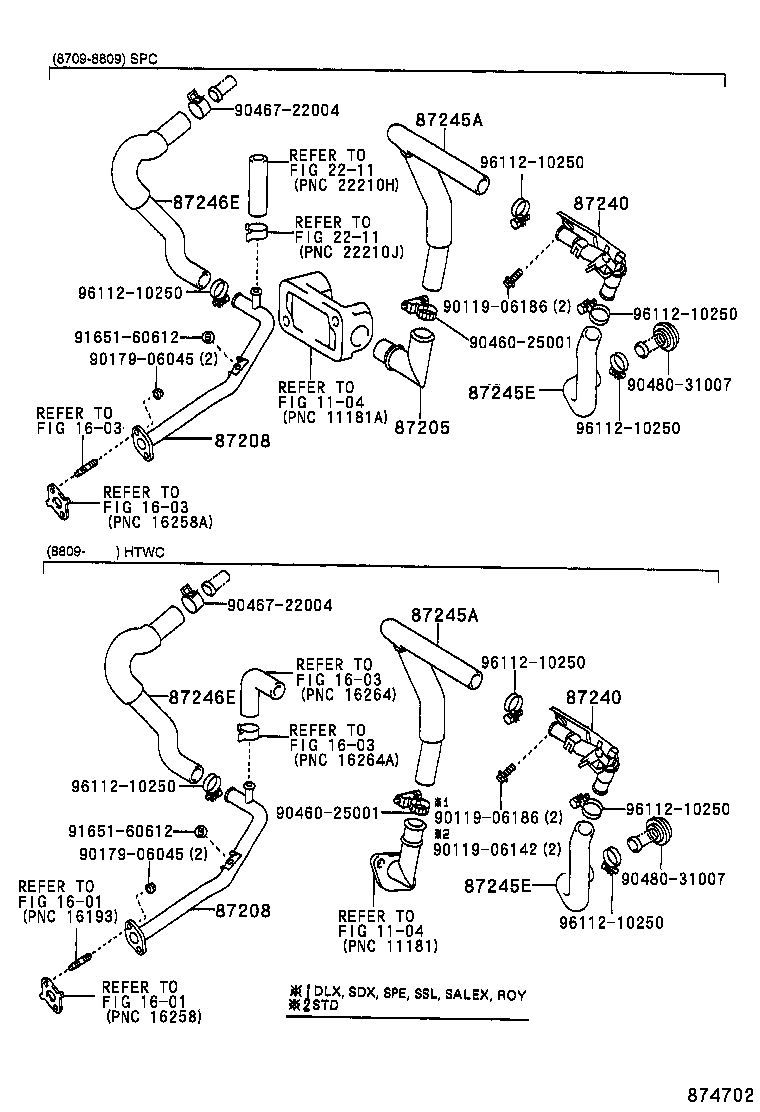

87245X - HOSE, HEATER WATER
99556-12500	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 長さ=500	10/1987 - 10/1991	1
99556-10110	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 *H,L=110	08/1989 - 10/1991	1
87248 - PIPE SUB-ASSY, WATER
87248-20300	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.1	10/1987 - 10/1991	1
87248-30260	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.2	10/1987 - 10/1991	1
87248 - PIPE SUB-ASSY, WATER
87248-20300	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.1	10/1987 - 10/1991	1
87248-30260	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.2	10/1987 - 10/1991	1
Common parts
82711-12200
90339-07001
90445-23006
90460-14085
90467-13001
90467-22004
Linked diagrams
7502

GS130G-AWPQR (1987)

(8809- )SPC ; (8908- )TWLPG

(8709-8809)SPC ; (8809- )HTWC

(8710- )

Part Price Details
