Toyota Crown GS130 IGNITION COIL & SPARK PLUG / GLOW PLUG

Manufacturers Home
Toyota
JP
CROWN
GS130G-AWPQR (1987)
1901 - IGNITION COIL & SPARK PLUG / GLOW PLUG

GS130G-AWPQR (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 1GGZE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

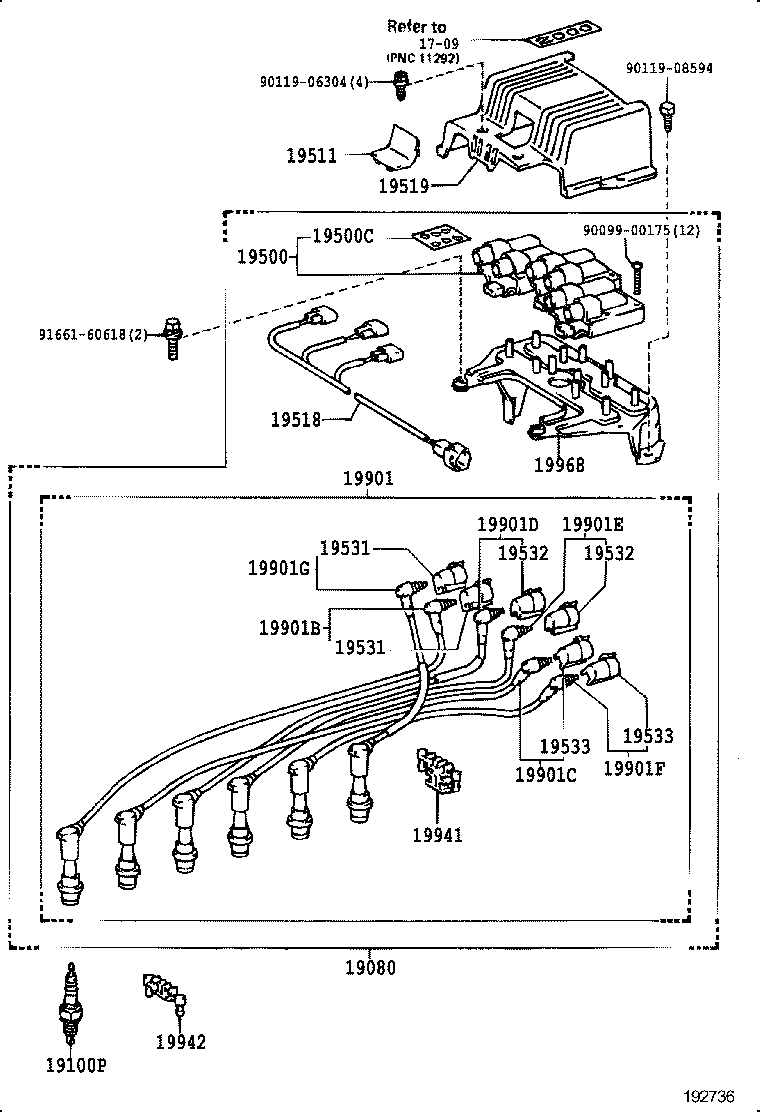

(8709-8809)1GGZE

Click highlighted areas on diagram

Part #	Description	Period	Qty
19080 - COIL ASSY, W/BRACKET & CORD
19080-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19080-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19100P - PLUG, SPARK
90919-01145	1GGZE..GS130,131 PQ20R	09/1987 - 09/1988	6
90919-01146	1GGZE..GS130,131 BCPR6EP	09/1987 - 09/1988	6
90919-01172	1GGZE..GS130,131 DENSO	09/1988 - 10/1991	6
90919-01173	1GGZE..GS130,131 NGK	09/1988 - 10/1991	6
19500 - COIL ASSY, IGNITION
90919-02174	1GGZE..GS130,131	09/1987 - 09/1988	3
90919-02189	1GGZE..GS130,131	09/1988 - 10/1991	3
19500C - PLATE(FOR IGNITION COIL)
11293-70130	1GGZE..GS130,131	09/1987 - 09/1988	3
19511 - COVER, IGNITION COIL, NO.2
19511-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19518 - WIRE, IGNITION COIL
19518-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19518-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19519 - COVER, IGNITION COIL
19519-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19519-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-70010	1GGZE..GS130,131	09/1987 - 09/1988	2
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-70010	1GGZE..GS130,131	09/1987 - 09/1988	2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-70010	1GGZE..GS130,131	09/1987 - 09/1988	2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-70010	1GGZE..GS130,131	09/1987 - 09/1988	2
19533 - HOLDER, RESISTIVE CORD, NO.3
19533-70010	1GGZE..GS130,131	09/1987 - 09/1988	2
19533 - HOLDER, RESISTIVE CORD, NO.3
19533-70010	1GGZE..GS130,131	09/1987 - 09/1988	2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22170	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-22240	1GGZE..GS130,131	09/1988 - 10/1991	1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12612	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-12886	1GGZE..GS130,131	09/1988 - 10/1991	1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12613	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-12887	1GGZE..GS130,131	09/1988 - 10/1991	1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12614	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-12888	1GGZE..GS130,131	09/1988 - 10/1991	1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12615	1GGZE..GS130,131	09/1987 - 09/1988	1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12616	1GGZE..GS130,131	09/1987 - 09/1988	1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12617	1GGZE..GS130,131	09/1987 - 09/1988	1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01121	1GGZE..GS130,131	09/1987 - 09/1988	1
90464-00487	1GGZE..GS130,131	09/1988 - 10/1991	1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00510	1GGZE..GS130,131 NO.2	09/1988 - 10/1991	2
90929-01120	1GGZE..GS130,131	09/1987 - 09/1988	1
90929-01222	1GGZE..GS130,131 NO.1	09/1988 - 10/1991	1
19968 - BRACKET, IGNITION COIL
19968-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19968-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
Common parts
90099-00175
90119-06304
90119-08594
91661-60618
Linked diagrams
1709

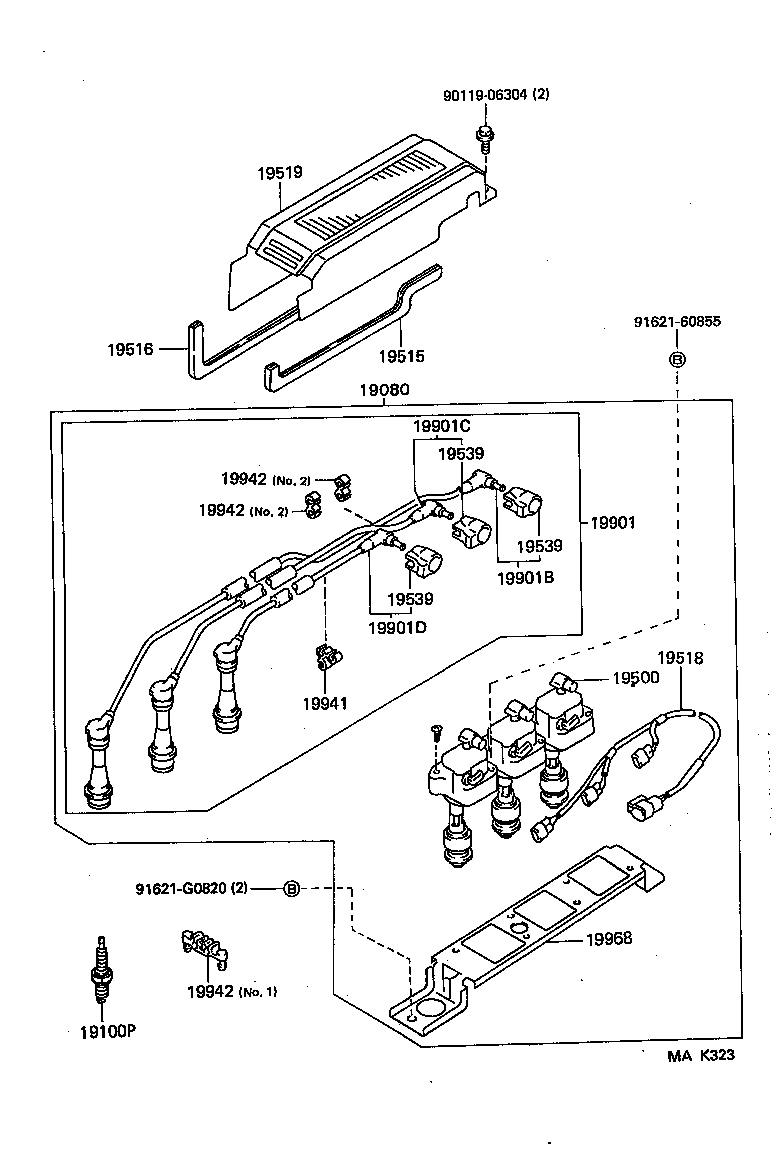

(8809- )1GGZE

Click highlighted areas on diagram

Part #	Description	Period	Qty
19080 - COIL ASSY, W/BRACKET & CORD
19080-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19080-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19100P - PLUG, SPARK
90919-01145	1GGZE..GS130,131 PQ20R	09/1987 - 09/1988	6
90919-01146	1GGZE..GS130,131 BCPR6EP	09/1987 - 09/1988	6
90919-01172	1GGZE..GS130,131 DENSO	09/1988 - 10/1991	6
90919-01173	1GGZE..GS130,131 NGK	09/1988 - 10/1991	6
19500 - COIL ASSY, IGNITION
90919-02174	1GGZE..GS130,131	09/1987 - 09/1988	3
90919-02189	1GGZE..GS130,131	09/1988 - 10/1991	3
19515 - GASKET, IGNITION COIL COVER, NO.1
19515-70010	1GGZE..GS130,131	09/1988 - 10/1991	1
19516 - GASKET, IGNITION COIL COVER, NO.2
19516-70010	1GGZE..GS130,131	09/1988 - 10/1991	1
19518 - WIRE, IGNITION COIL
19518-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19518-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19519 - COVER, IGNITION COIL
19519-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
19519-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010	1GGZE..GS130,131	09/1988 - 10/1991	3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010	1GGZE..GS130,131	09/1988 - 10/1991	3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010	1GGZE..GS130,131	09/1988 - 10/1991	3
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22170	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-22240	1GGZE..GS130,131	09/1988 - 10/1991	1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12612	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-12886	1GGZE..GS130,131	09/1988 - 10/1991	1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12613	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-12887	1GGZE..GS130,131	09/1988 - 10/1991	1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12614	1GGZE..GS130,131	09/1987 - 09/1988	1
90919-12888	1GGZE..GS130,131	09/1988 - 10/1991	1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01121	1GGZE..GS130,131	09/1987 - 09/1988	1
90464-00487	1GGZE..GS130,131	09/1988 - 10/1991	1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00510	1GGZE..GS130,131 NO.2	09/1988 - 10/1991	2
90929-01120	1GGZE..GS130,131	09/1987 - 09/1988	1
90929-01222	1GGZE..GS130,131 NO.1	09/1988 - 10/1991	1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00510	1GGZE..GS130,131 NO.2	09/1988 - 10/1991	2
90929-01120	1GGZE..GS130,131	09/1987 - 09/1988	1
90929-01222	1GGZE..GS130,131 NO.1	09/1988 - 10/1991	1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00510	1GGZE..GS130,131 NO.2	09/1988 - 10/1991	2
90929-01120	1GGZE..GS130,131	09/1987 - 09/1988	1
90929-01222	1GGZE..GS130,131 NO.1	09/1988 - 10/1991	1
19968 - BRACKET, IGNITION COIL
19968-70020	1GGZE..GS130,131	09/1988 - 10/1991	1
19968-70010	1GGZE..GS130,131	09/1987 - 09/1988	1
Common parts
90119-06304
91621-60855
91621-G0820
