GS130G-AWPJK (1988)
Toyota Crown
(8709-8908)GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL

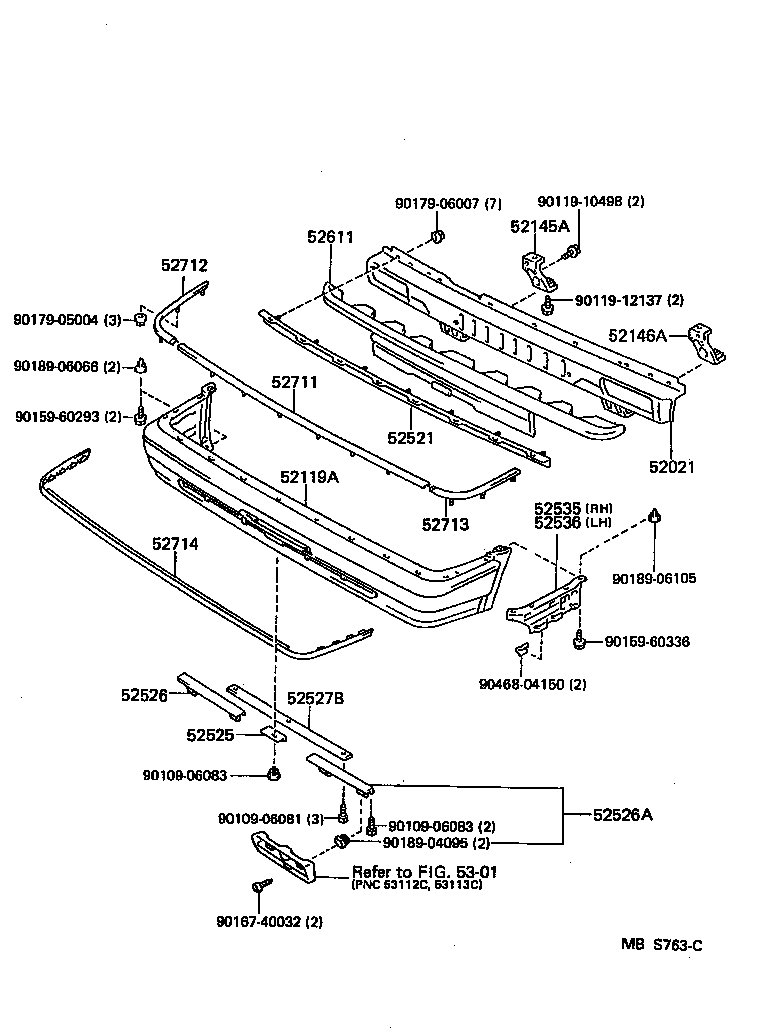

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-30090 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52021-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3009003 |
GS130,LS130..WG SUPER SILVER 2. M,166 |
1 | ||
| 52119-3009002 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL DARK RED MICA,3H3 |
1 | ||
| 52119-3009008 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL SUPER WHITE 2,040 |
1 | ||
| 52119-3009001 |
GS130,131,LS130,MS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL) BLACK,202 |
1 | ||
| 52119-3009013 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL GRAY MICA. M,170 |
1 | ||
| 52119-3009005 |
GS130,LS130..WG..(ROY,SALEX) NOBLE ESTATE TONING,25G |
1 | ||
| 52119-3009004 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL DARK BLUE. M,869 |
1 | ||
| 52119-3009033 |
GS130,131,LS130..HT SILKY ELEGANT TONING,24G |
1 | ||
| 52119-3009023 |
GS130,131,LS130,MS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL) GRAY. M,167 |
1 | ||
| 52119-3009003 |
GS130..WG..SDX;GS130,131,LS130..(SED,WG)..(ROY,SAL,SALEX) SUPER SILVER 2. M,166 |
1 | ||
| 52119-3011013 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB GRAY MICA M,170 |
1 | ||
| 52119-3011003 |
YS130..DLX;GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLUISH GRAY M,182 |
1 | ||
| 52119-3011001 |
YS130..DLX;GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLACK,202 |
1 | ||
| 52119-3011008 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB SUPER WHITE 4,050 |
1 | ||
| 52119-3011004 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK BLUE M,869 |
1 | ||
| 52119-3011043 |
GS130,LS130..WG;GS131,LS131..SED SUPER SILVER 2 M,166 |
1 | ||
| 52119-3011002 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK RED MICA,3H3 |
1 | ||
| 52119-3011023 |
GS130,131,LS130,131..(HT,WG)..(ROY,SALEX,SPE,SSL)..NOB WARM SILVER M,24G |
1 | ||
| 52119-3011001 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLACK,202 |
1 | ||
| 52119-3011002 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK RED MICA,3H3 |
1 | ||
| 52119-3011008 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB SUPER WHITE 4,050 |
1 | ||
| 52119-3011004 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK BLUE M,869 |
1 | ||
| 52119-3011013 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB GRAY MICA M,170 |
1 | ||
| 52119-3011003 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLUISH GRAY M,182 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-30030 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52145-30030 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-30030 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52146-30030 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-30050 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52521-30080 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52521-30080 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-30040 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-30010 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52527-30010 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30060 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52535-30090 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52535-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30060 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52536-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52536-30090 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30070 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52611-30070 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52611-30040 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30030 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52711-30060 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52711-30090 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52711-30100 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52711-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52714 - PLUG, FRONT BUMPER MOULDING, LH | ||||
| 52714-30050 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52714-30080 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52714-30080 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-30020 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52721-30050 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-30020 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52722-30050 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90109-06083 | ||||
| 90119-10498 | ||||
| 90119-12137 | ||||
| 90159-60293 | ||||
| 90159-60336 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90189-06066 | ||||
| 90189-06105 | ||||
| 90468-04150 | ||||
| 90540-08009 | ||||
(8908- )GS130,131,LS130,131..ROY,SAL,SALEX,SDX,SPE,SSL..NOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-30090 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52021-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3009003 |
GS130,LS130..WG SUPER SILVER 2. M,166 |
1 | ||
| 52119-3009002 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL DARK RED MICA,3H3 |
1 | ||
| 52119-3009008 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL SUPER WHITE 2,040 |
1 | ||
| 52119-3009001 |
GS130,131,LS130,MS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL) BLACK,202 |
1 | ||
| 52119-3009013 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL GRAY MICA. M,170 |
1 | ||
| 52119-3009005 |
GS130,LS130..WG..(ROY,SALEX) NOBLE ESTATE TONING,25G |
1 | ||
| 52119-3009004 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL DARK BLUE. M,869 |
1 | ||
| 52119-3009033 |
GS130,131,LS130..HT SILKY ELEGANT TONING,24G |
1 | ||
| 52119-3009023 |
GS130,131,LS130,MS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL) GRAY. M,167 |
1 | ||
| 52119-3009003 |
GS130..WG..SDX;GS130,131,LS130..(SED,WG)..(ROY,SAL,SALEX) SUPER SILVER 2. M,166 |
1 | ||
| 52119-3011013 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB GRAY MICA M,170 |
1 | ||
| 52119-3011003 |
YS130..DLX;GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLUISH GRAY M,182 |
1 | ||
| 52119-3011001 |
YS130..DLX;GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLACK,202 |
1 | ||
| 52119-3011008 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB SUPER WHITE 4,050 |
1 | ||
| 52119-3011004 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK BLUE M,869 |
1 | ||
| 52119-3011043 |
GS130,LS130..WG;GS131,LS131..SED SUPER SILVER 2 M,166 |
1 | ||
| 52119-3011002 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK RED MICA,3H3 |
1 | ||
| 52119-3011023 |
GS130,131,LS130,131..(HT,WG)..(ROY,SALEX,SPE,SSL)..NOB WARM SILVER M,24G |
1 | ||
| 52119-3011001 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLACK,202 |
1 | ||
| 52119-3011002 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK RED MICA,3H3 |
1 | ||
| 52119-3011008 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB SUPER WHITE 4,050 |
1 | ||
| 52119-3011004 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB DARK BLUE M,869 |
1 | ||
| 52119-3011013 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB GRAY MICA M,170 |
1 | ||
| 52119-3011003 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB BLUISH GRAY M,182 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-30030 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52145-30030 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-30030 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52146-30030 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-30050 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52521-30080 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52521-30080 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-30030 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52525-30030 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-30070 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
2 | ||
| 52526-30070 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
2 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-30040 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-30010 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52527-30010 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30060 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52535-30090 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52535-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30060 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52536-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52536-30090 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30070 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52611-30070 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52611-30040 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30030 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52711-30060 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52711-30090 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52711-30100 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52711-30090 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-30050 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52712-30050 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52712-30060 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52713 - PLUG, FRONT BUMPER MOULDING | ||||
| 52713-30050 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52713-30060 |
GS130,131,LS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52713-30050 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52714 - PLUG, FRONT BUMPER MOULDING, LH | ||||
| 52714-30050 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52714-30080 |
YS130..DLX;GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52714-30080 |
GS130,131,LS130,131..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90109-06083 | ||||
| 90119-10498 | ||||
| 90119-12137 | ||||
| 90159-60293 | ||||
| 90159-60336 | ||||
| 90167-40032 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90189-04095 | ||||
| 90189-06066 | ||||
| 90189-06105 | ||||
| 90468-04150 | ||||
| Linked diagrams | ||||
| 5301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
