GS130G-AWPJK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE

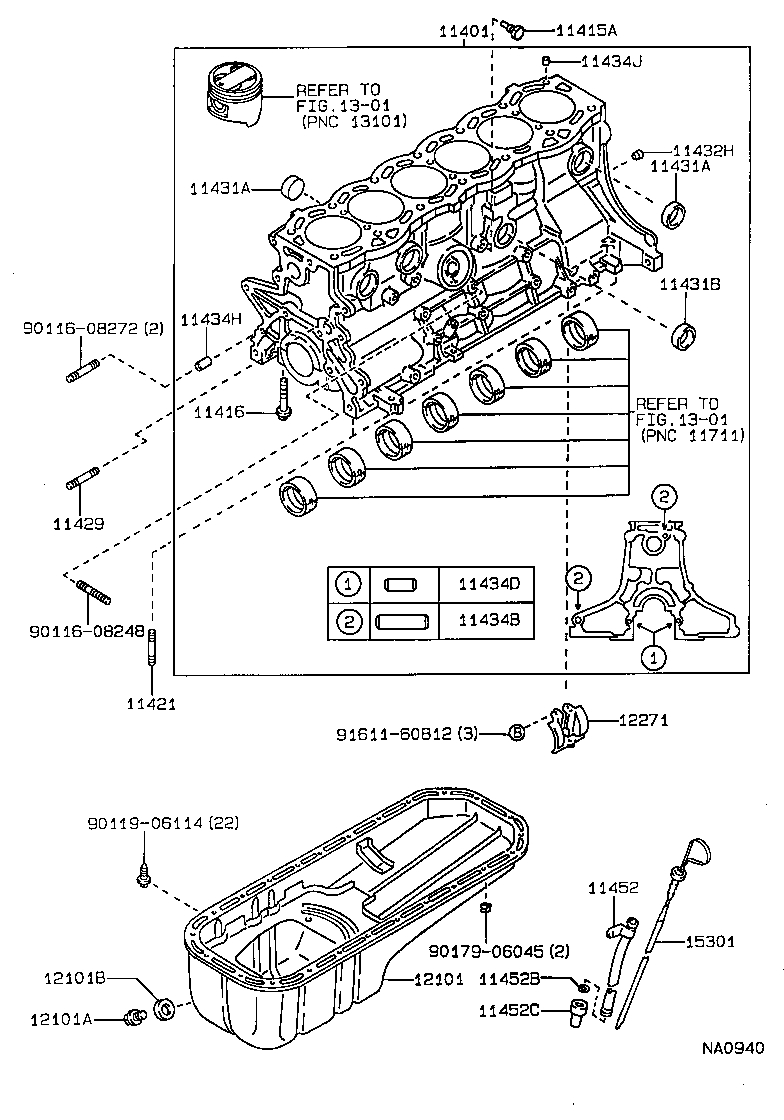

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434J 11452 11452B 11452C 12101 12101A 12101B 12271 1301 1301 15301 9011608248 9011608272 9011906114 9017906045 9161160812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79415

1GFE..GS13#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1GE,1GFE,1GG#..GS13#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1GE,1GFE,1GG#..GS13#

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GFE,1GGP,1GGZE..GS13#

 2
90116-06014

1GE,1GFE,1GG#..GS13#

 2
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-10051

1GE,1GFE,1GGP,1GGE..GS13#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE,1GFE,1GG#..GS13#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE,1GFE,1GG#..GS13#

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1GE,1GFE,1GG#..GS13#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53015

1GE,1GFE,1GG#..GS13#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1GE,1GFE,1GG#..GS13#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1GE,1GFE,1GG#..GS13#

長さ=14,外径=6

 2
90250-06015

1GE,1GFE,1GGZE..GS13#

長さ=11,外径=6

 2
90250-06015

1GE,1GFE,1GG#..GS13#

長さ=11,外径=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1GE,1GFE,1GG#..GS13#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1GE,1GFE,1GG#..GS13#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-70020

1GFE..GS13#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1GFE,1GG#..GS13#

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
90405-10016

1GFE,1GG#..GS13#

 1
12101 - PAN SUB-ASSY, OIL
12101-70021

1GE,1GFE,1GG#..GS13#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1GE,1GFE,1GG#..GS13#

 1
90341-12012

1GFE,1GGP,1GGZE..GS13#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

1GFE,1GGP,1GGZE..GS13#

 1
90430-12019

1GFE,1GGP,1GGZE..GS13#

 1
12271 - SCREEN, OIL SEPARATOR
12271-70010

1GE,1GFE..GS13#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70050

1GFE..GS13#

 1
Common parts
90116-08248
90116-08272
90119-06114
90179-06045
91611-60812
Linked diagrams
1301
