GS130G-AWPJE (1987)
Toyota Crown

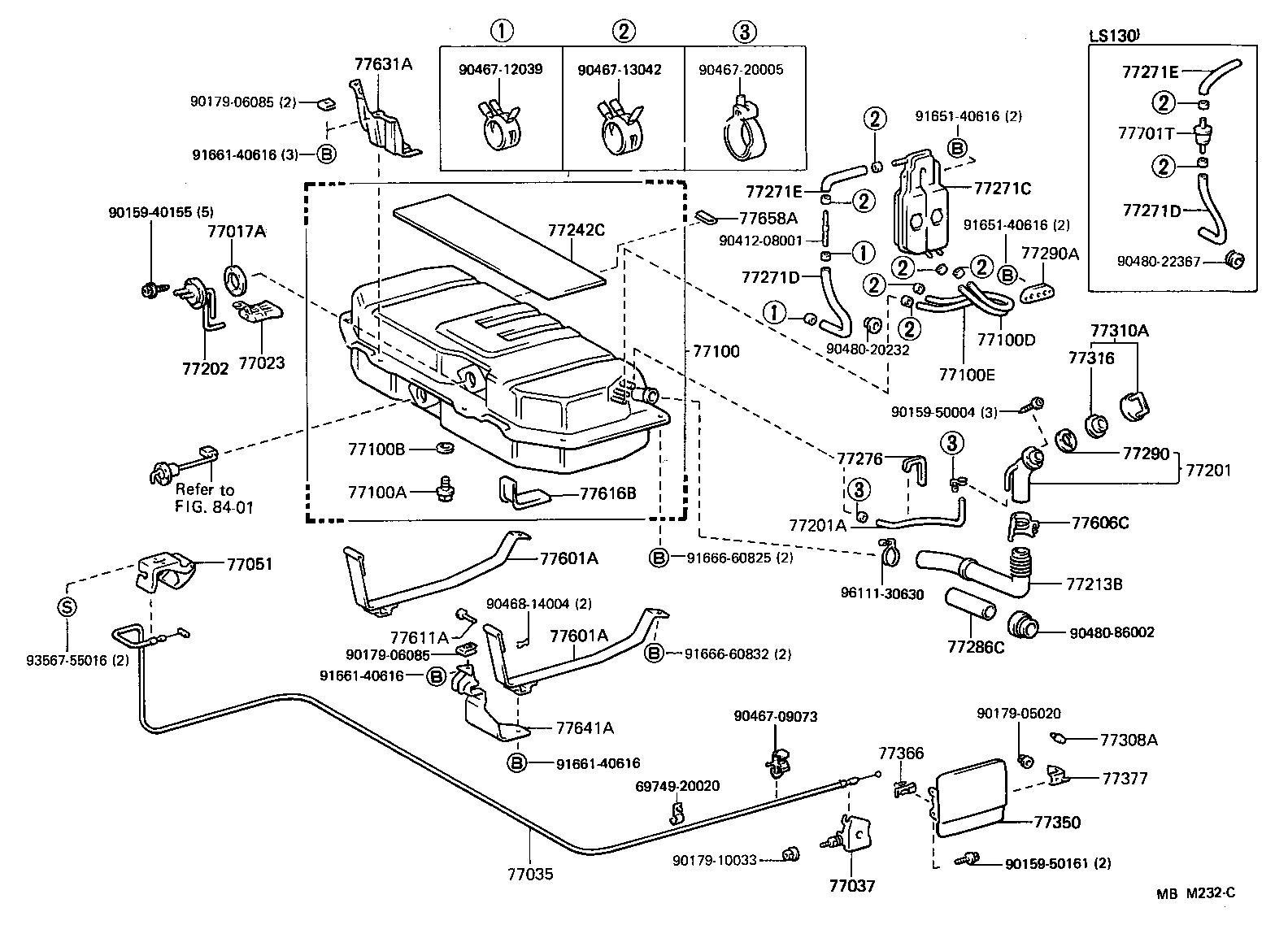

ILLUST NO. 1 OF 2(8709- )GS130,LS130..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017A - GASKET, FUEL TANK VENT | ||||
| 83361-20030 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
GS130,136,JZS130..V,WG |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-91703 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-91701 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 77051-3006006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 77051-3006004 |
GS13#,LS13#,MS135,137 BLUE,TRIM8# |
1 | ||
| 77051-3006004 |
MS137..4HC..WIB;GS13#,LS13#,MS135 BLUE,TRIM8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39225 |
GS130,JZS130,LS130..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
GS130,JZS130,LS130..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
GS130,JZS130,LS130..WG |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-08080 |
GS130,JZS130,LS130..WG |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-14114 |
GS130,JZS130,LS130..WG 長さ=800 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91708 |
GS130,LS130..WG |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22008 |
GS130,JZS130,LS130..WG 長さ=760 |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-91710 |
GS130,JZS130..WG |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-91704 |
GS130,LS130..WG |
1 | ||
| 77242C - PACKING, FUEL TANK SET, UPPER | ||||
| 77242-91501 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-91701 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77271D - HOSE, FUEL, NO.1(FOR FUEL VAPOR LIQUID) | ||||
| 95333-06060 |
GS130,136,JZS130..V,WG |
1 | ||
| 77271D - HOSE, FUEL, NO.1(FOR FUEL VAPOR LIQUID) | ||||
| 95333-06060 |
GS130,136,JZS130..V,WG |
1 | ||
| 77271E - HOSE, FUEL, NO.2(FOR FUEL VAPOR LIQUID) | ||||
| 95333-08020 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77271E - HOSE, FUEL, NO.2(FOR FUEL VAPOR LIQUID) | ||||
| 95333-08020 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-91701 |
GS130,JZS130,LS130..WG |
1 | ||
| 77286C - PROTECTOR, FUEL TANK INLET HOSE | ||||
| 77286-91501 |
GS130,136,LS13#..V,WG |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-22030 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77290A - GROMMET ASSY, FUEL HOSE | ||||
| 77290-91701 |
GS130,JZS130,LS130..WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
GS130,136,JZS130,LS130,136..V,WG |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS13#,JZS13#,MS135,137,UZS131..EFI,HTWC,SPC,TWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-91704 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77602-91703 |
GS130,JZS130,LS130..WG |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77602-91703 |
GS130,JZS130,LS130..WG |
2 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-91701 |
GS130,LS130..WG |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
GS130,LS130..WG |
2 | ||
| 77616B - PACKING, FUEL TANK SET | ||||
| 77616-91701 |
GS130,JZS130,LS130..WG |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-91702 |
GS130,JZS130,LS130..WG |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-91702 |
GS130,JZS130,LS130..WG |
1 | ||
| Common parts | ||||
| 69749-20020 | ||||
| 90159-40155 | ||||
| 90159-50004 | ||||
| 90159-50161 | ||||
| 90179-05020 | ||||
| 90179-06085 | ||||
| 90179-10033 | ||||
| 90412-08001 | ||||
| 90467-09073 | ||||
| 90467-12039 | ||||
| 90467-13042 | ||||
| 90467-20005 | ||||
| 90468-14004 | ||||
| 90480-20232 | ||||
| 90480-22367 | ||||
| 90480-86002 | ||||
| 91651-40616 | ||||
| 91661-40616 | ||||
| 91666-60825 | ||||
| 91666-60832 | ||||
| 93567-55016 | ||||
| 96111-30630 | ||||
| Linked diagrams | ||||
| 8401 | ||||

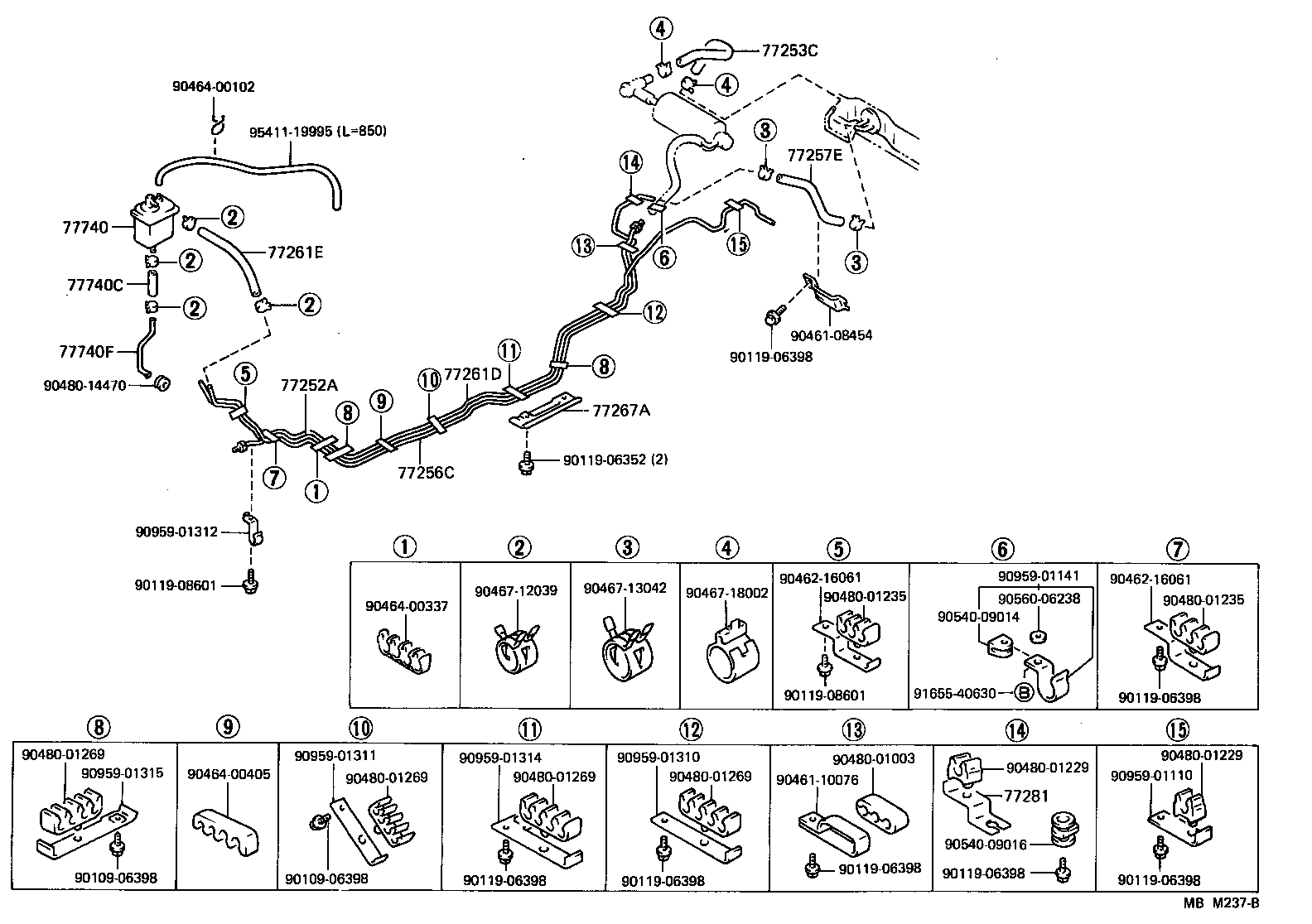

ILLUST NO. 2 OF 2(8709-8908)GS130..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-91703 |
GS130,JZS130..WG |
1 | ||
| 77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-91709 |
GS130,JZS130..WG |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-91703 |
GS130,JZS130..WG |
1 | ||
| 77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77279-91701 |
GS130,JZS130..WG |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-91702 |
GS130,JZS130..WG |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
GS130,136,JZS130..V,WG *H,L=300 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-91701 |
GS130,JZS130..WG |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30130 |
GS13#,JZS13#,MS135,137..EFI,HTWC,SPC,TWC |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12119 |
GS130,136;GS131..HTWC,SPC,TWC 長さ=100 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-30020 |
GS13#,JZS13#,MS135,137,UZS131..EFI,HTWC,SPC,TWC |
1 | ||
| Common parts | ||||
| 90109-06398 | ||||
| 90119-06352 | ||||
| 90119-06398 | ||||
| 90119-08601 | ||||
| 90461-08454 | ||||
| 90461-10076 | ||||
| 90462-16061 | ||||
| 90464-00102 | ||||
| 90464-00337 | ||||
| 90464-00405 | ||||
| 90467-12039 | ||||
| 90467-13042 | ||||
| 90467-18002 | ||||
| 90480-01003 | ||||
| 90480-01229 | ||||
| 90480-01235 | ||||
| 90480-01269 | ||||
| 90480-14470 | ||||
| 90540-09014 | ||||
| 90540-09016 | ||||
| 90560-06238 | ||||
| 90959-01110 | ||||
| 90959-01141 | ||||
| 90959-01310 | ||||
| 90959-01311 | ||||
| 90959-01312 | ||||
| 90959-01314 | ||||
| 90959-01315 | ||||
| 91655-40630 | ||||
| 95411-19995 | ||||
