GS130G-AWPJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)WG

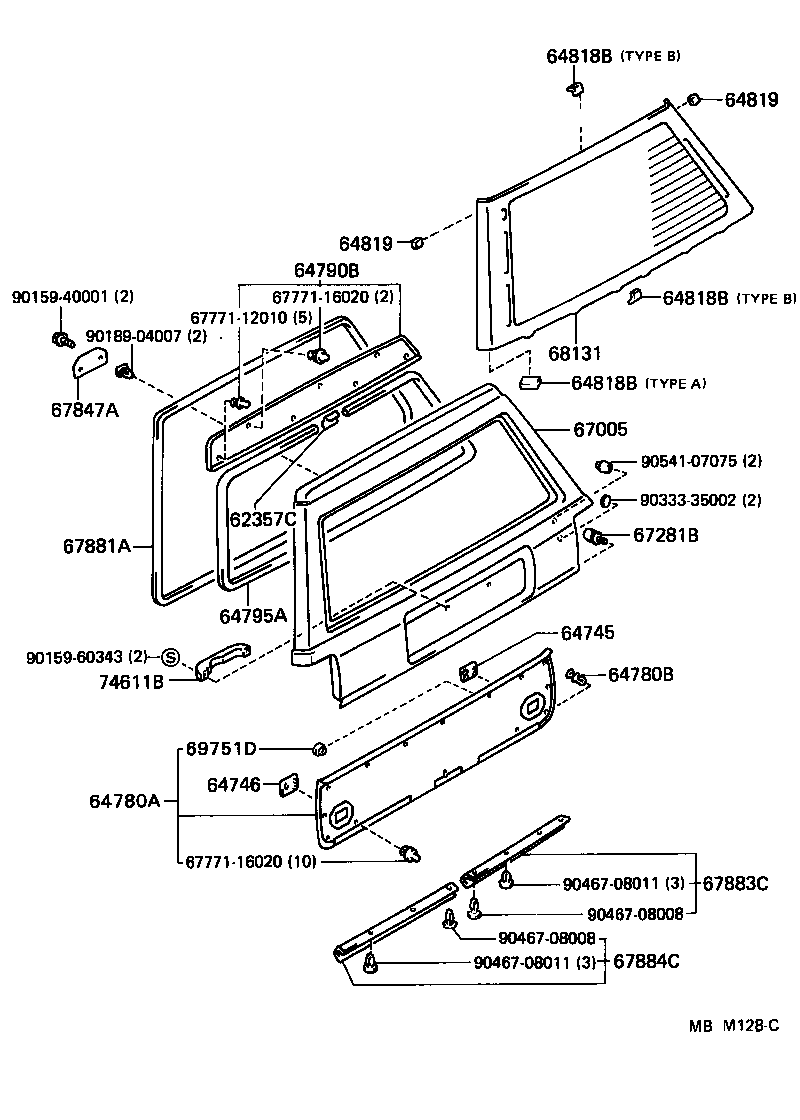

Click highlighted areas on diagram

diagram 62357C 64745 64746 64780A 64780B 64790B 64795A 64818B 64818B 64818B 64819 64819 67005 67281B 6777112010 6777116020 6777116020 67847A 67881A 67883C 67884C 68131 69751D 74611B 9015940001 9015960343 9018904007 9033335002 9046708008 9046708008 9046708011 9046708011 9054107075
Part # Description Qty Price
62357C - COVER, BACK WINDOW INSIDE TRIM
62357-9170316

GS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
62357-9170314

GS130,LS130..WG

BLUE,TRIM8#

 1
62357-9170312

GS130,LS130..WG

MAROON,TRIM3#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-9170106

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
64745-9170102

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
64745-9170104

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64745-9170102

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
64745-9170106

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
64745-9170104

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
64780A - PANEL ASSY, BACK DOOR TRIM
64780-9172104

GS130,LS130..WG..SALEX

BLUE,TRIM8#

 1
64780-9172102

GS130,LS130..WG..SALEX

MAROON,TRIM3#

 1
64780-9172106

GS130,LS130..WG..SALEX

SABLE,TRIM4#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-0811432

GS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)

MAROON,TRIM3#

 6
90467-0811438

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 6
90467-0811454

GS130,136,JZS130,LS130,136..V,WG

BLUE,TRIM8#

 6
64790B - PANEL ASSY, BACK DOOR TRIM, UPPER
64790-9170204

GS130,LS130..WG..(ROY,SALEX)

BLUE,TRIM8#

 1
64790-9170206

GS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM3#,4#

 1
64795A - TRIM, BACK WINDOW OPENING
64795-9170102

GS130,LS130..WG

MAROON,TRIM3#

 1
64795-9170116

GS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
64795-9170304

GS130,LS130..WG

BLUE,TRIM8#

 1
64795-9170302

GS130,LS130..WG

MAROON,TRIM3#

 1
64795-9170306

GS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
64795-9170114

GS130,LS130..WG

BLUE,TRIM8#

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-91702

GS130,LS130..WG

ﾀｲﾌﾟ B

 2
64818-91701

GS130,JZS130,LS130..WG

ﾀｲﾌﾟ A

 2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-91702

GS130,LS130..WG

ﾀｲﾌﾟ B

 2
64818-91701

GS130,JZS130,LS130..WG

ﾀｲﾌﾟ A

 2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-91702

GS130,LS130..WG

ﾀｲﾌﾟ B

 2
64818-91701

GS130,JZS130,LS130..WG

ﾀｲﾌﾟ A

 2
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-91701

GS130,JZS130,LS130..WG

ﾀｲﾌﾟ A

 2
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-91701

GS130,JZS130,LS130..WG

ﾀｲﾌﾟ A

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-91786

GS130,LS130..WG..(ROY,SALEX)

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-91605

GS130,136,JZS130,LS130,136..V,WG

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-91255

GS130,136,JZS130,LS130,136..V,WG

 1
67883C - WEATHERSTRIP, BACK DOOR, LOWER RH
67883-91701

GS130,136,JZS130,LS130,136..V,WG

 1
67884C - WEATHERSTRIP, BACK DOOR, LOWER LH
67884-91701

GS130,136,JZS130,LS130,136..V,WG

 1
68131 - GLASS, BACK DOOR
68105-91716

GS130,LS130..WG

*EHTT,厚さ=4.0

 1
68105-91717

GS130,LS130..WG..(ROY,SALEX)

*EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)
69751-9170116

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
69751-9170114

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
69751-9170112

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
74611B - GRIP, ASSIST
74611-9170112

GS130,JZS130,LS130..WG

MAROON,TRIM3#

 1
74611-9170116

GS130,JZS130,LS130..WG..(ROY,SALEX)

SABLE,TRIM4#

 1
74611-9170114

GS130,JZS130,LS130..WG

BLUE,TRIM8#

 1
Common parts
67771-12010
67771-16020
90159-40001
90159-60343
90189-04007
90333-35002
90467-08008
90467-08011
90541-07075
