GS130G-AWPJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)1GE

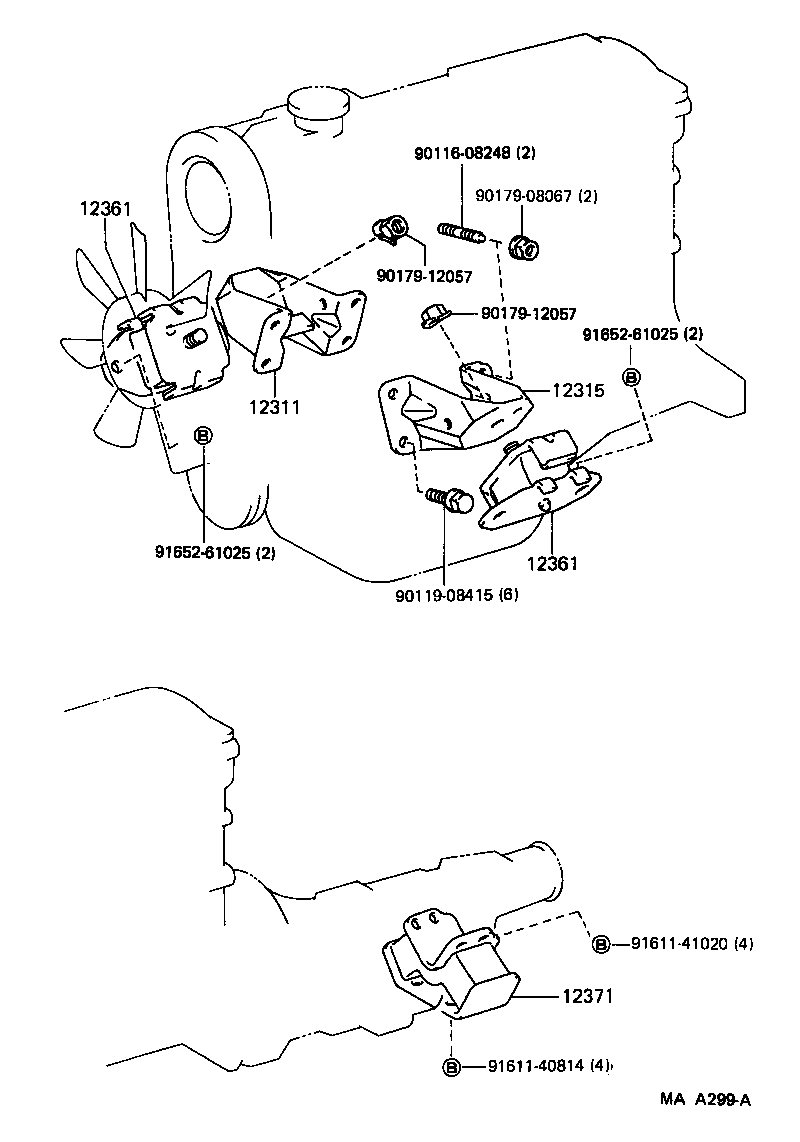

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9011608248 9011908415 9017908067 9017912057 9017912057 9161140814 9161141020 9165261025 9165261025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70060

1GE..GS13#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70040

1GE..GS13#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70110

1GE..GS13#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70110

1GE..GS13#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

1GE,1GFE,1GG#..GS13#

 1
Common parts
90116-08248
90119-08415
90179-08067
90179-12057
91611-40814
91611-41020
91652-61025
